Home >> Jaguar >> 2002 >> XK8 2D Convertible >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Safety Belt System >> Description And Operation >> Notes

Description And Operation: Notes

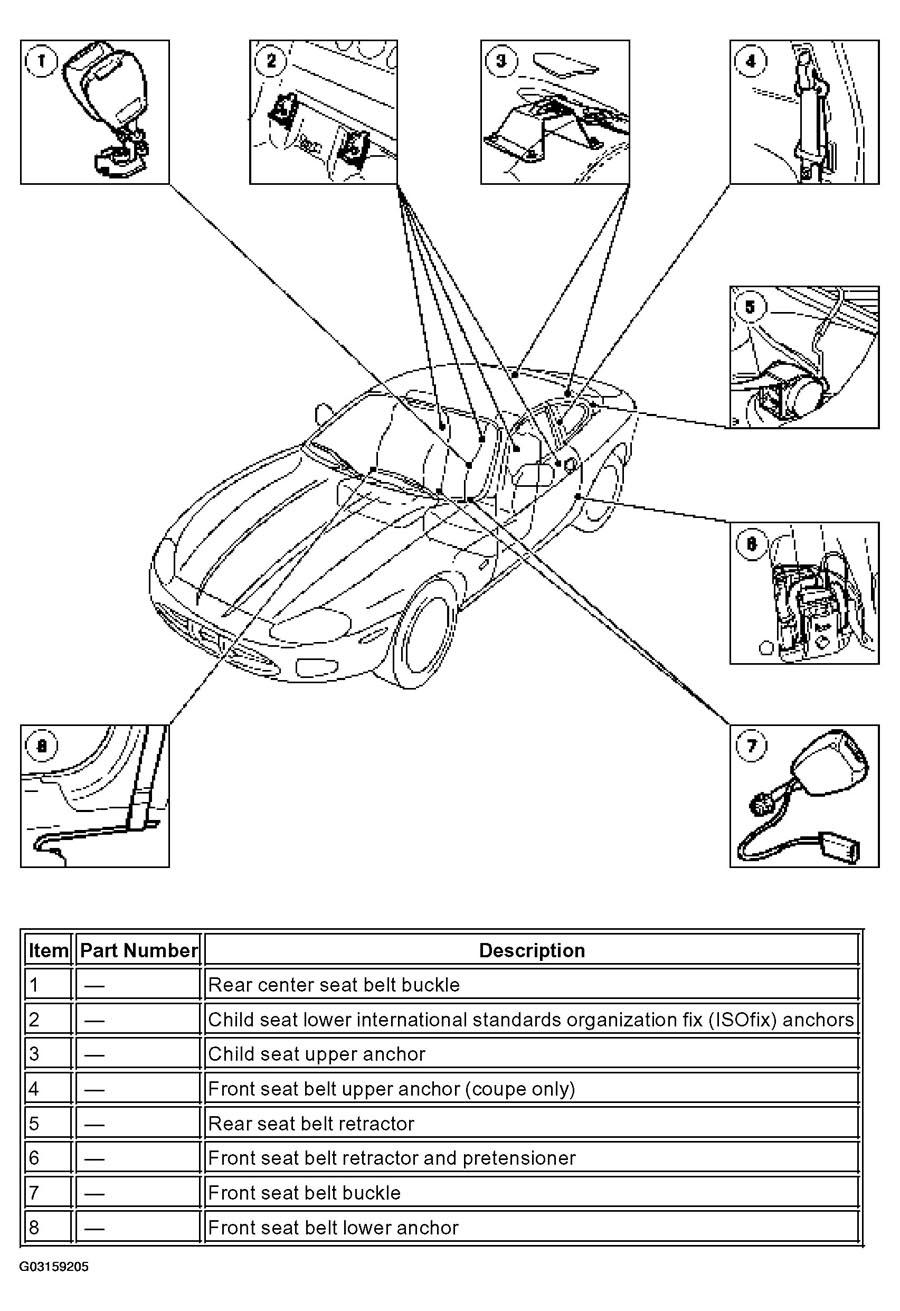

Fig 1: Identifying Safety Belt System Components

G03159205

Courtesy of JAGUAR CARS, INC.
