Passenger Seat Control Module Connector End View

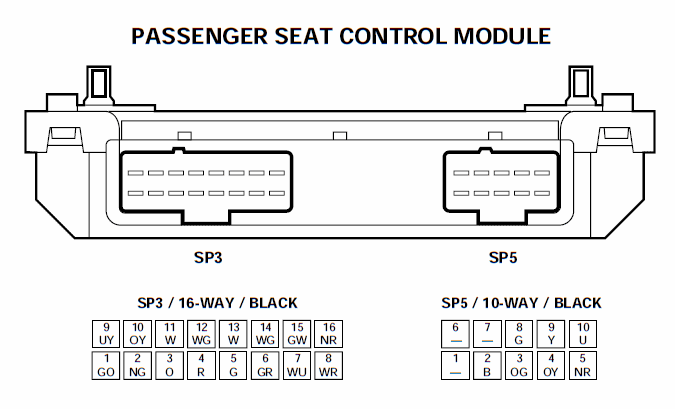

Fig 1: Passenger Seat Control Module Connector End View

G00558712

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
