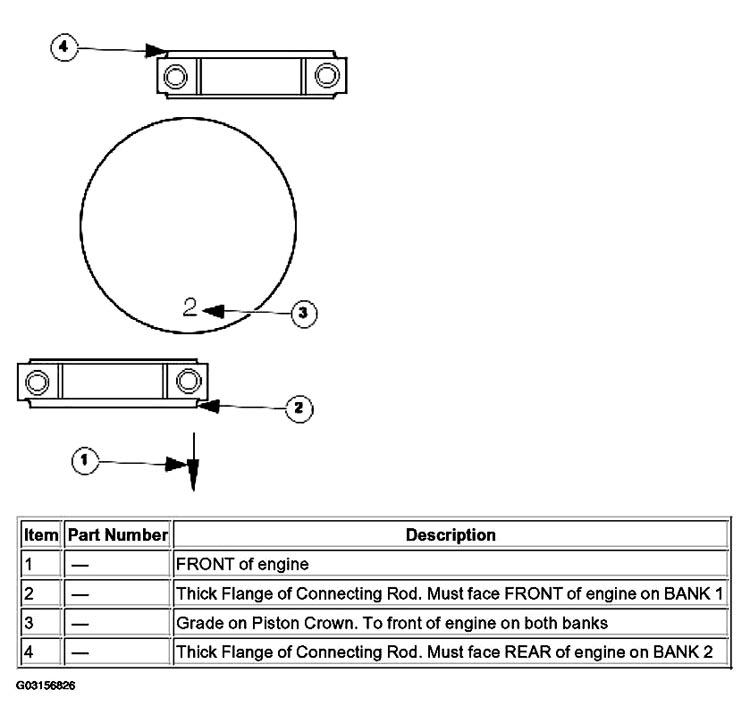

Home >> Jaguar >> 2002 >> XK8 2D Convertible >> Repair and Diagnosis >> General Information >> Engine >> Engine System-General Information >> Description And Operation >> Piston / Connecting Rod Orientation
