Intake Air Temperature (IAT) Sensor: Removal

  1. Disconnect sensor connector at rear of bank 1 charge air cooler.

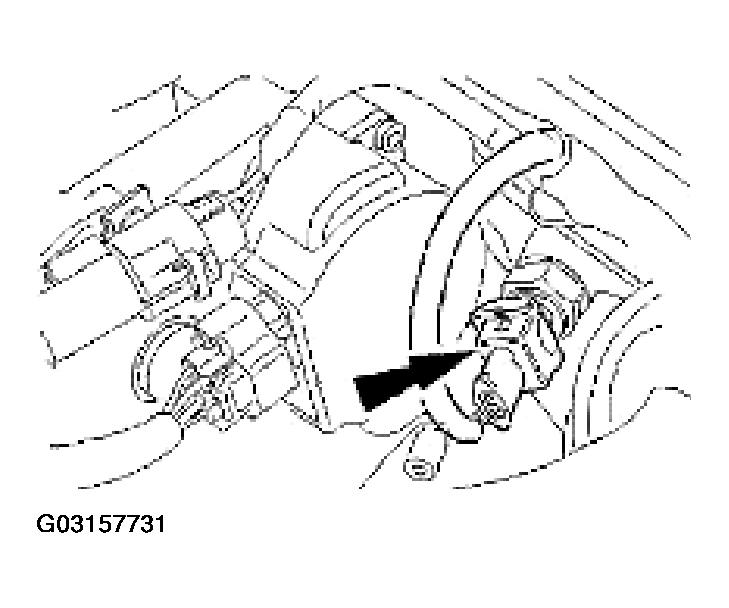

    Fig 1: Disconnecting Intake Air Temperature (IAT) Sensor Connector
    G03157731Courtesy of JAGUAR CARS, INC.
  2. Remove sensor.
    • Remove sensor using a deep socket.
    • Discard sealing washer.

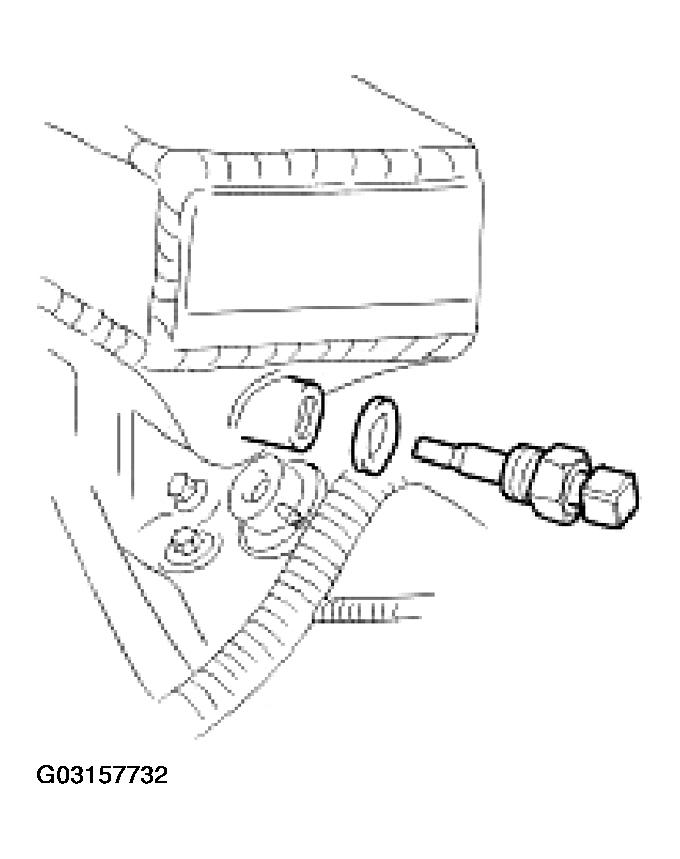

    Fig 2: Removing Intake Air Temperature (IAT) Sensor
    G03157732Courtesy of JAGUAR CARS, INC.
