Ignition Coil-On-Plug RH: Removal

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Remove the air cleaner assembly:
- Remove the 2 bolts which secure the air intake tube to the throttle body. Disconnect the air intake tube from the throttle body.

  Fig 1: Removing Air Intake Tube Bolts
  Courtesy of JAGUAR CARS, INC.
- Release the 5 clips which secure the air cleaner cover.

  Fig 2: Removing Air Cleaner Cover Clips
  Courtesy of JAGUAR CARS, INC.
- Disconnect the breather pipe from the "A" bank valve cover. Remove and discard the "O" ring from the breather pipe. Remove the air intake tube/airflow meter/air cleaner cover assembly.

  Fig 3: Removing Air Intake Tube/Airflow Meter/Air Cleaner Cover Assembly
  Courtesy of JAGUAR CARS, INC.
- Cut and remove the strap which secures the vacuum pipe to the intake manifold elbow.
Remove coil on-plug cover.
- Remove six bolts.
- Remove cover.
- Clean mating faces.

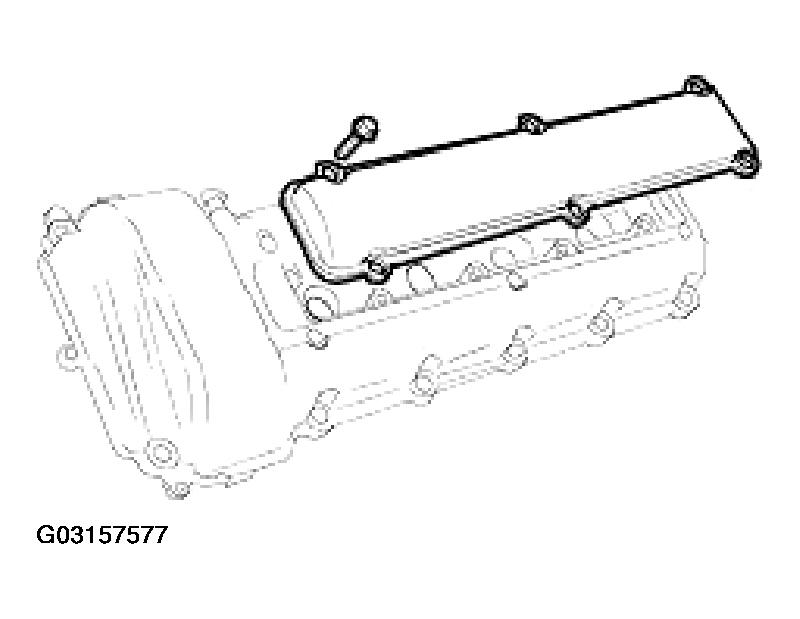

Fig 4: Removing Coil On-Plug Cover (RH)
Courtesy of JAGUAR CARS, INC.
Detach harness from retaining clips as necessary and disconnect relevant coil connector.

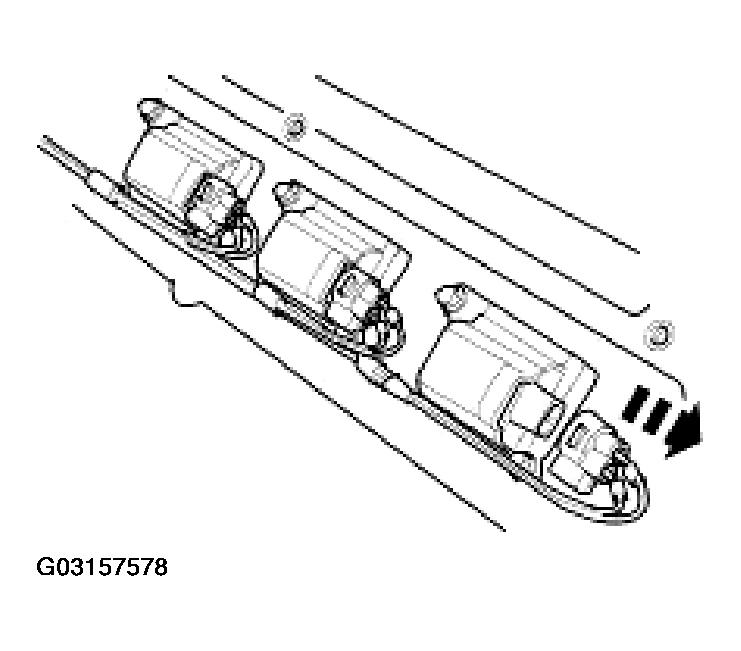

Fig 5: Disconnecting Ignition Coil Connectors
Courtesy of JAGUAR CARS, INC.
Remove relevant ignition coil.
- Remove bolts.
- Remove coil.

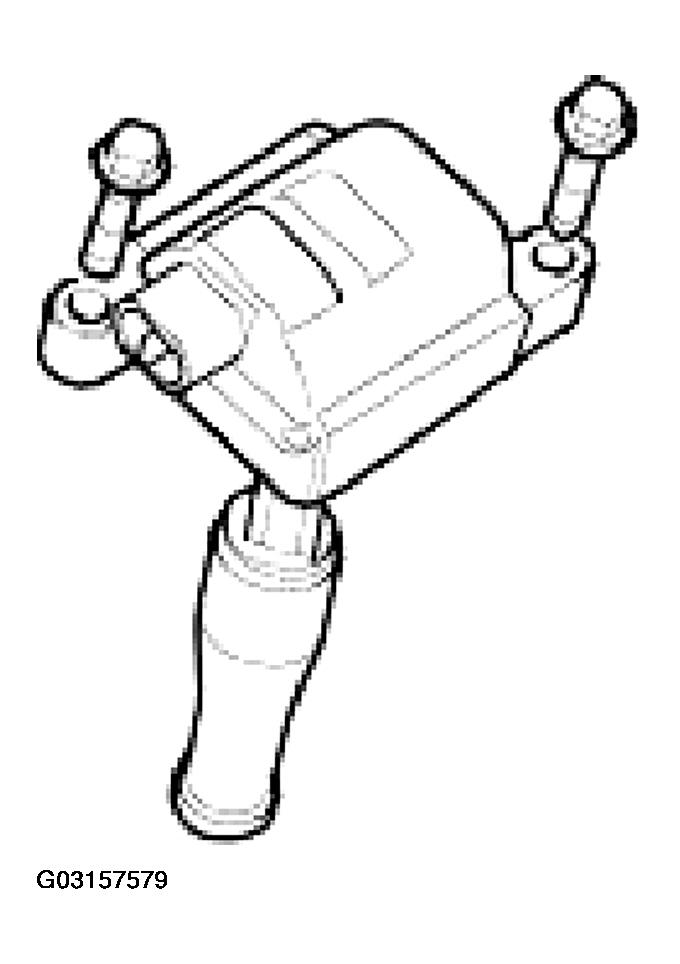

Fig 6: Removing Ignition Coil (RH)
Courtesy of JAGUAR CARS, INC.
