Ignition Coil-On-Plug LH: Removal

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Remove the coolant expansion tank for access.
- Remove screw.
- Position tank aside and secure with suitable tie.

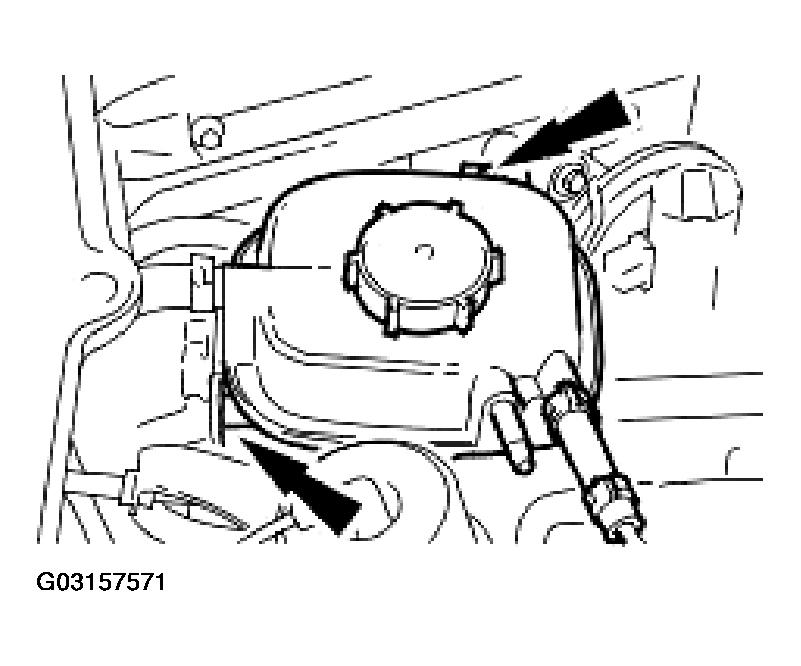

Fig 1: Removing Coolant Expansion Tank For Access
Courtesy of JAGUAR CARS, INC.
Remove coil on-plug cover.
- Remove six bolts.
- Remove cover.
- Clean mating faces.

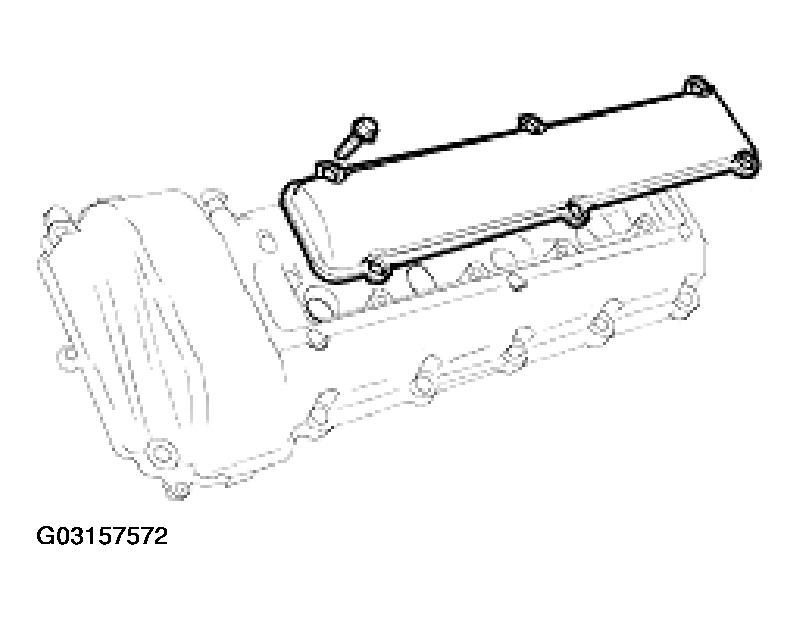

Fig 2: Removing On-Plug Cover (LH)
Courtesy of JAGUAR CARS, INC.
Detach harness from retaining clips as necessary and disconnect relevant coil connector.

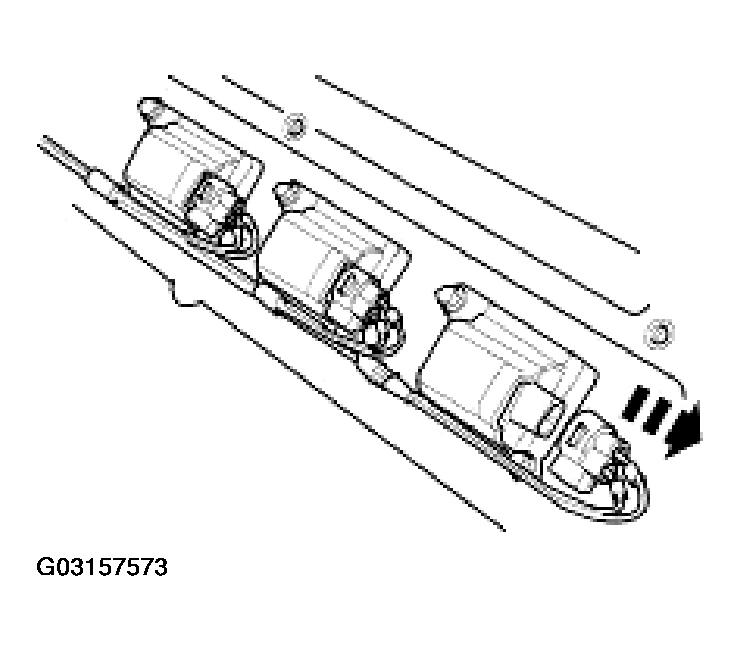

Fig 3: Disconnecting Ignition Coil Connectors
Courtesy of JAGUAR CARS, INC.
Remove relevant ignition coil.
- Remove bolts.
- Remove coil.

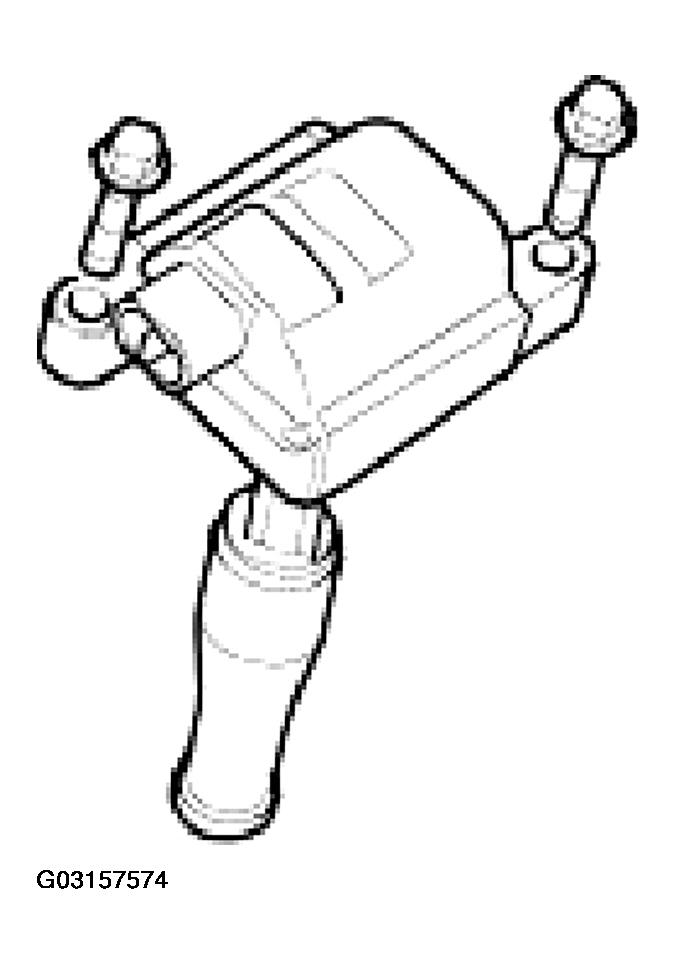

Fig 4: Removing Ignition Coil (LH)
Courtesy of JAGUAR CARS, INC.
