Oil Pump: Removal

Remove the crankshaft inner sprocket. For additional information, refer to CRANKSHAFT INNER SPROCKET .
Remove the right-hand primary timing chain guide.

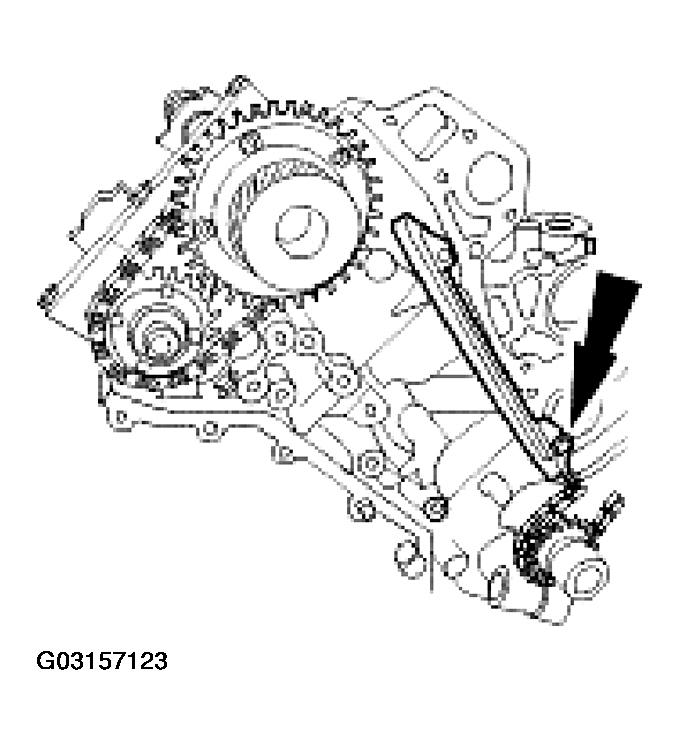

Fig 1: Removing Right-Hand Primary Timing Chain Guide
Courtesy of JAGUAR CARS, INC.
Remove the left-hand primary timing chain guide.

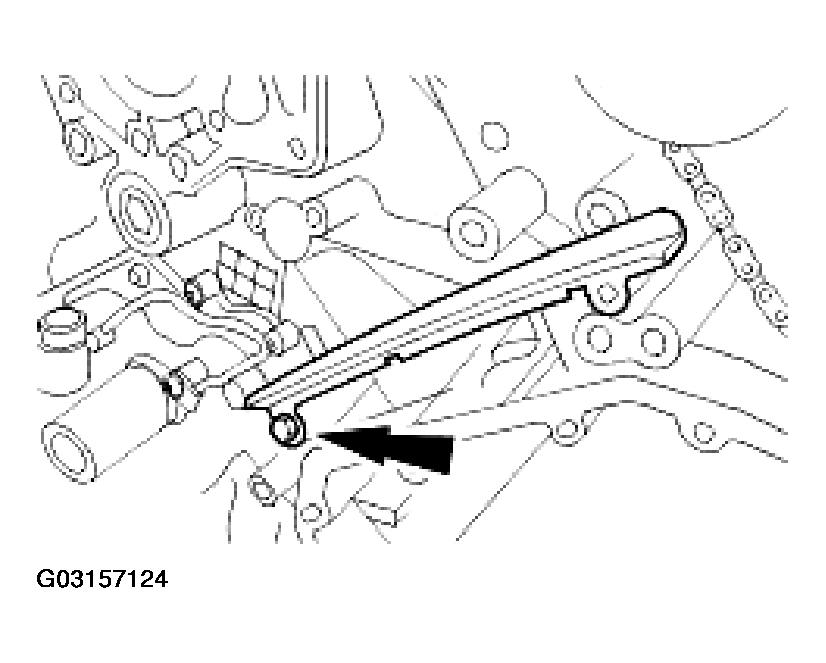

Fig 2: Removing Left-Hand Primary Timing Chain Guide
Courtesy of JAGUAR CARS, INC.
Remove the oil pan. For additional information, refer to OIL PAN .
Remove the oil strainer.
- Remove and discard the O-ring seal.

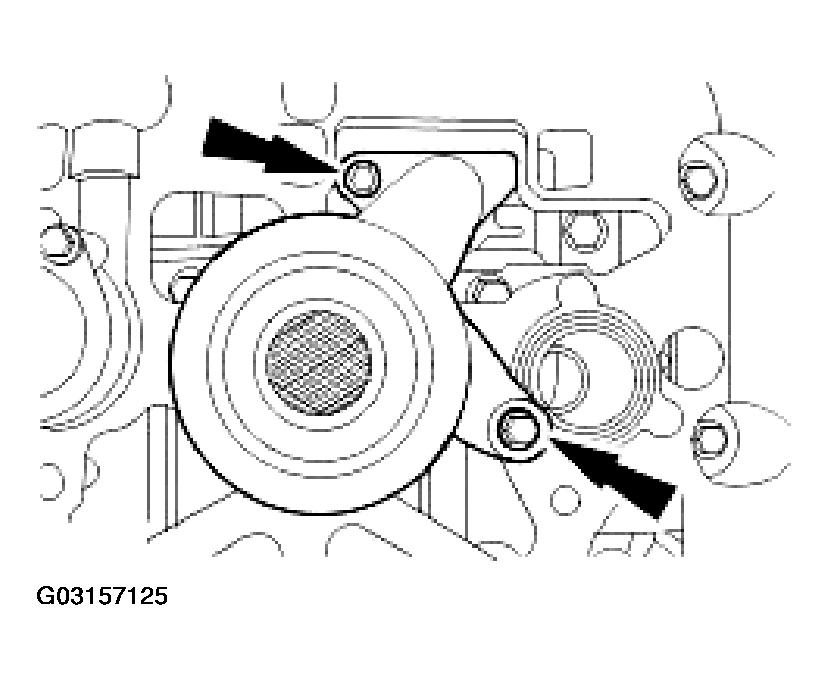

Fig 3: Removing Oil Strainer
Courtesy of JAGUAR CARS, INC.
Remove the oil pump.
- Remove and discard the oil pump gasket.

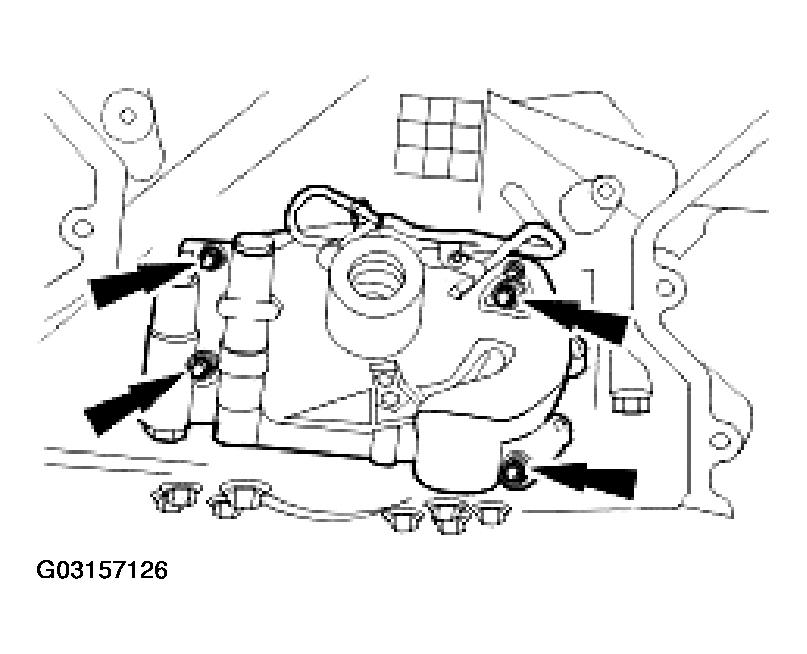

Fig 4: Removing Oil Pump
Courtesy of JAGUAR CARS, INC.
