Oil Pump: Installation

    NOTE: Install a new oil pump gasket.

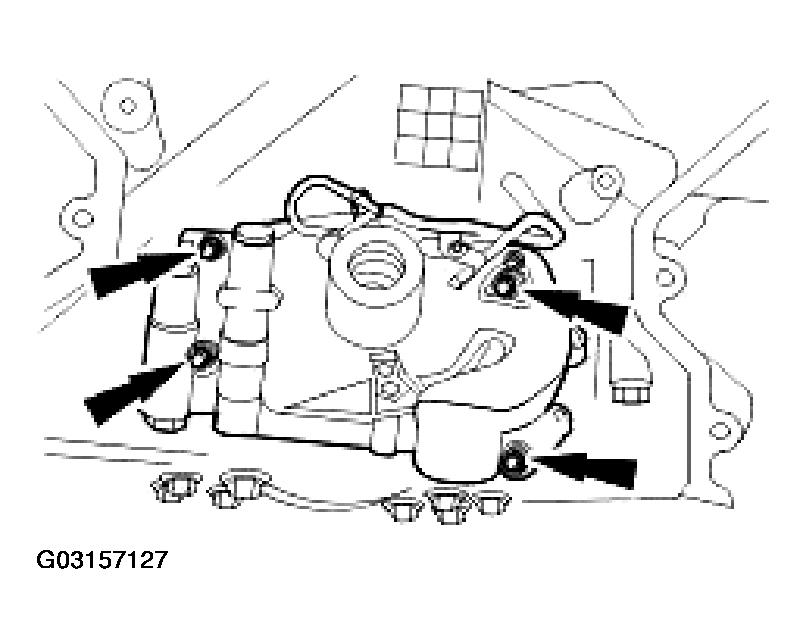

    Fig 1: Installing Oil Pump
    G03157127Courtesy of JAGUAR CARS, INC.
  1. To install, reverse the removal procedure.
    • Tighten to 12 Nm.
    2. NOTE: Install a new oil strainer O-ring seal.

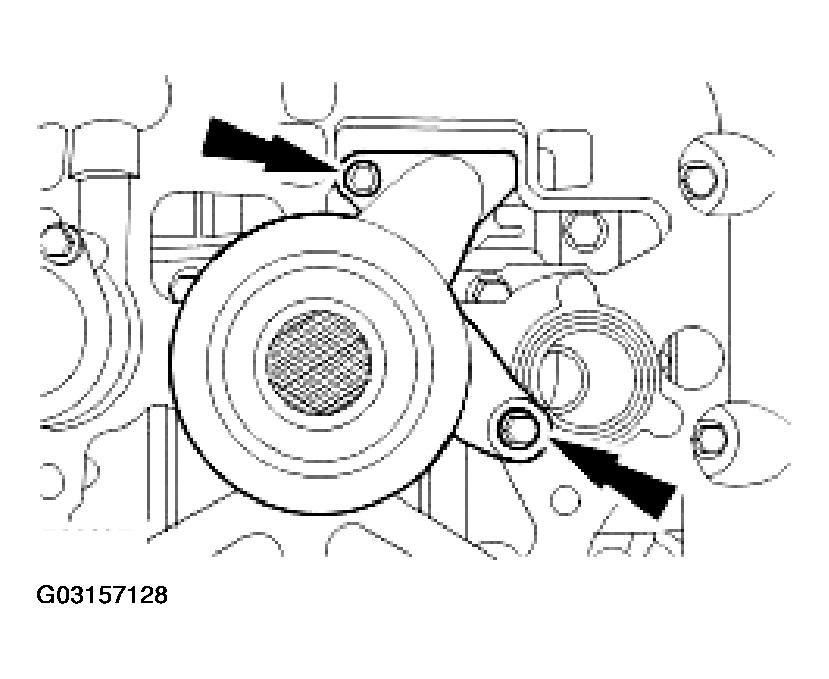

    Fig 2: Installing Oil Strainer O-Ring Seal
    G03157128Courtesy of JAGUAR CARS, INC.
  2. Tighten to 12 Nm.
  3. Tighten to 12 Nm.

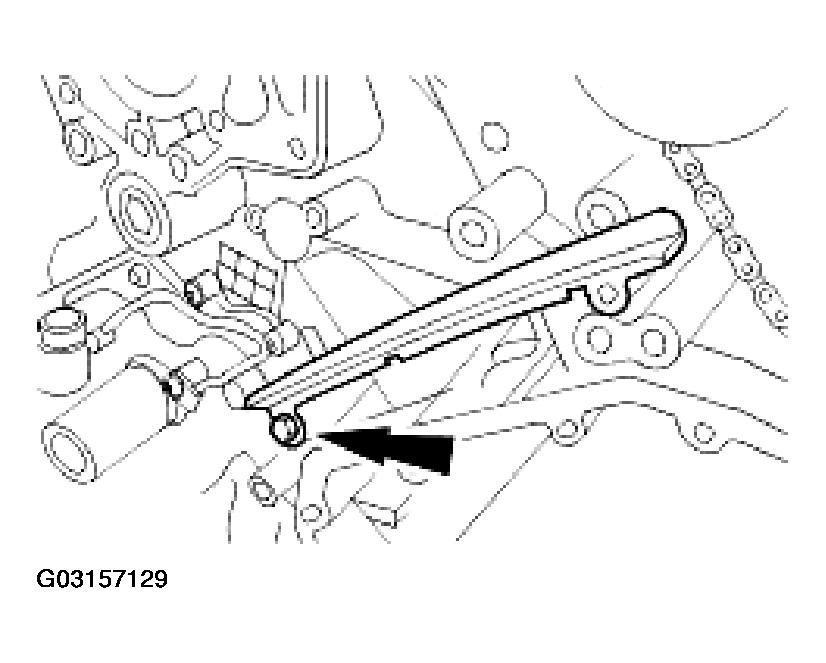

    Fig 3: Installing Left-Hand Primary Timing Chain Guide
    G03157129Courtesy of JAGUAR CARS, INC.
  4. Tighten to 12 Nm.

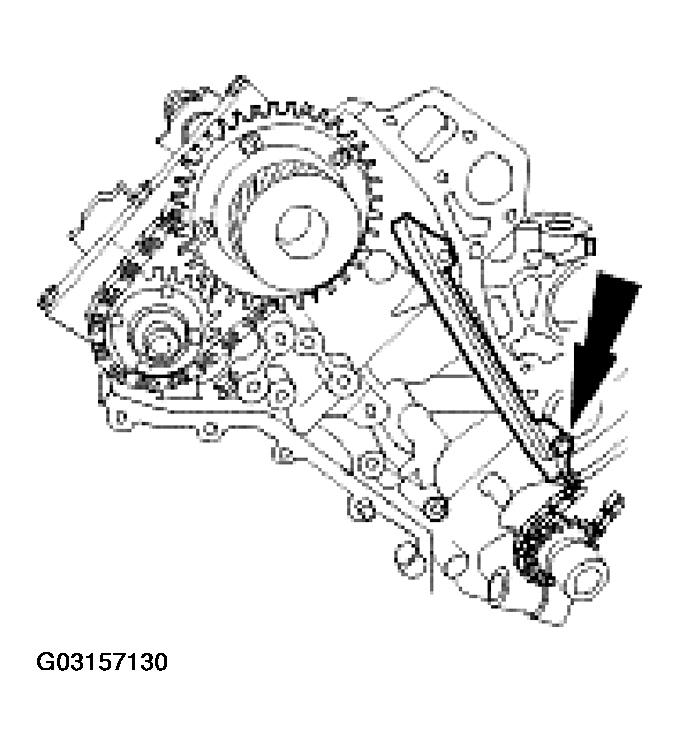

    Fig 4: Installing Right-Hand Primary Timing Chain Guide
    G03157130Courtesy of JAGUAR CARS, INC.
