Oil Pressure Switch: Installation

NOTE: Apply a small bead of sealant meeting Jaguar specification to the first three threads of the oil temperature sensor.

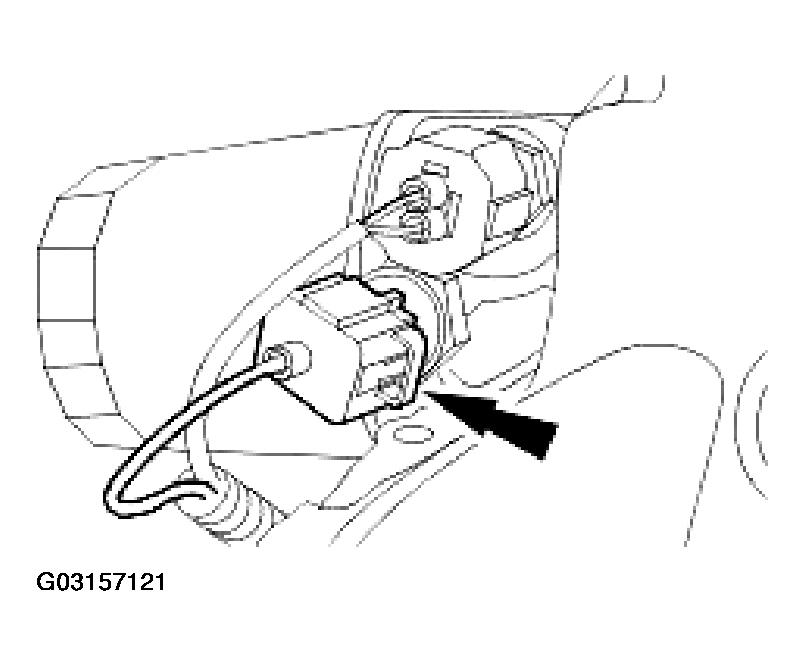

Fig 1: Installing Oil Pressure Switch

Courtesy of JAGUAR CARS, INC.

Install the oil pressure switch.
- Tighten to 15 Nm.
Connect the oil pressure switch electrical connector.

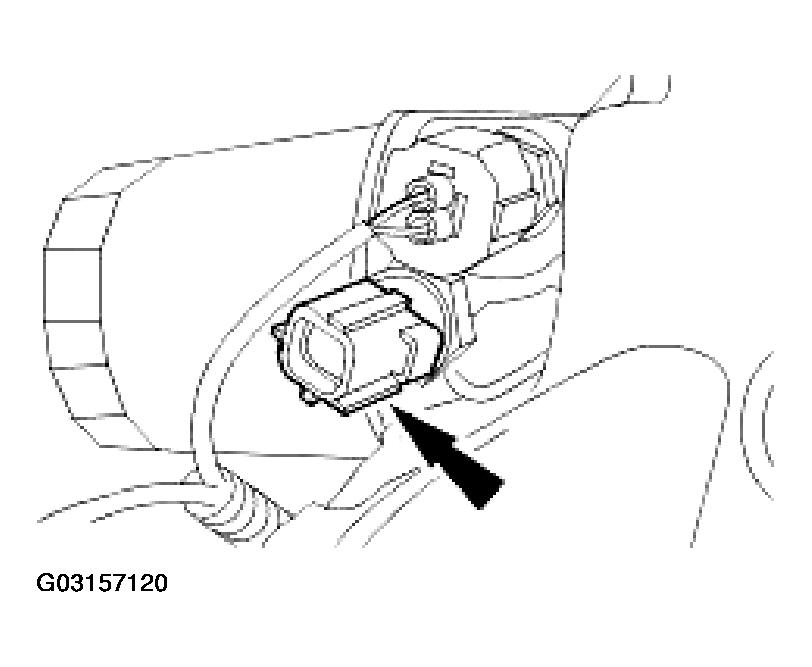

Fig 2: Connecting Oil Pressure Switch Electrical Connector
Courtesy of JAGUAR CARS, INC.
Install the generator lower cooling duct,
- Tighten to 2 Nm.

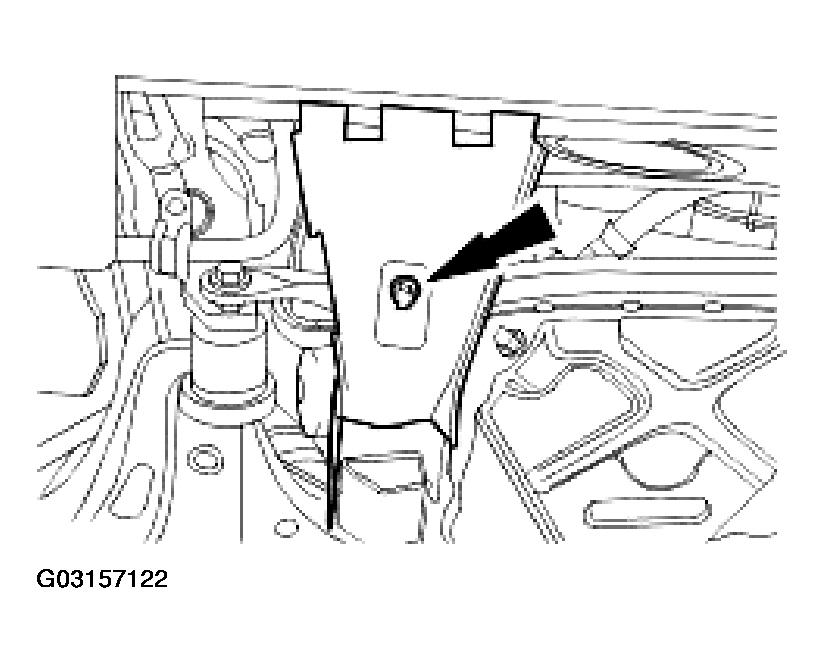

Fig 3: Installing Generator Lower Cooling Duct
Courtesy of JAGUAR CARS, INC.
Lower the vehicle.
Check and, if necessary, top up the engine oil.
