Oil Pan: Removal
- Open the engine compartment and fit paintwork protection sheets.
- Raise the vehicle on a ramp.

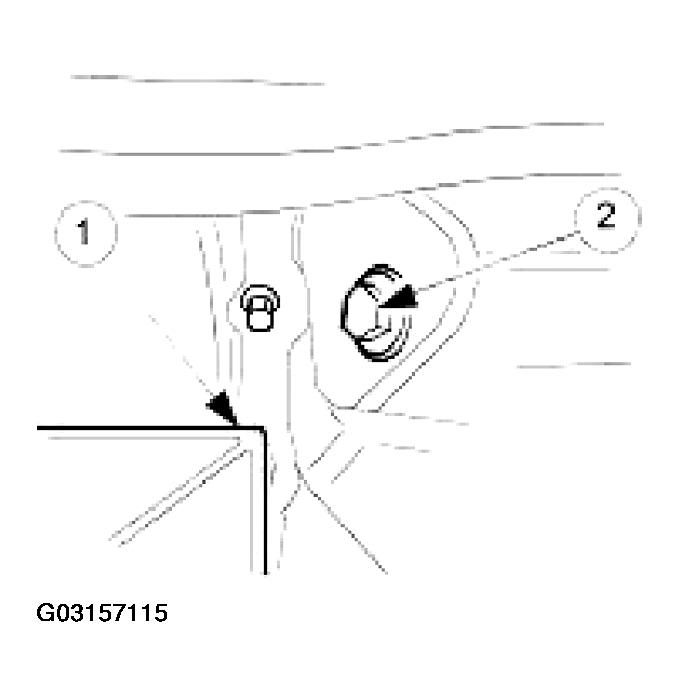

- Drain the engine oil.
- Position the waste oil container. (1)
- Remove the oil pan drain plug and drain the engine oil. (2)
- Wipe the drain plug and refit it, to prevent oil dripping.
- Move the oil container away from the vehicle.
Courtesy of JAGUAR CARS, INC.

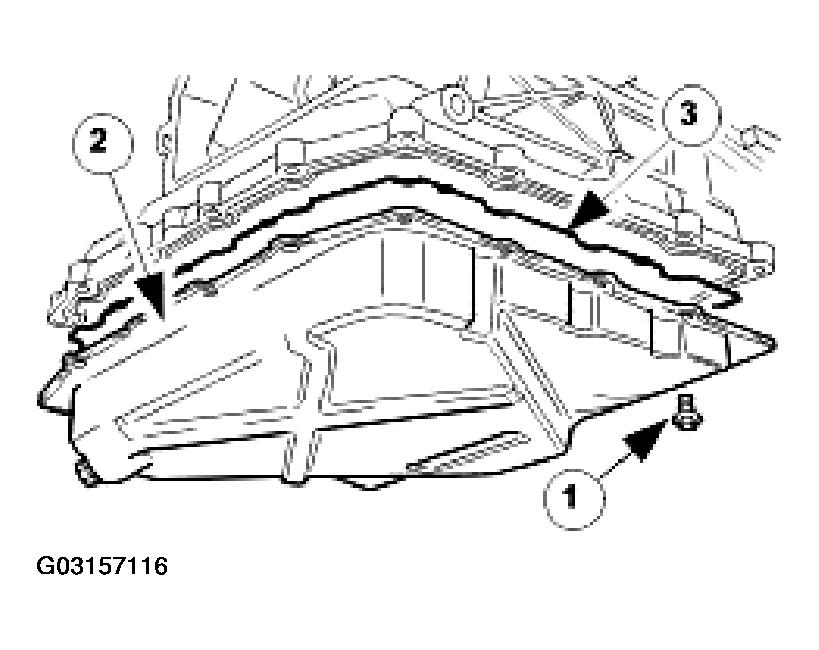

- Remove the oil pan.
- Remove the eighteen bolts which secure the oil pan to the oil pan body. (1)
- Remove the oil pan from the oil pan body. (2)
- Remove the gasket from the oil pan body assembly. (3)
Courtesy of JAGUAR CARS, INC.
- Clean and inspect the sealing faces on the oil pan body assembly.
- Clean and inspect the new oil pan mating face.
