Oil Cooler: Installation

  1. Install the oil cooler.
    • Tighten to 7 Nm.

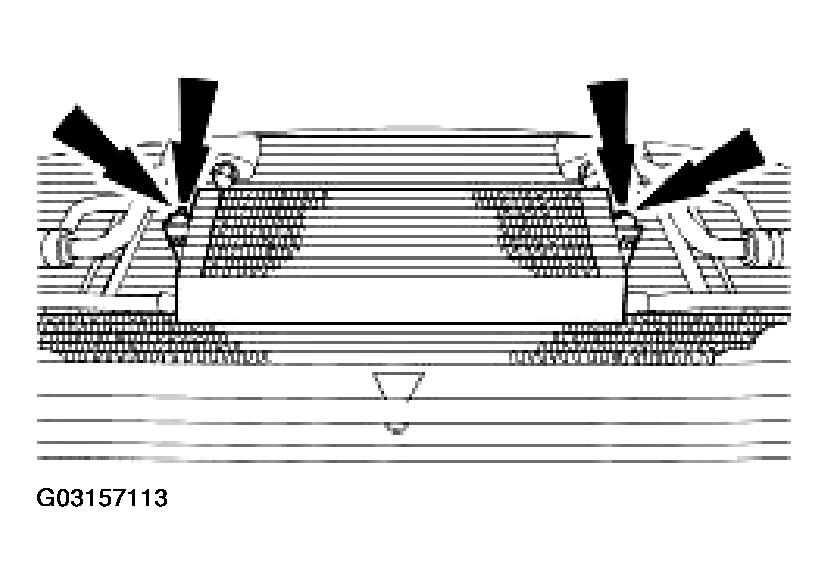

    Fig 1: Installing Oil Cooler
    G03157113Courtesy of JAGUAR CARS, INC.
  2. Attach the oil cooler lines.
    • Install new oil cooler pipe O ring seals.
    • Tighten to 20 Nm.

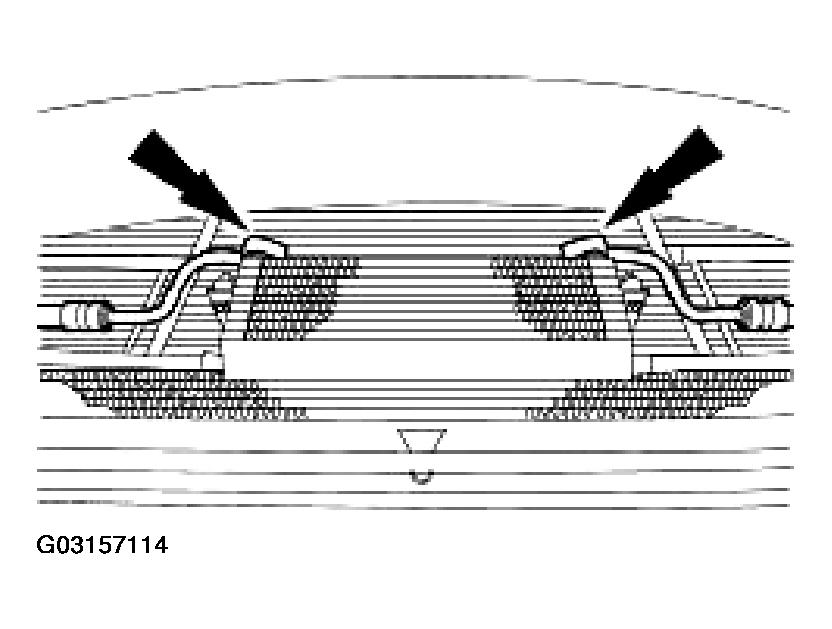

    Fig 2: Installing Oil Cooler
    G03157114Courtesy of JAGUAR CARS, INC.
  3. Check and top up the engine oil level.
