  1. Set the hood to the service access position.
  2. Disconnect the battery ground cable.
  3. Remove the left-hand valve cover. For additional information, refer to VALVE COVER LH .
  4. Remove the right-hand valve cover. For additional information, refer to VALVE COVER RH .
  5. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY - VEHICLES WITHOUT: SUPERCHARGER  or CRANKSHAFT PULLEY - VEHICLES WITH: SUPERCHARGER .
  6. Remove the water pump pulley.

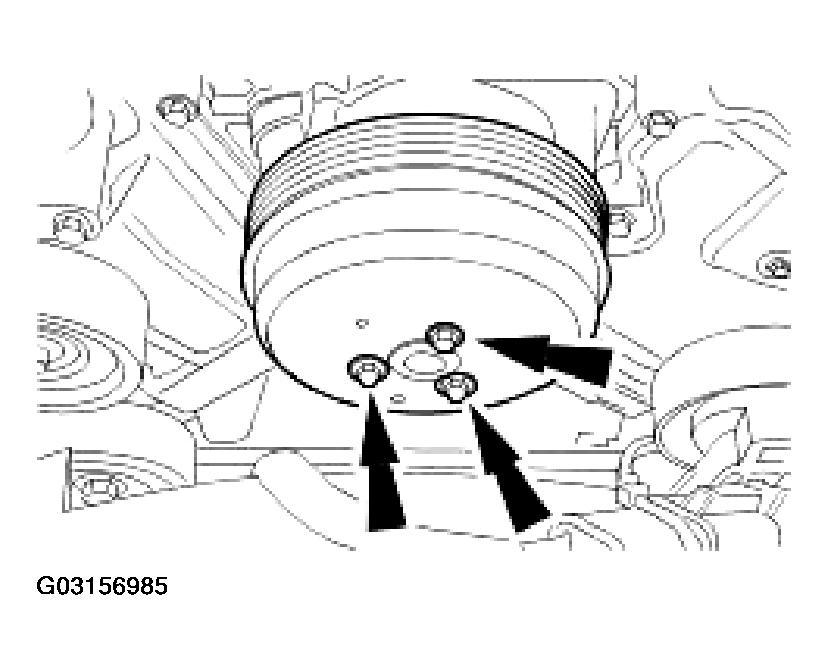

    Fig 1: Removing Water Pump Pulley
    G03156985Courtesy of JAGUAR CARS, INC.
  7. Detach the engine harness from the engine front cover.

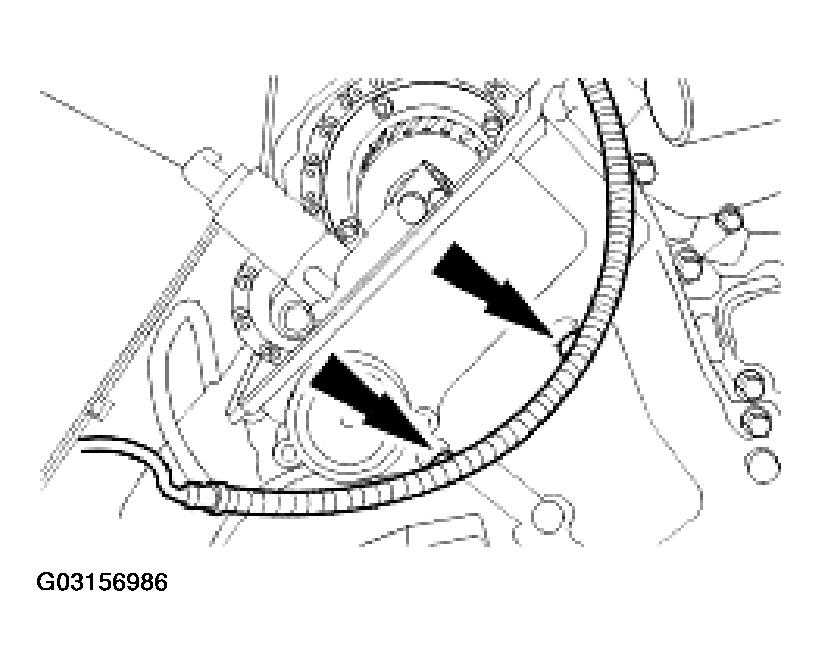

    Fig 2: Detaching Engine Harness From Engine Front Cover
    G03156986Courtesy of JAGUAR CARS, INC.
  8. Remove the accessory drive belt tensioner.
    • Remove the accessory drive belt tensioner retaining bolt. (1)
    • Remove the accessory drive belt tensioner. (2)

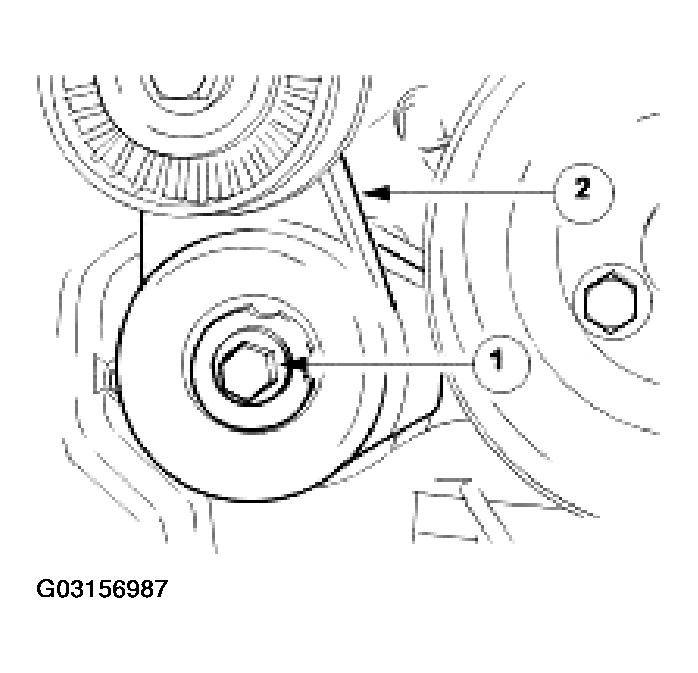

    Fig 3: Removing Accessory Drive Belt Tensioner
    G03156987Courtesy of JAGUAR CARS, INC.


  1. Remove the accessory drive belt idler pulley.

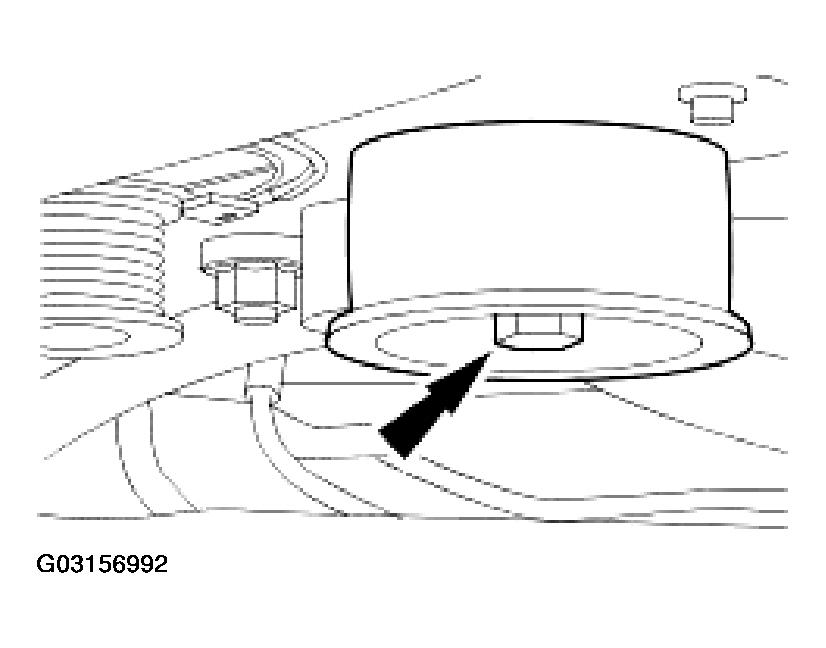

    Fig 1: Removing Accessory Drive Belt Idler Pulley
    G03156992Courtesy of JAGUAR CARS, INC.


  1. Remove the engine front cover.
    • Remove and discard the engine front cover seals.

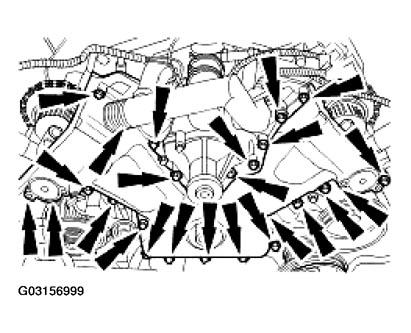

    Fig 1: Removing Engine Front Cover
    G03156999Courtesy of JAGUAR CARS, INC.
