Vehicles without supercharger

  1. Connect the coolant hose.

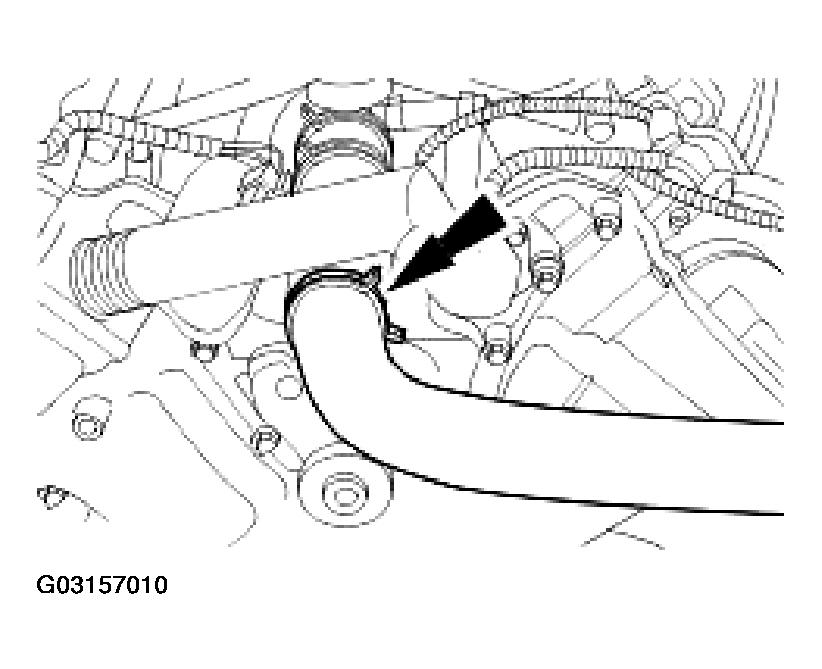

    Fig 1: Connecting Coolant Hose
    G03157010Courtesy of JAGUAR CARS, INC.
  2. Install the radiator upper coolant hose.

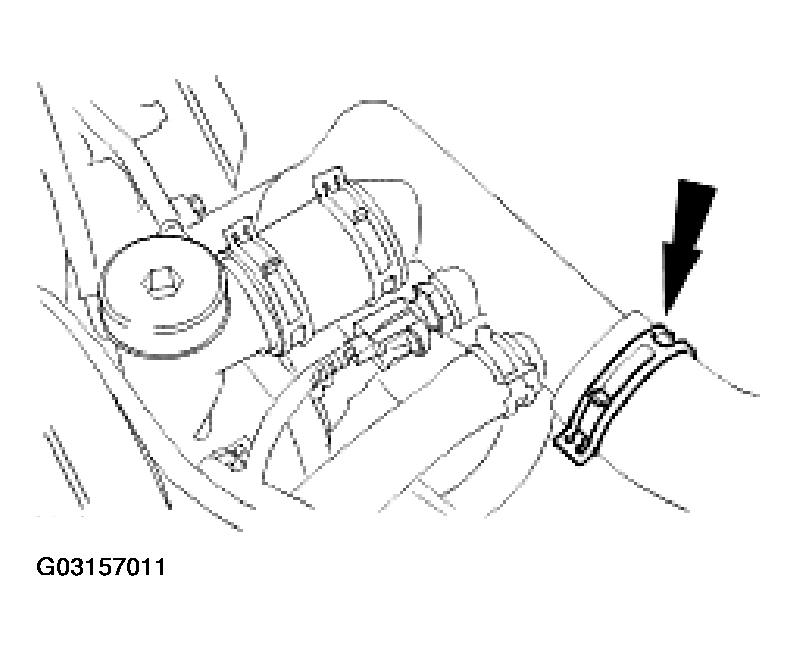

    Fig 2: Installing Radiator Upper Coolant Hose
    G03157011Courtesy of JAGUAR CARS, INC.
  3. Connect the radiator upper coolant hose.

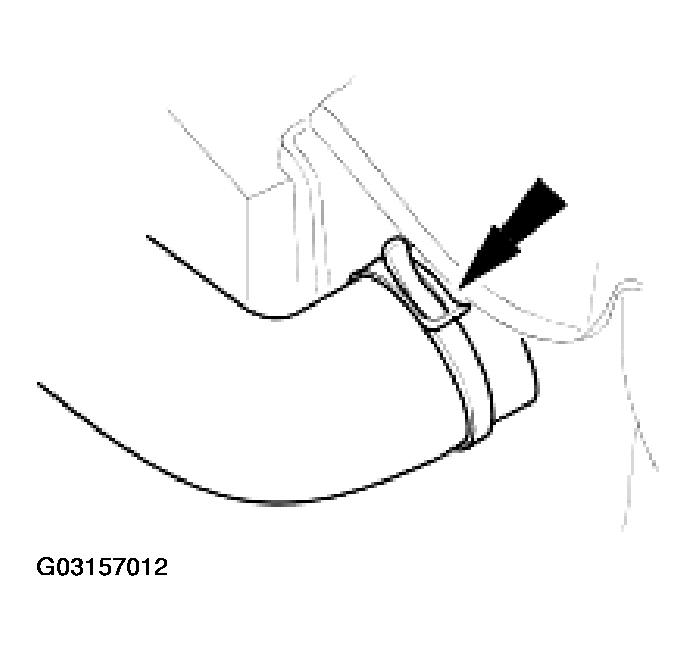

    Fig 3: Connecting Radiator Upper Coolant Hose
    G03157012Courtesy of JAGUAR CARS, INC.


  1. Carry out the cooling system filling procedure. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING - VEHICLES WITHOUT: SUPERCHARGER .
