Downpipe Assembly

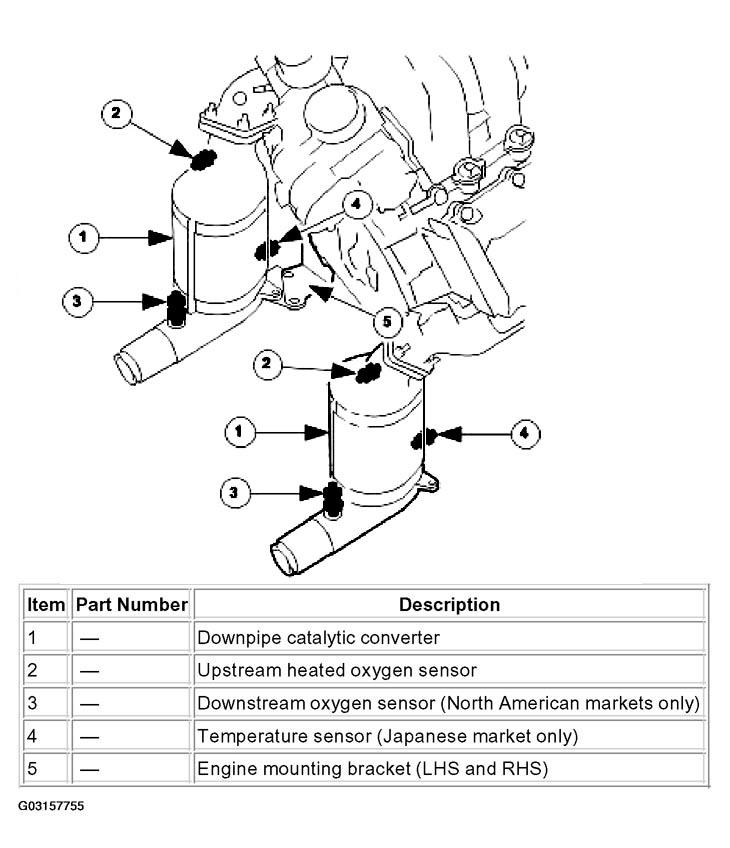

Fig 1: Identifying Components Of Downpipe Assembly

Courtesy of JAGUAR CARS, INC.

The left- and right-hand downpipe assemblies feature:

• Catalytic converter with palladium/rhodium coated elements. The elements are uncoated for markets with only leaded fuel.
• Exhaust manifold fixing by four threaded studs. Joint-to-joint sealing is with a gasket.
• Engine-mounted bracket providing downpipe mounting by two nuts to torque converter and two bolts to downpipe.
