Wheel Speed Sensor Ring: Removal

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used. See THREAD LOCKING DEVICES for information.
  1. Open engine compartment and install paintwork protectors to fenders.
  2. Raise front of vehicle and support on stands. Refer to LIFTING & JACKING .
  3. Remove front wheel. Refer to WHEEL AND TIRE .
  4. Remove front brake disc. Refer to FRONT DISC BRAKE ROTOR .
  5. Remove vertical link and hub assembly. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY .
  6. Remove brake-disc shield from vertical link.
    • Remove screws. (1)
    • Remove disc shield. (2)

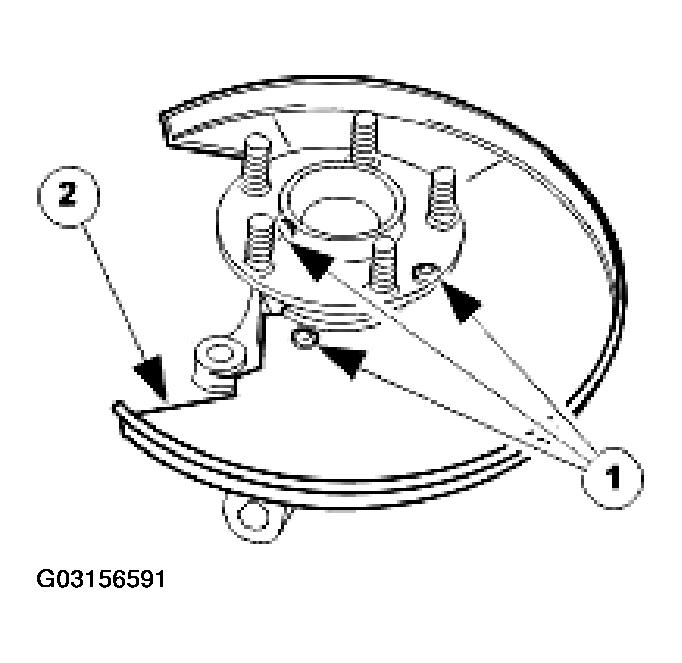

    Fig 1: Removing Brake-Disc Shield
    G03156591Courtesy of JAGUAR CARS, INC.
  7. Using special tool, secure vertical link and hub assembly in a vice.
    • Secure special tool in a vice.
    • Position hub in tool.
    • Install and tighten wheel nuts.

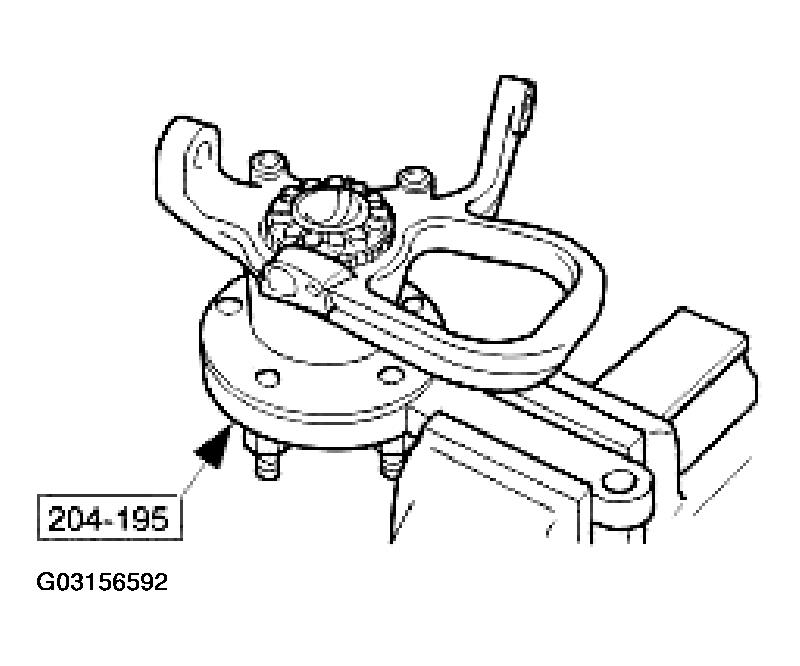

    Fig 2: Securing Vertical Link And Hub Assembly In A Vice
    G03156592Courtesy of JAGUAR CARS, INC.
  8. Remove rotor nut spring-clip.

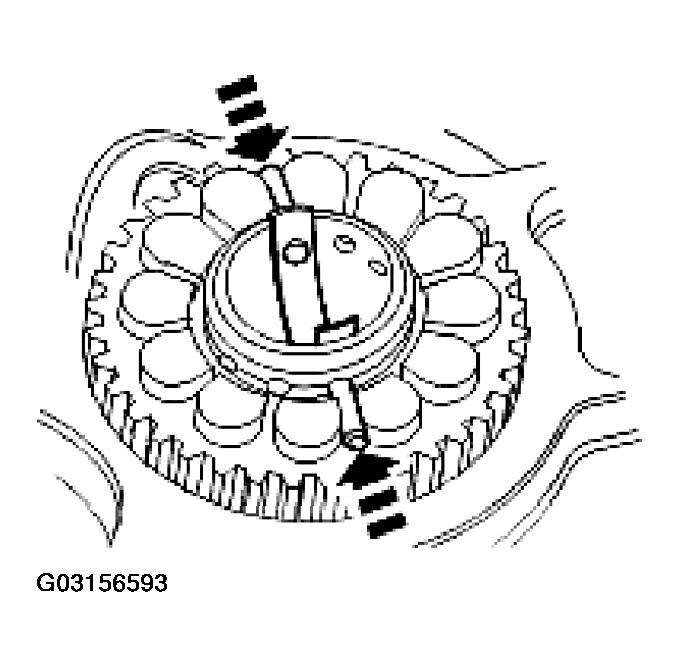

    Fig 3: Removing Rotor Nut Spring-Clip
    G03156593Courtesy of JAGUAR CARS, INC.
  9. Using special tool remove rotor nut.

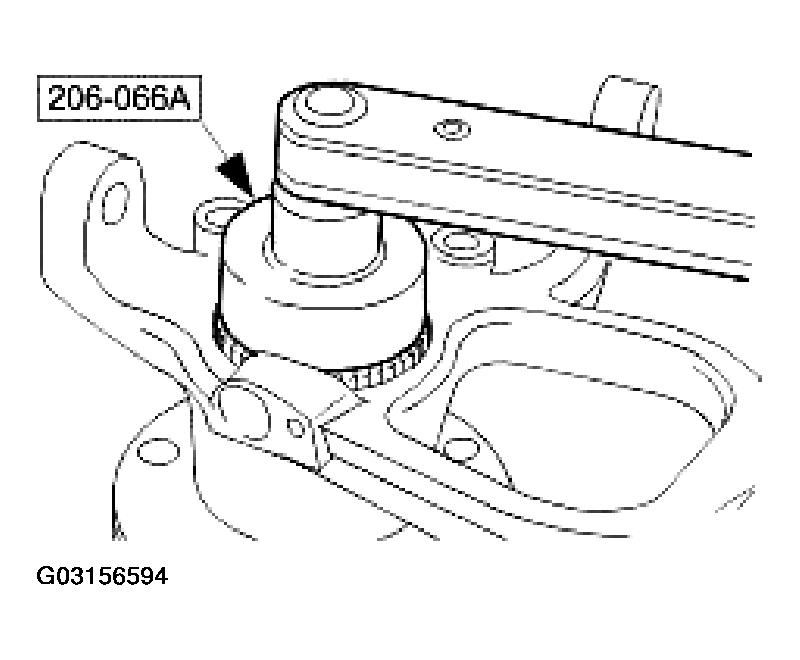

    Fig 4: Removing Rotor Nut
    G03156594Courtesy of JAGUAR CARS, INC.
