Wheel Speed Sensor Ring Grease Deflector: Removal
CAUTION:
Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used. See THREAD LOCKING DEVICES
for information.
NOTE:
The grease deflector ring was fitted to production vehicles at VIN number 018108 and on. Vehicles before this number must befitted with a deflector ring when the rotor nut is removed for repair purposes.
- Open engine compartment and fit paintwork protectors to fenders.
- Raise front of vehicle and support on stands. Refer to LIFTING & JACKING .
- Remove front wheel. Refer to WHEEL AND TIRE .
- Remove front brake disc. Refer to FRONT DISC BRAKE ROTOR .
- Remove vertical link and hub assembly. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY .

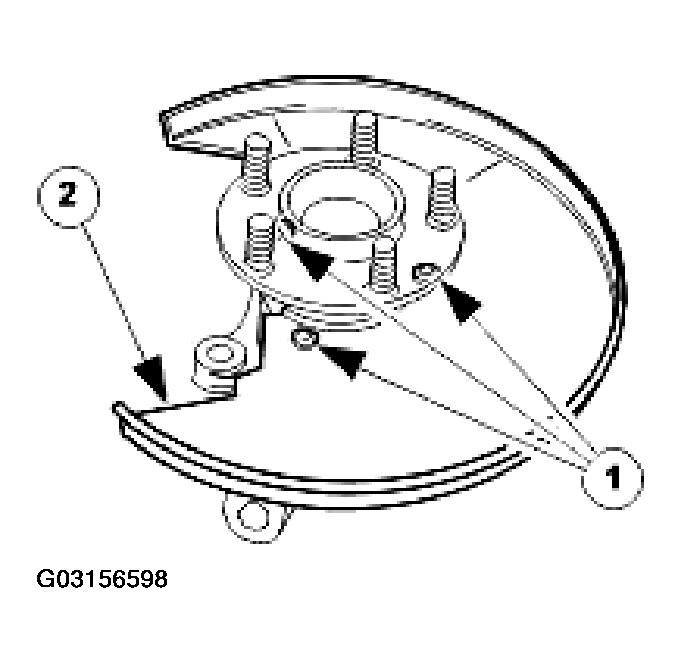

- Remove brake-disc shield from vertical link.
- Remove screws. (1)
- Remove disc shield. (2)
- Remove ABS hub rotor nut from vertical link and hub assembly. Refer to WHEEL SPEED SENSOR RING .
- Remove grease deflector from rotor nut.
- Clean components.
