Navigation System Compact Disc (Cd) Unit: Installation

Position DVD reader module in mounting bracket and install screws.

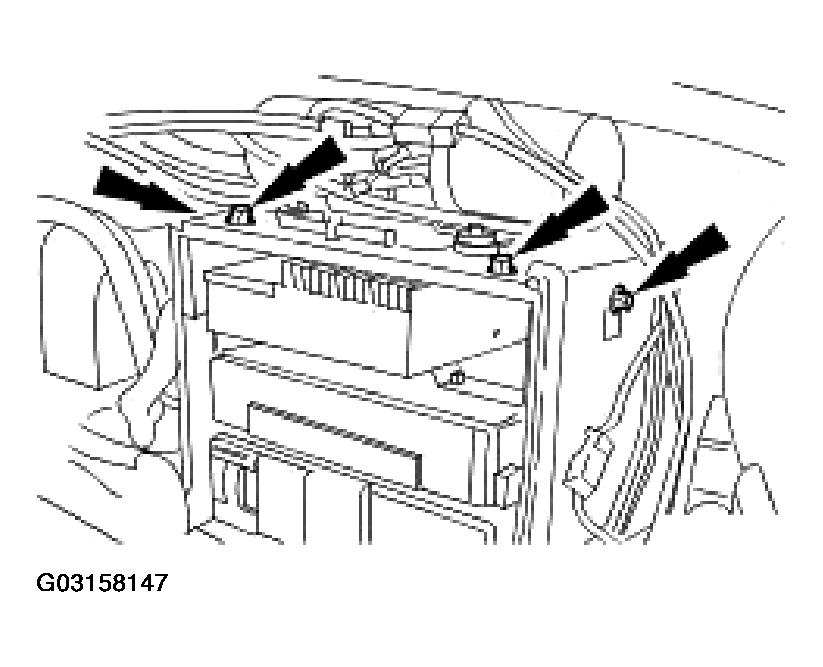

Fig 1: Positioning DVD Reader Module In Mounting Bracket
Courtesy of JAGUAR CARS, INC.
Position audio/DVD reader module stack at mounting bracket and connect DVD reader harness connectors.

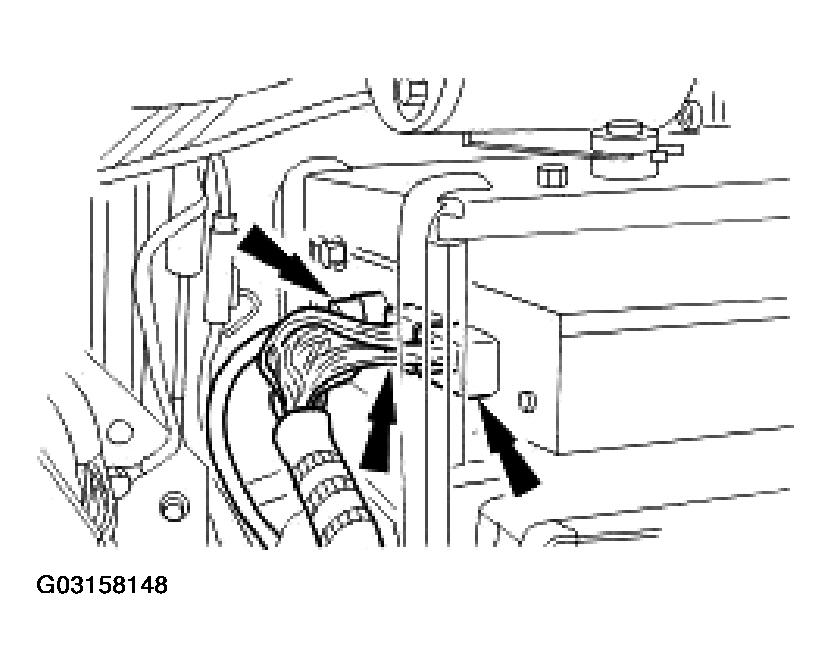

Fig 2: Connecting DVD Reader Harness Connectors
Courtesy of JAGUAR CARS, INC.
Ensure that amplifier and CD autochanger harnesses will not obstruct stack installation.
Finally position stack in mounting bracket and install bolts.

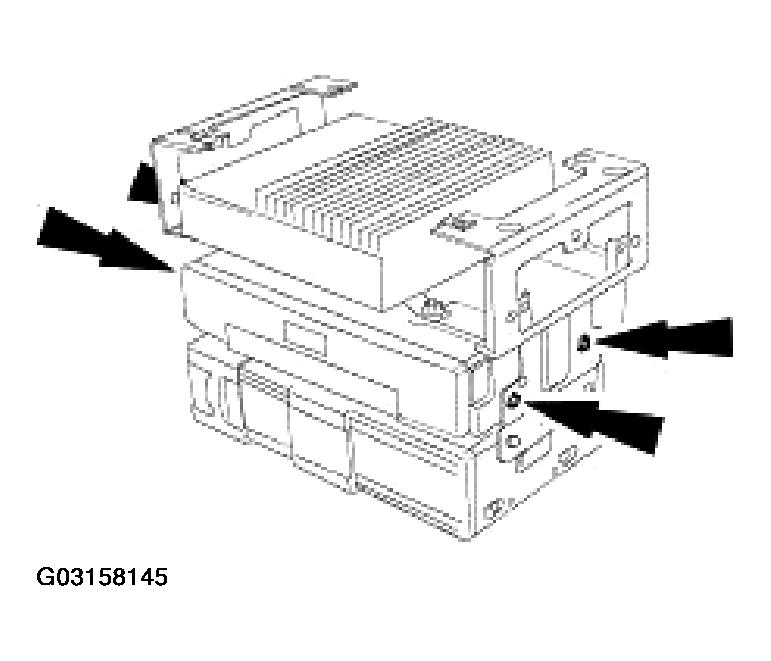

Fig 3: Installing Module Stack
Courtesy of JAGUAR CARS, INC.
Connect amplifier unit harness connectors (premium audio only).

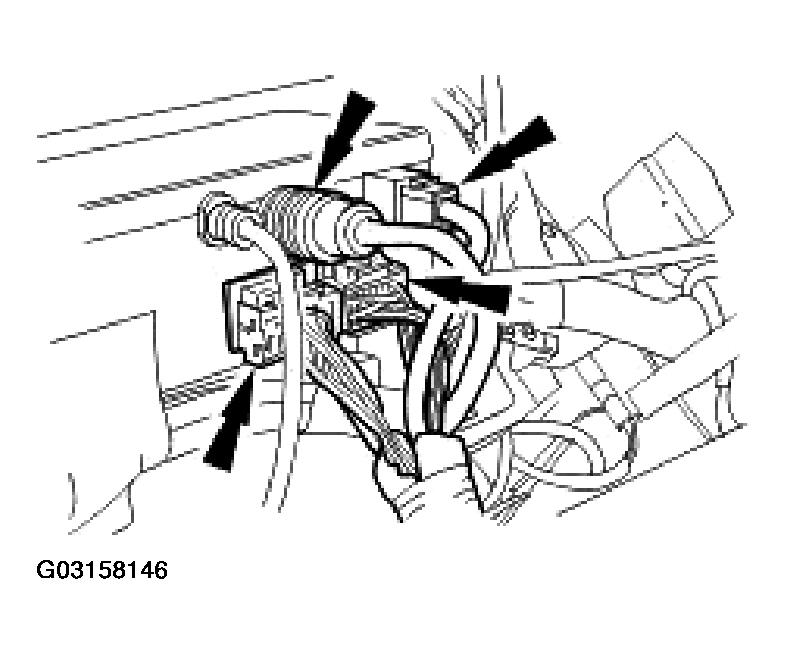

Fig 4: Connecting Amplifier Unit Harness Connectors
Courtesy of JAGUAR CARS, INC.
Install trunk RH side liner. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL .
Connect the battery and fit the battery cover.
- Refer to BATTERY RECONNECTION PROCEDURE .
