Speed Control Switch: Removal

NOTE: The speed control switch is an integral part of the steering wheel and is not available separately.
  1. Remove the driver air bag module. For additional information, refer to DRIVER-SIDE AIR BAG MODULE .
  2. Centralize the steering wheel.

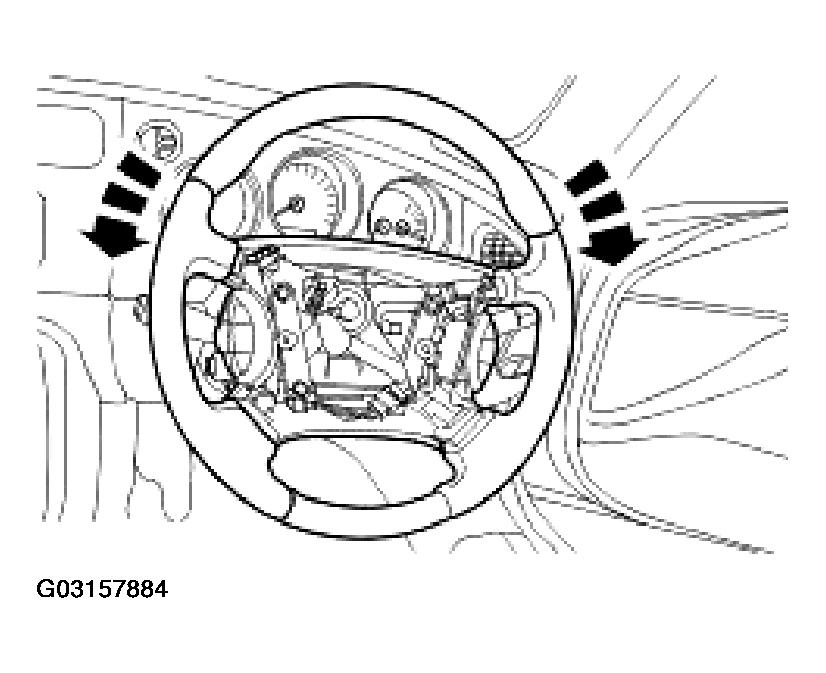

    Fig 1: Centralizing Steering Wheel
    G03157884Courtesy of JAGUAR CARS, INC.
  3. Detach and disconnect the switchpacks electrical connector.

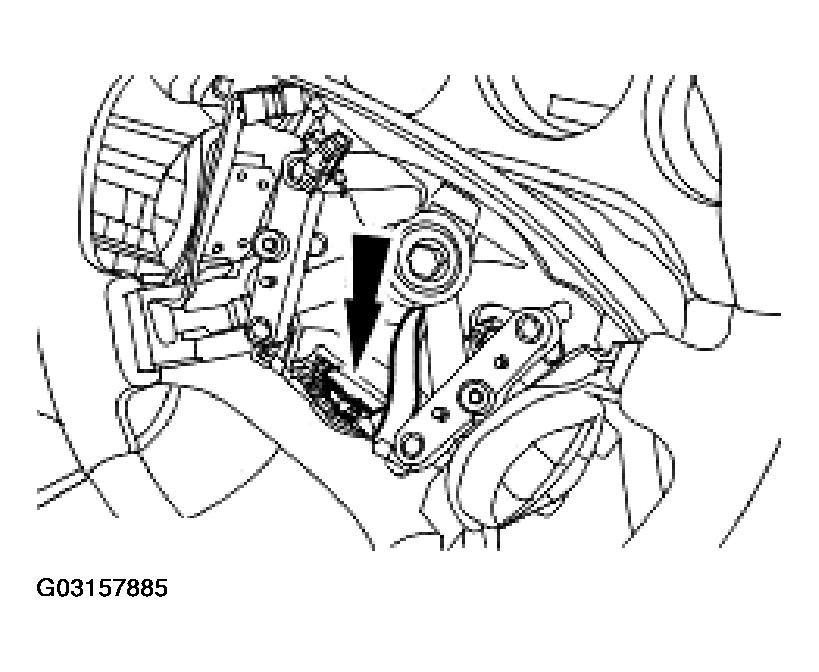

    Fig 2: Disconnecting Switchpacks Electrical Connector
    G03157885Courtesy of JAGUAR CARS, INC.
  4. Detach the steering wheel.
    • Remove and discard the steering wheel retaining bolt.

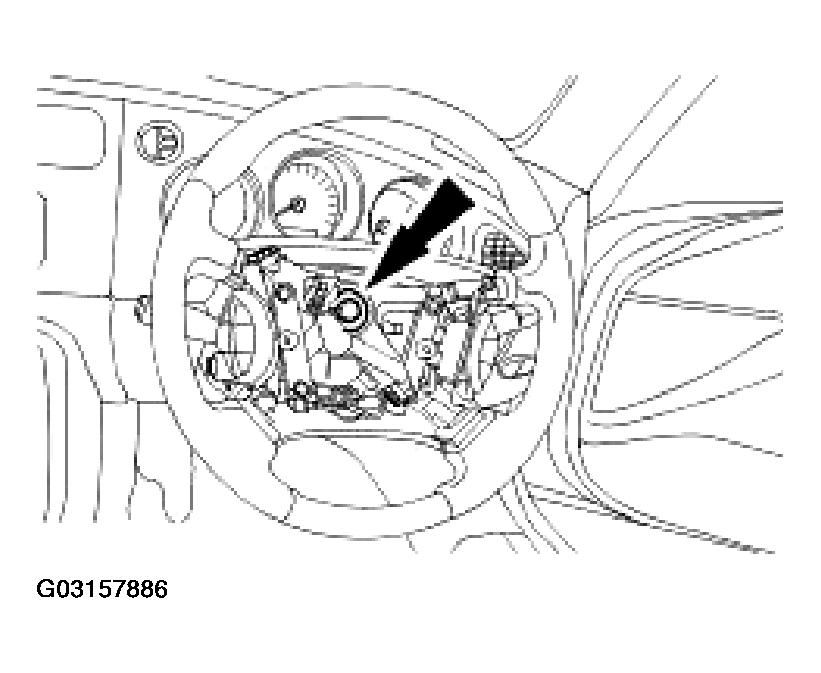

    Fig 3: Detaching Steering Wheel
    G03157886Courtesy of JAGUAR CARS, INC.
  5. Remove the steering wheel.
    • Guide the wiring harnesses through the steering wheel aperture. (1)
    • Remove the steering wheel. (2)

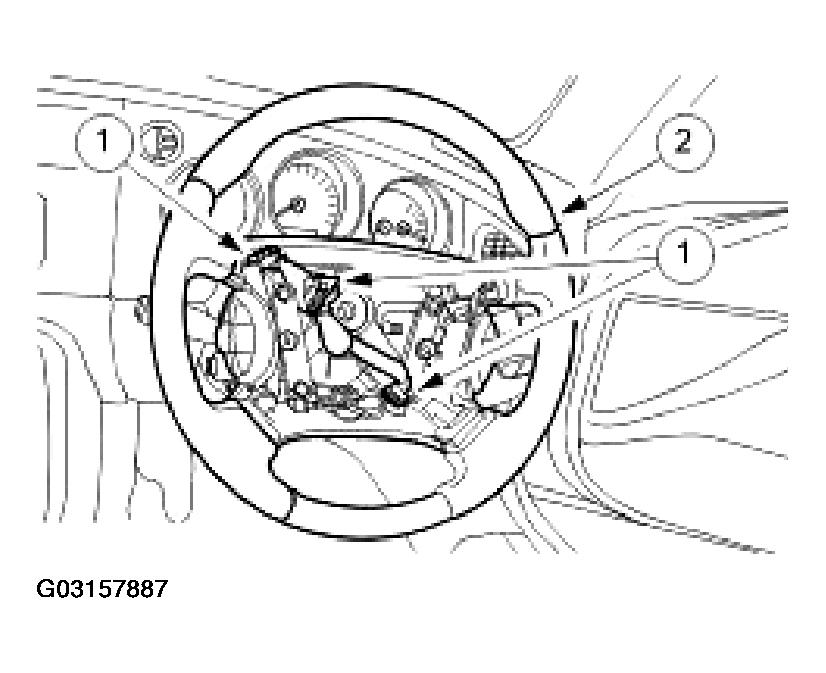

    Fig 4: Removing Steering Wheel
    G03157887Courtesy of JAGUAR CARS, INC.
