Engine Control Module (AJ27 SC) Connector End View

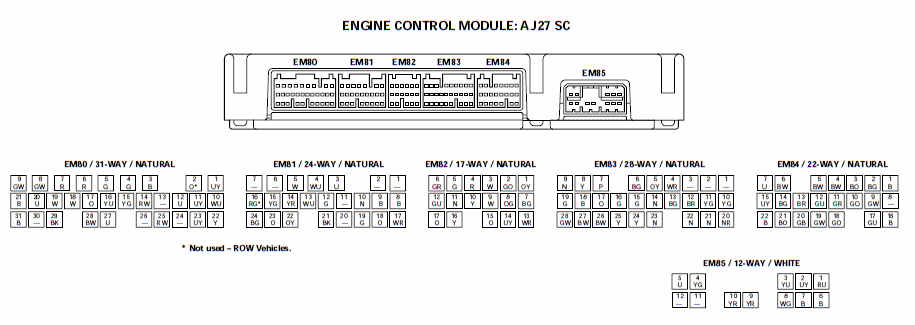

Fig 1: Engine Control Module (AJ27 SC) Connector End View

G00558706

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
