Speed Control Module Alignment: Procedure

NOTE: Make sure the vehicle is positioned on level ground such as the headlamp alignment area.

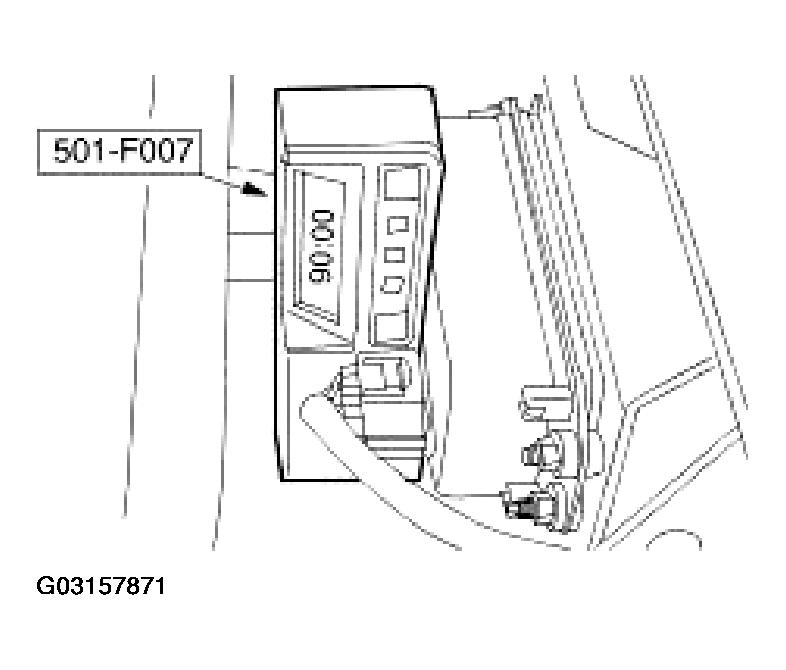

Using the special tool, check the speed control module vertical alignment.

Fig 1: Checking Speed Control Module Vertical Alignment
Courtesy of JAGUAR CARS, INC.
Align the speed control module.

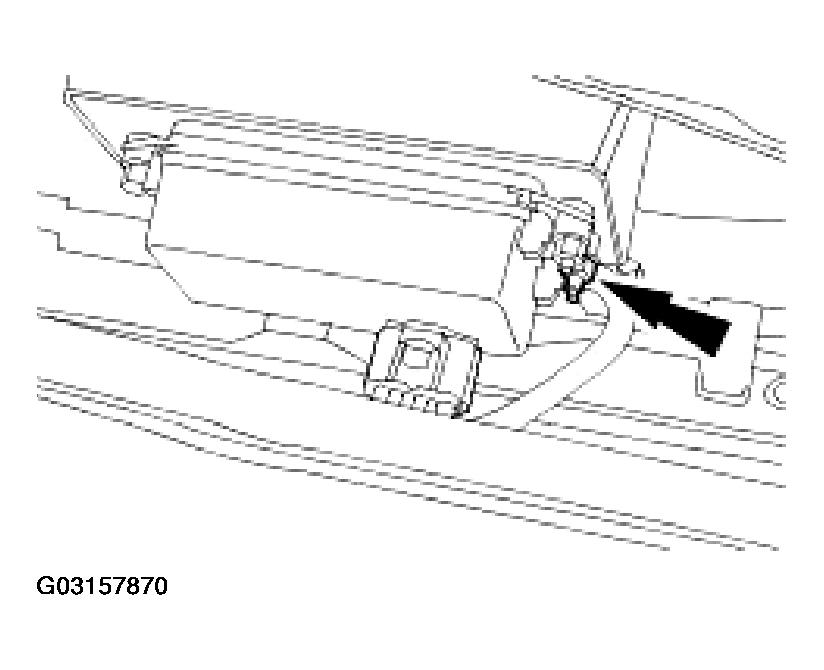

- Rotate the speed control module alignment bolt to achieve a reading of 90° +/- 0.75°.
Fig 2: Aligning Speed Control Module
Courtesy of JAGUAR CARS, INC.

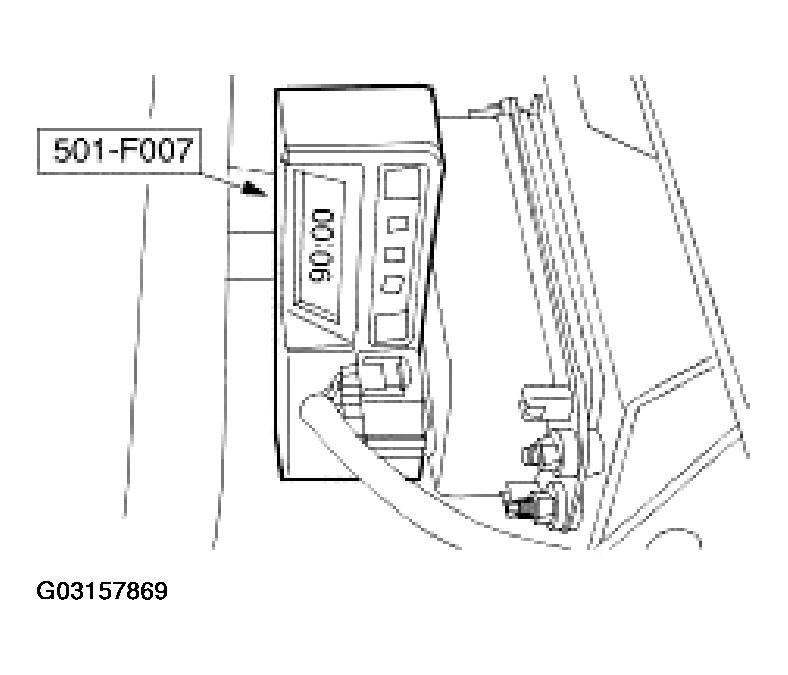

Using the special tool, check the speed control module vertical alignment.

Fig 3: Checking Speed Control Module Vertical Alignment
Courtesy of JAGUAR CARS, INC.
