Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Diagnosis & Testing
>>
On-Board Diagnostics
>>
Transmission System Mechanical
Transmission System Mechanical

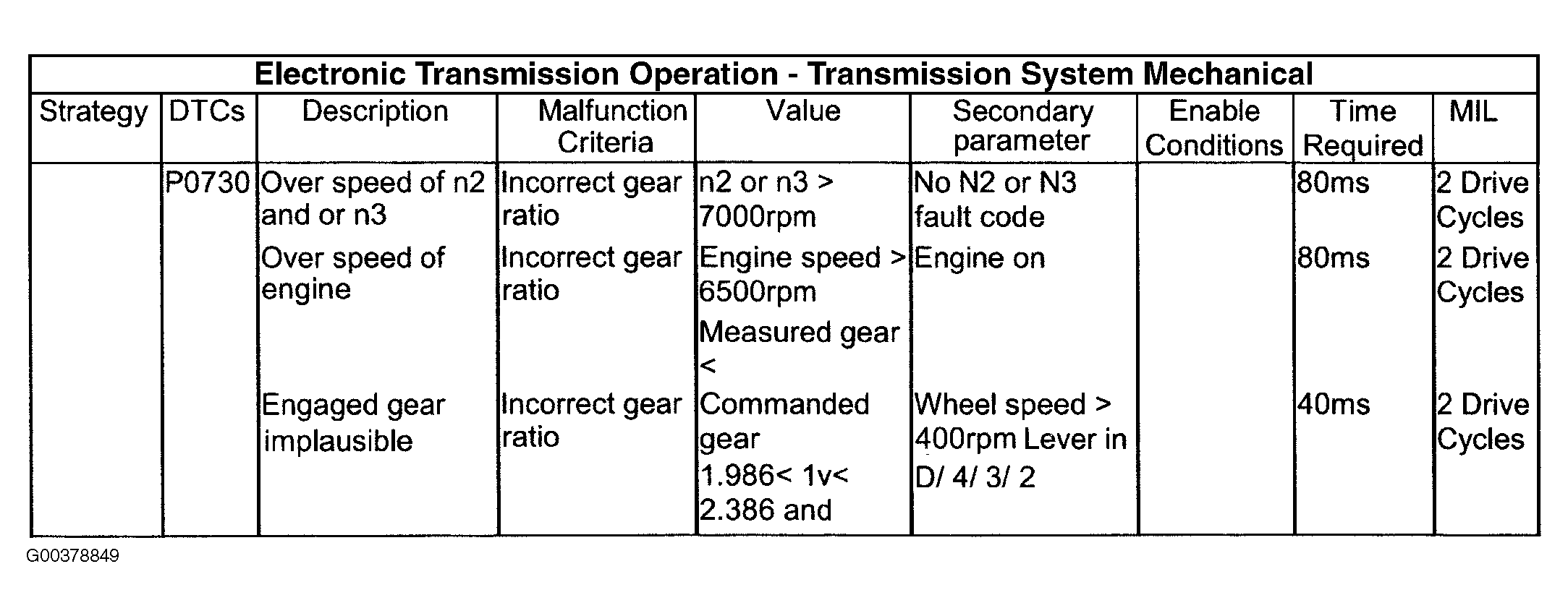

Fig 1: Transmission System Mechanical (1 Of 2)
Courtesy of JAGUAR CARS, INC.

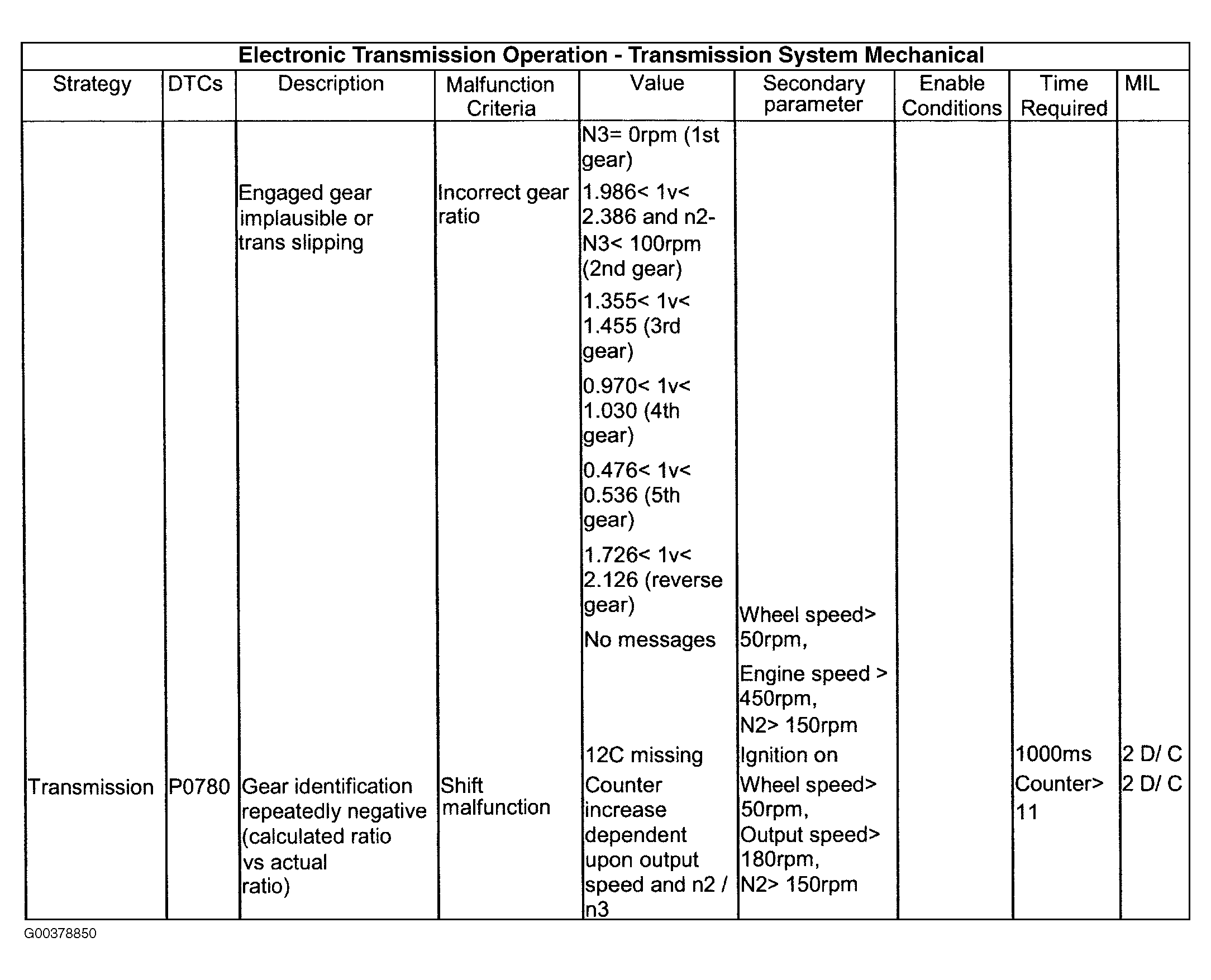

Fig 2: Transmission System Mechanical (2 Of 2)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
