Transmission Fluid Temperature Sensor

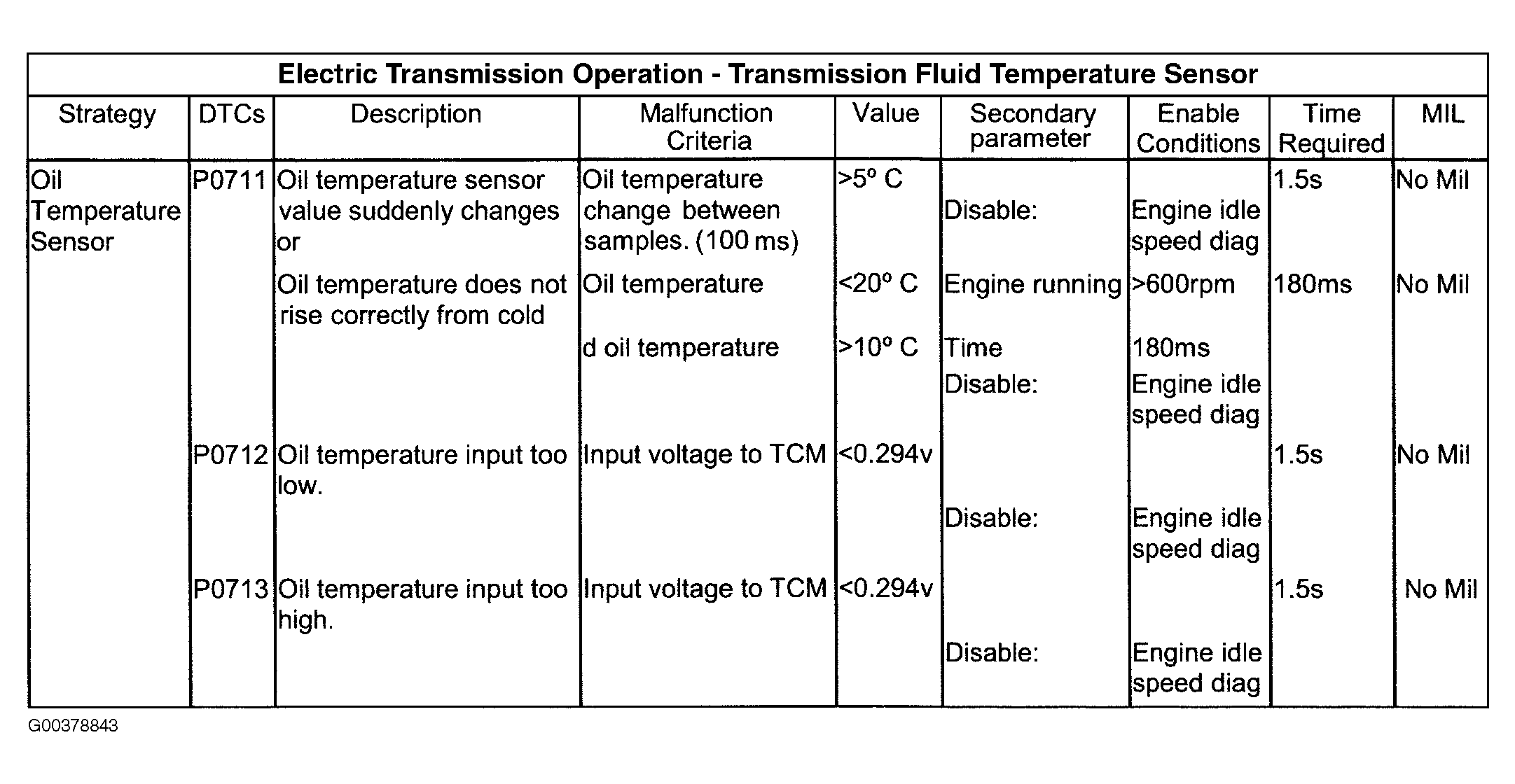

Fig 1: Transmission Fluid Temperature Sensor Table

G00378843

Courtesy of JAGUAR CARS, INC.
