Fault Monitoring Conditions

NOTE: It is recommended that the applicable WIRING DIAGRAMS be referenced when using the information contained in Fig 2 -Fig 9 .

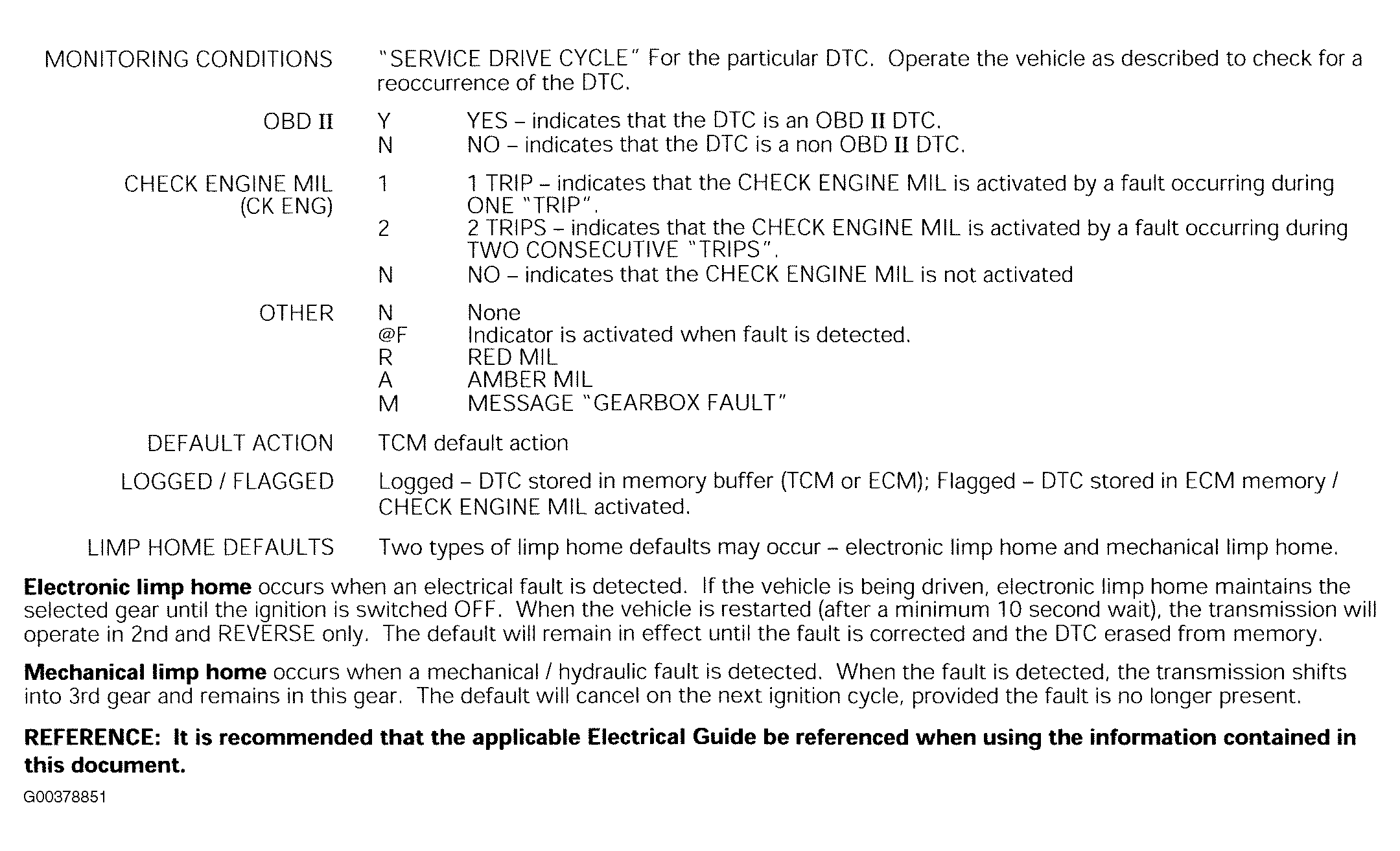

Fig 1: Definitions For Fault Monitoring Conditions (Definitions For Fig. 20-27)

Courtesy of JAGUAR CARS, INC.

Fig 2: DTC P0702, P0705 & P0706 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

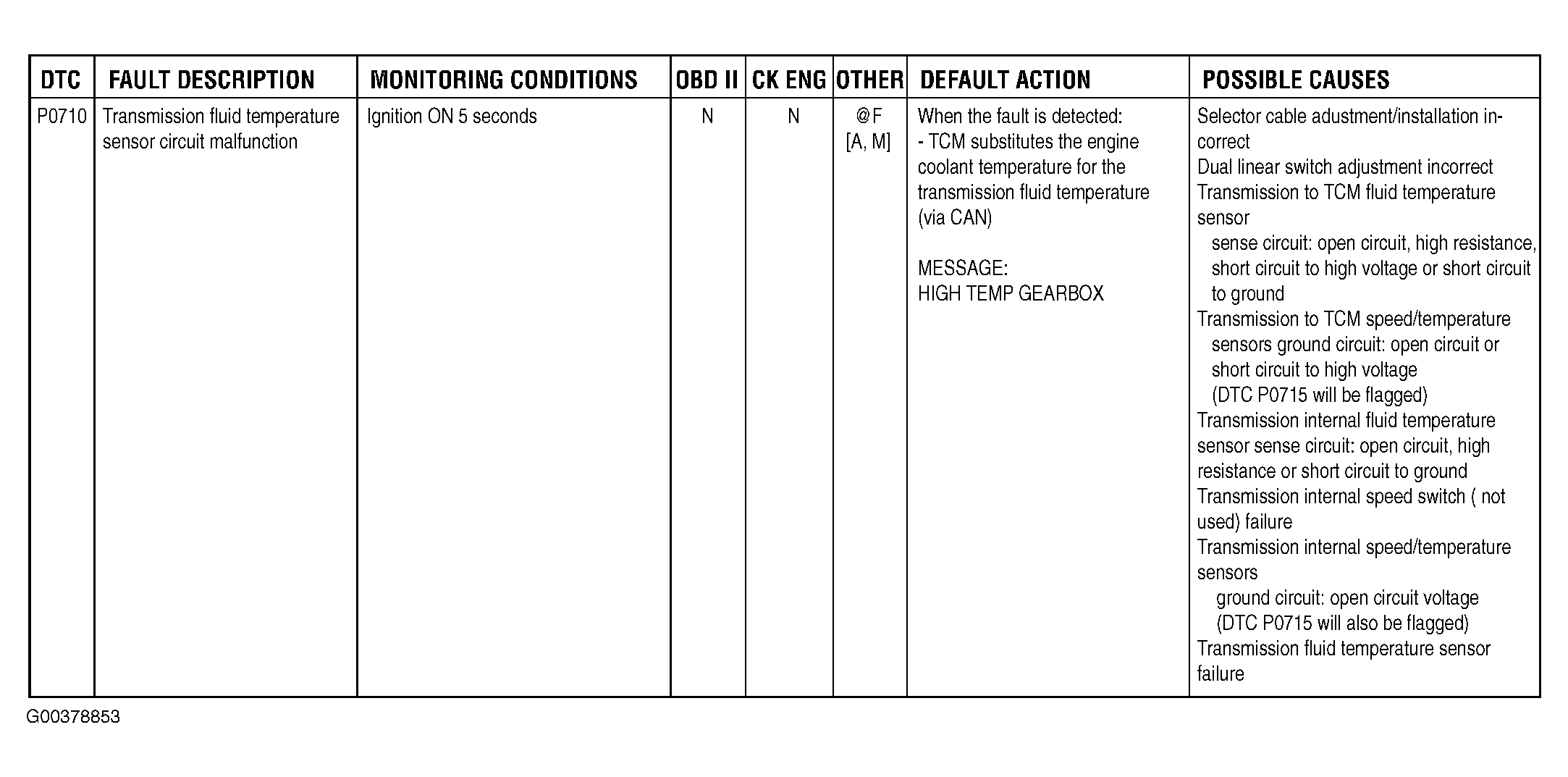

Fig 3: DTC P0710 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

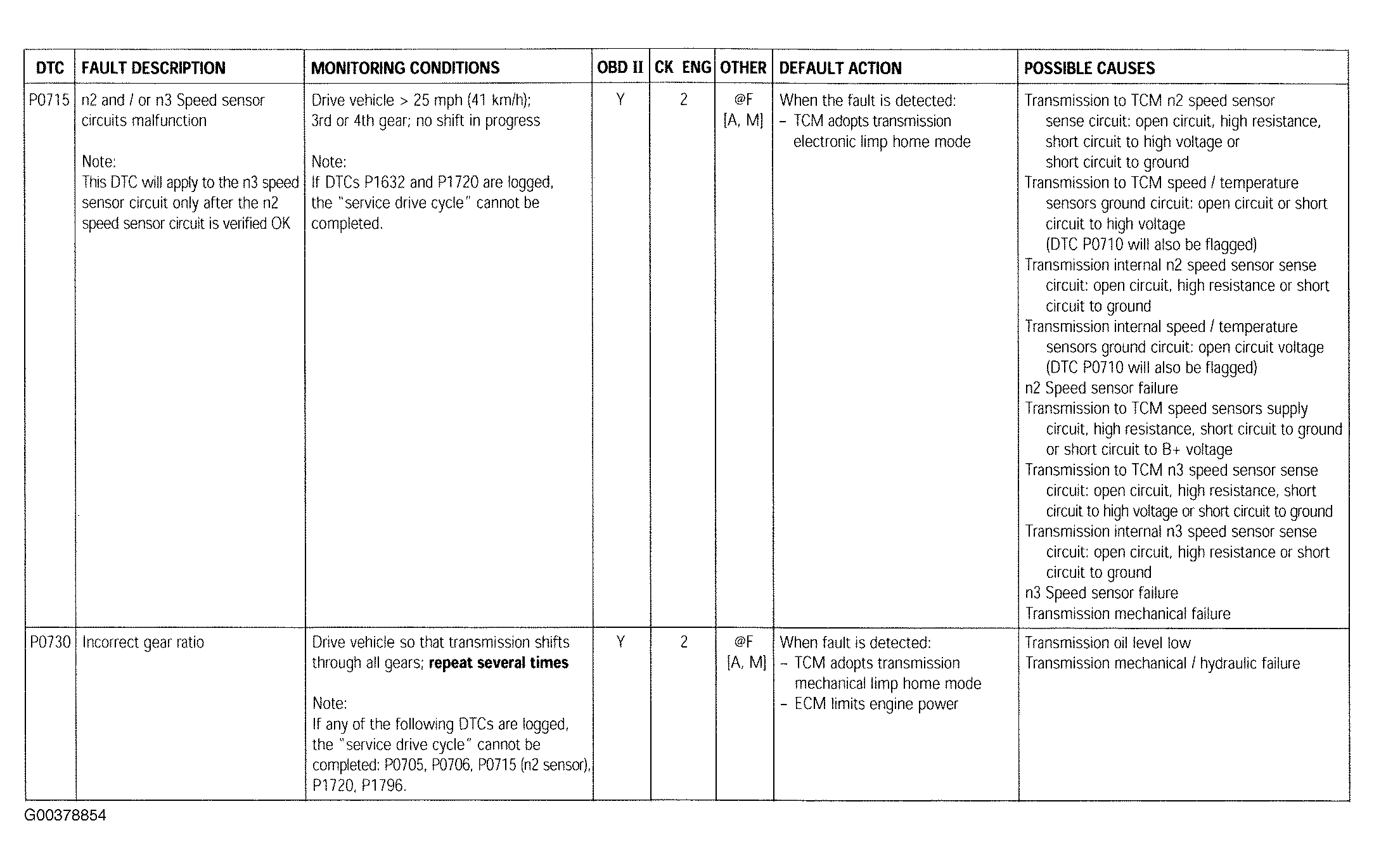

Fig 4: DTC P0715 & P0730 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

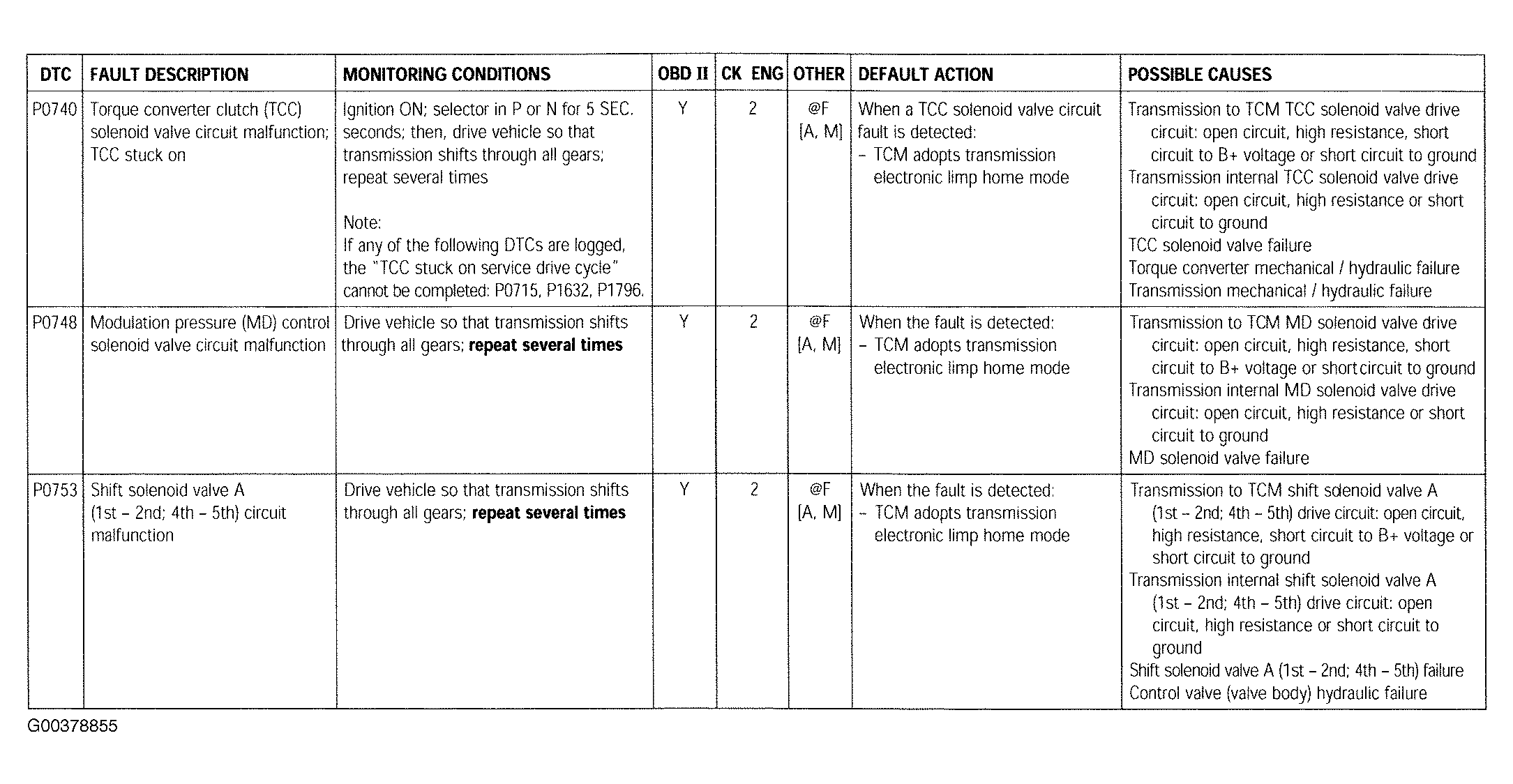

Fig 5: DTC P0740, P0748 & P0753 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

Fig 6: DTC P0758, P0763, P0780, P1601 & P1608 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

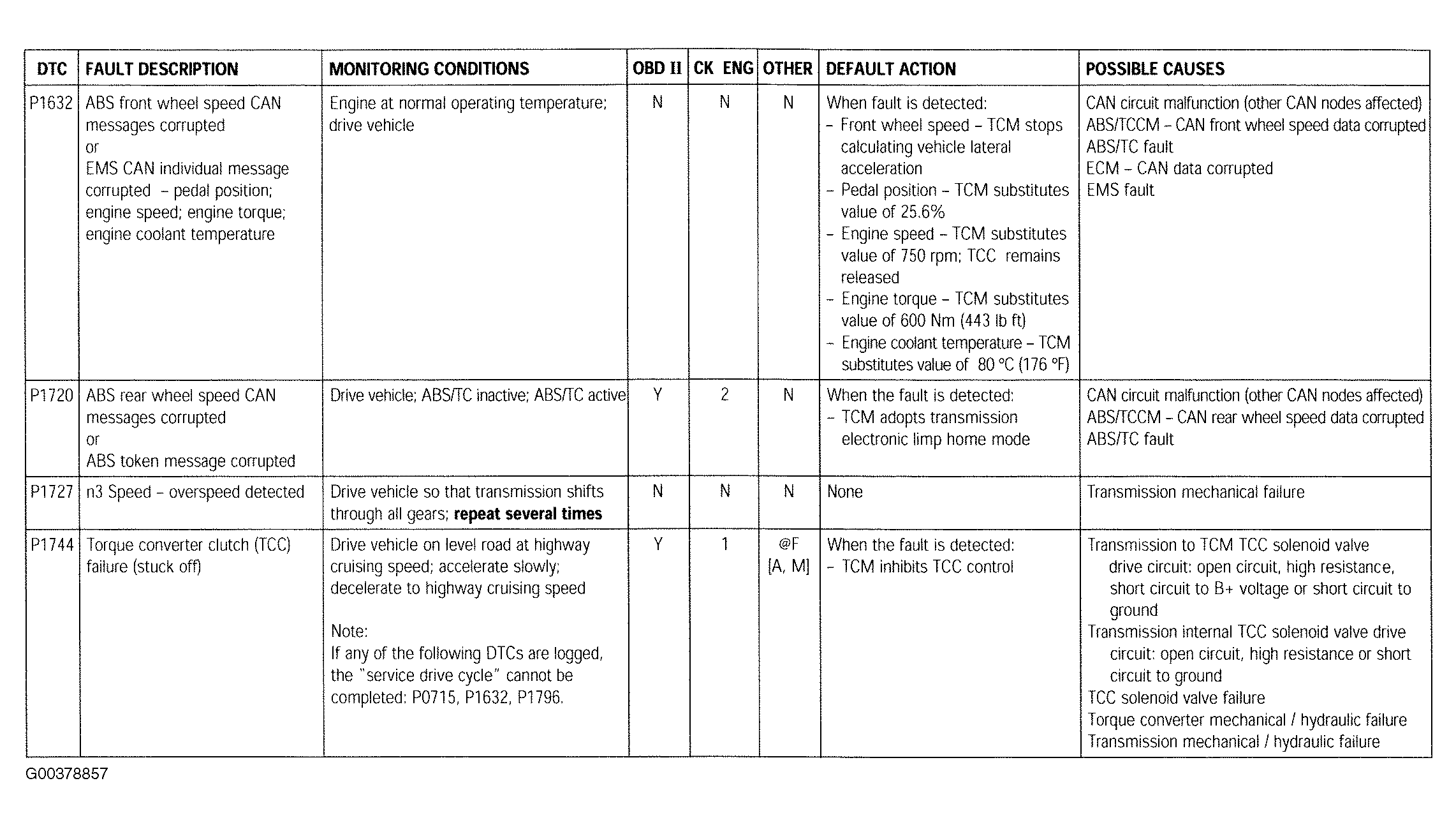

Fig 7: DTC P1632, P1720, P1727 & P1744 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

Fig 8: DTC P1748, P1780, P1794, P1796 & P1797 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.

Fig 9: DTC P1798 Fault Monitoring Conditions

Courtesy of JAGUAR CARS, INC.
