Speed Sensor/TCM Circuit Diagram

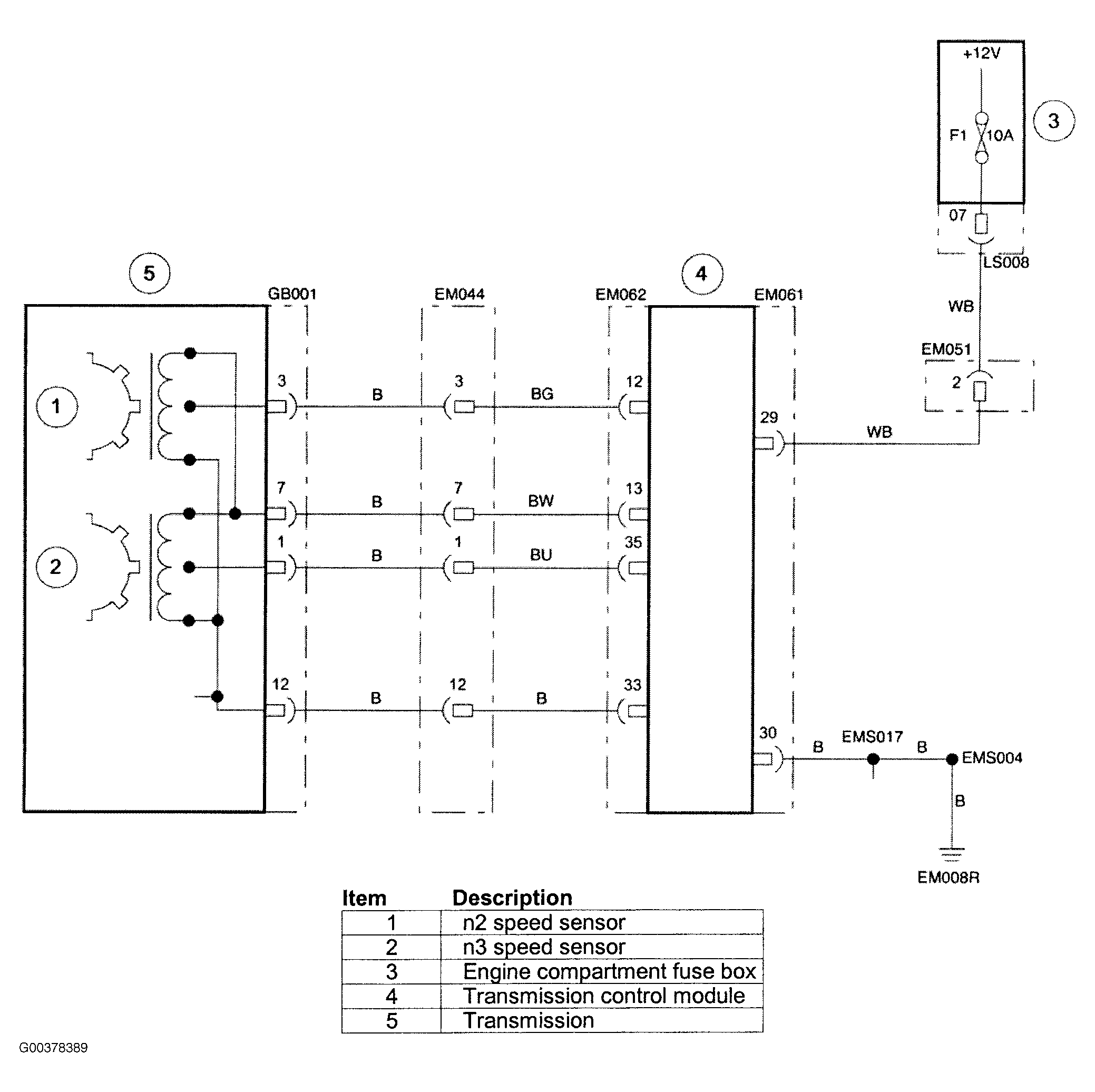

Fig 1: Identifying Speed Sensor/TCM Circuits

G00378389

Courtesy of JAGUAR CARS, INC.
