Ride Height Specifications

Before adjusting alignment, check riding height. Press down on front bumper to depress car, and slowly release. Bounce vehicle several times, and allow suspension to settle. Ensure tire inflation is correct.

RIDE HEIGHT SPECIFICATIONS ⁽¹⁾

Application

⁽²⁾ Showroom - In. (mm)

⁽³⁾ Curb - In. (mm)

Comfort Suspension

Front

14.76-15.94 (375-405)

14.53-15.71 (369-399)

Rear

14.72-15.91 (374-404)

14.09-15.28 (358-388)

Sport Suspension

Front

14.53-15.71 (369-399)

14.69-15.87 (373-403)

Rear

14.41-15.59 (366-396)

14.06-15.24 (357-387)

XJR

Front

14.72-15.91 (374-404)

14.69-15.87 (373-403)

Rear

14.45-15.63 (367-397)

14.06-15.24 (357-387)

⁽¹⁾	Ride height is measured from the horizontal centerline of the wheel to the apex of the wheel opening. See Fig 1 .

⁽²⁾	Showroom specification is with all fluids levels full and approximately 2.5 gallons of fuel.

⁽³⁾	Curb specification is with all fluid levels full and fuel tank full.

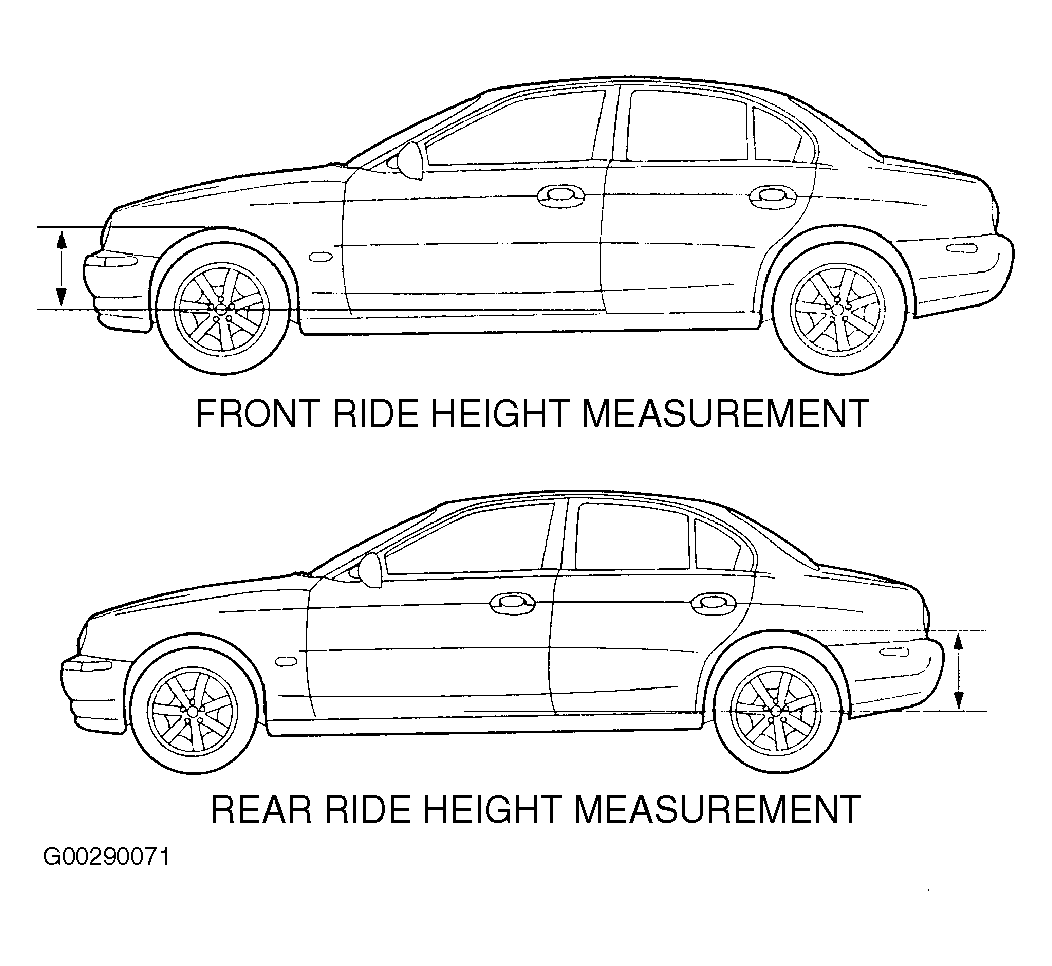

Fig 1: Identifying Ride Height Measurement Locations (Typical)

Courtesy of JAGUAR CARS, INC.
