Stabilizer Bar Link: Installation

Position link assembly on lower wishbone and install but do not tighten bolt.

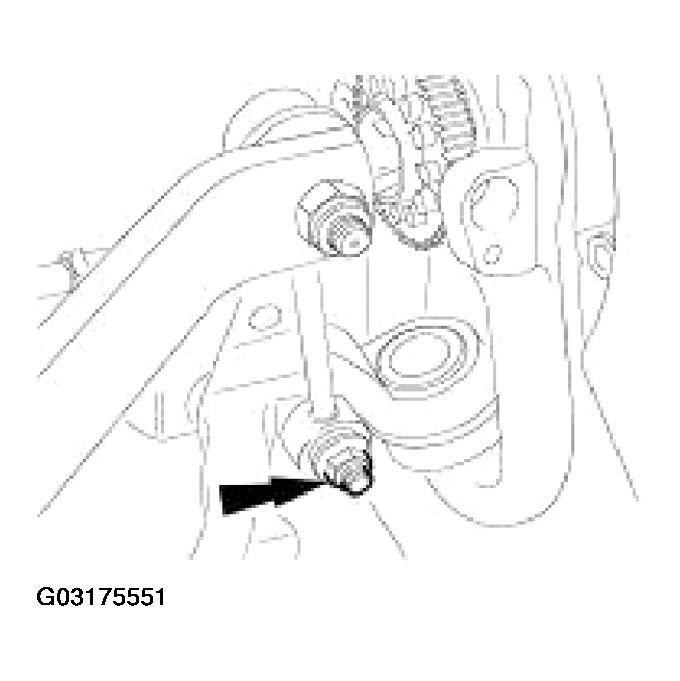

Fig 1: Positioning Link Assembly On Lower Wishbone And Installing Bolt
Courtesy of JAGUAR CARS, INC.
Position link arm ball joint stud in stabilizer bar and install but do not tighten nut.

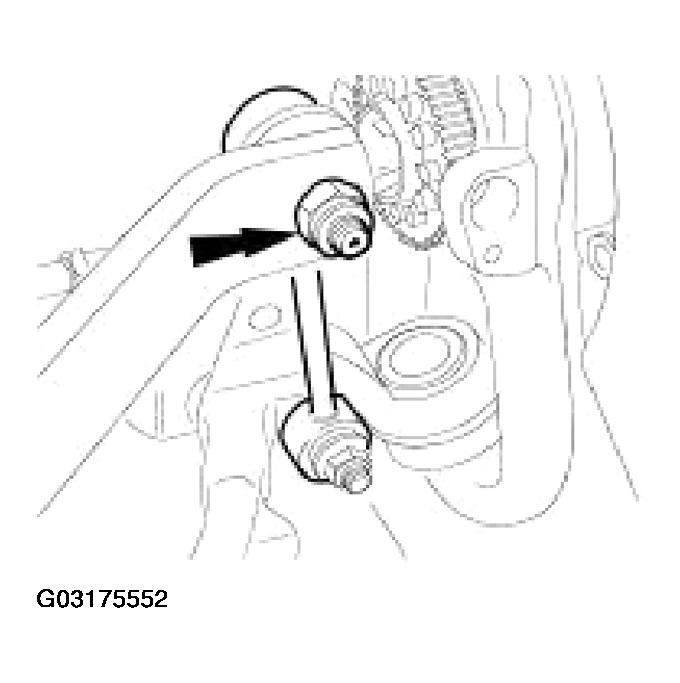

Fig 2: Positioning Link Arm Ball Joint Stud In Stabilizer Bar And Installing Nut
Courtesy of JAGUAR CARS, INC.
Tighten link arm to wishbone nut and bolt to 41-54 Nm.

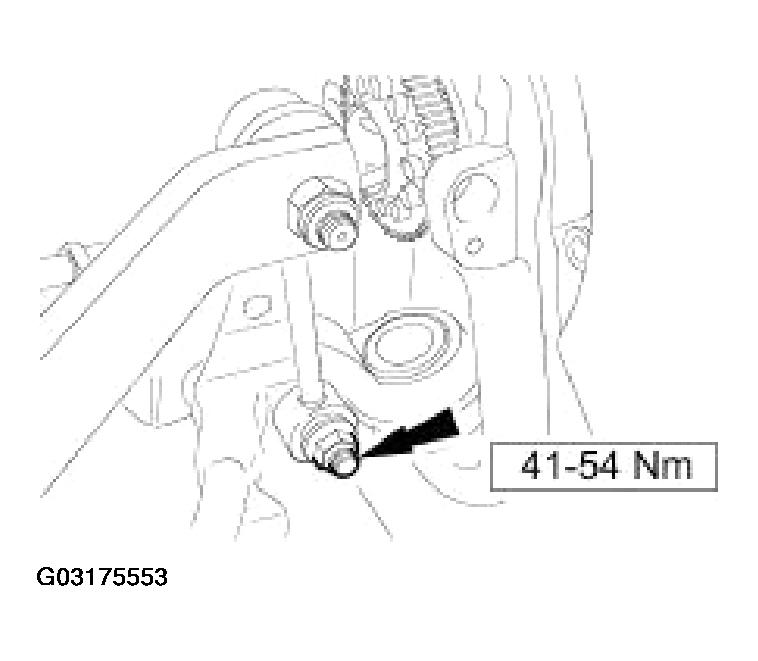

Fig 3: Tightening Link Arm To Wishbone Nut And Bolt To 41-54 Nm
Courtesy of JAGUAR CARS, INC.
Secure link arm to stabilizer bar.
- Tighten link arm to stabilizer bar nut to 60-80 Nm.
- Check that ball joint freedom of movement has been maintained.

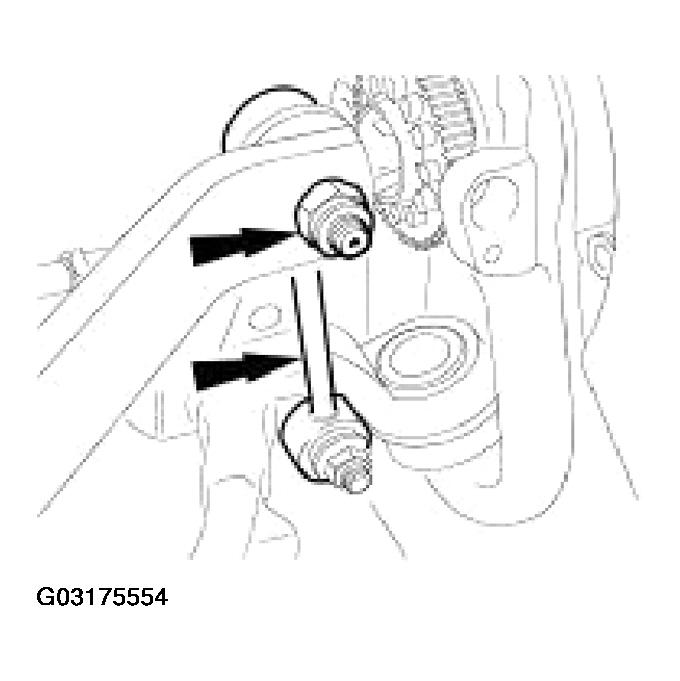

  Fig 4: Securing Link Arm To Stabilizer Bar
  Courtesy of JAGUAR CARS, INC.
Raise front of vehicle, remove stands and lower vehicle onto wheels.
