Seat Control Switch: Removal

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Remove front seat for access. Refer to FRONT SEAT .
Place seat inverted on clean working surface for access to underside.

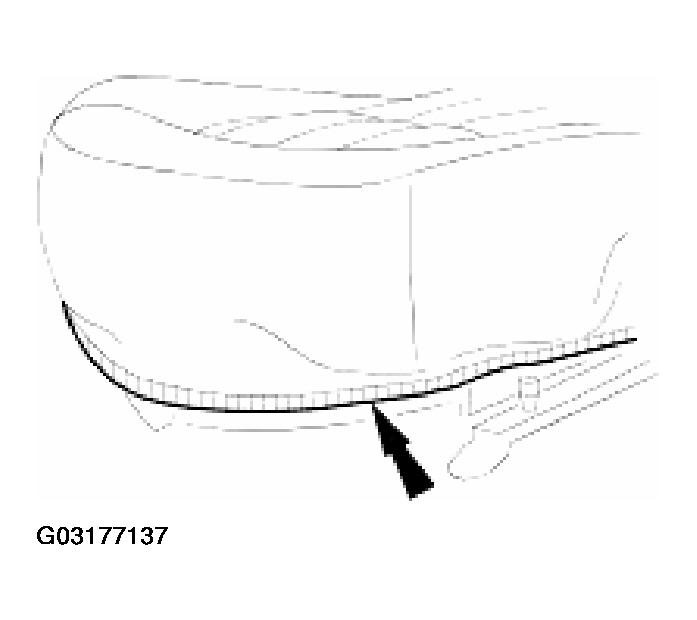

Release cushion cover retaining strip from edge of seat frame.

Fig 1: Releasing Cushion Cover Retaining Strip From Edge Of Seat Frame
Courtesy of JAGUAR CARS, INC.

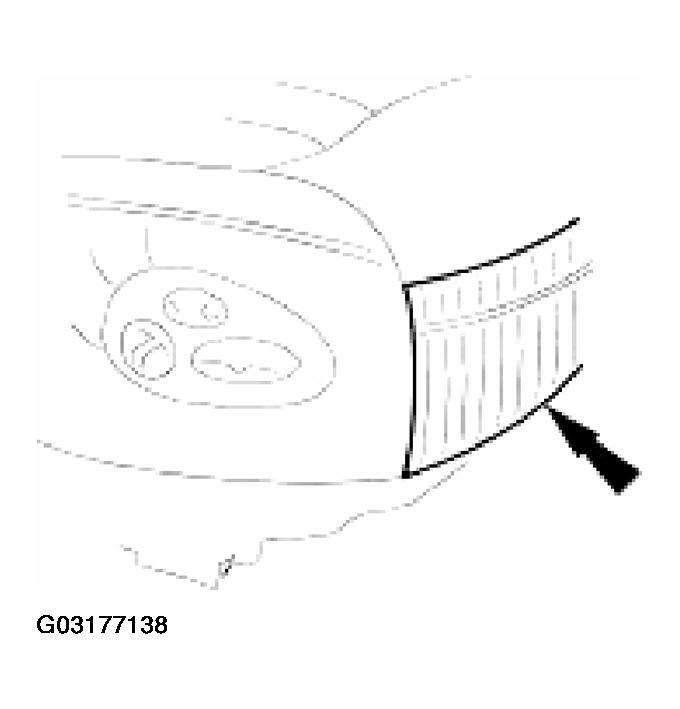

Release cushion cover front elastic retaining straps from seat frame.

Fig 2: Releasing Cushion Cover Front Elastic Retaining Straps From Seat Frame
Courtesy of JAGUAR CARS, INC.

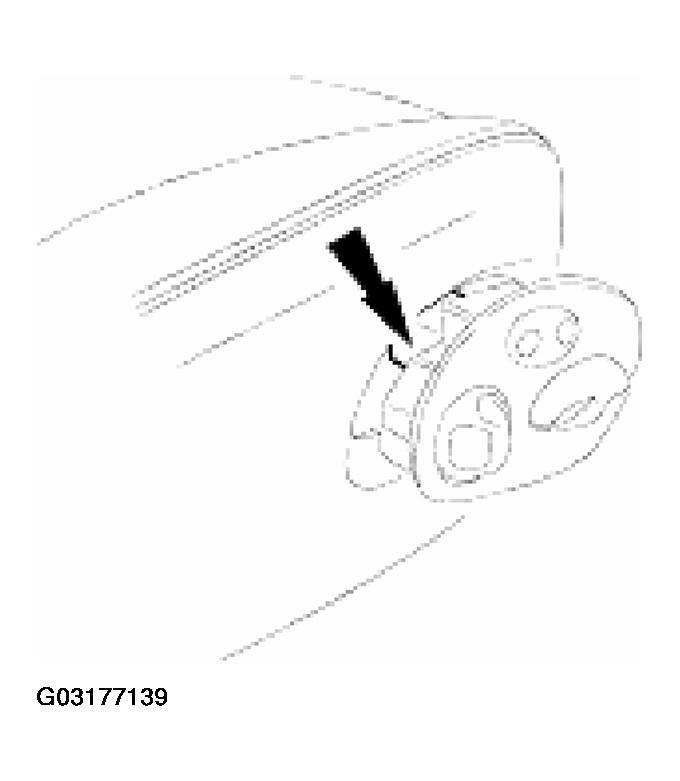

Position cushion cover sides for access to cushion pad, raise pad to access back of switchpack and disconnect harness multiplug.

Fig 3: Positioning Cushion Cover Sides For Access To Cushion Pad
Courtesy of JAGUAR CARS, INC.

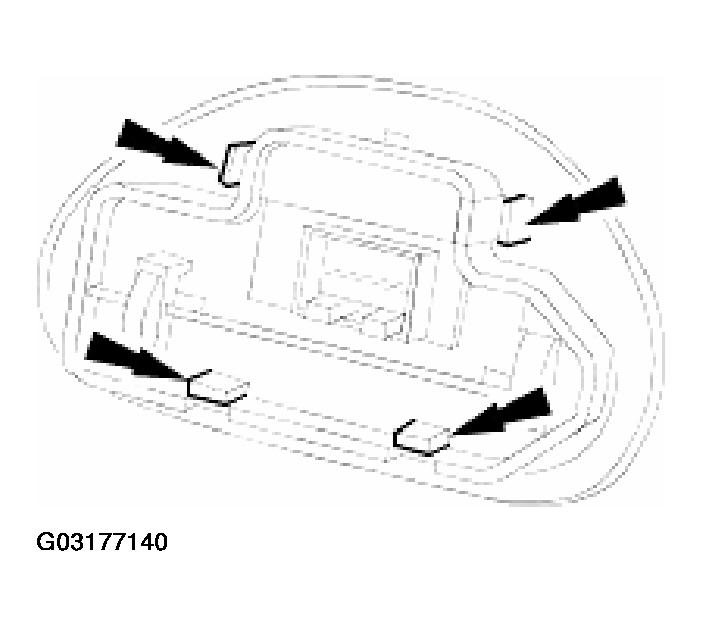

Release switchpack upper retaining tangs, and lower retaining tangs situated by seat sliders and remove switchpack from seat.

Fig 4: Removing Switchpack
Courtesy of JAGUAR CARS, INC.
