Front Seat Backrest: Removal

Remove front seat for access. Refer to FRONT SEAT .
Remove seat back finisher. Refer to FRONT SEAT BACKREST TRIM PANEL .
Remove front seat headrest. Refer to FRONT SEAT HEAD RESTRAINT .

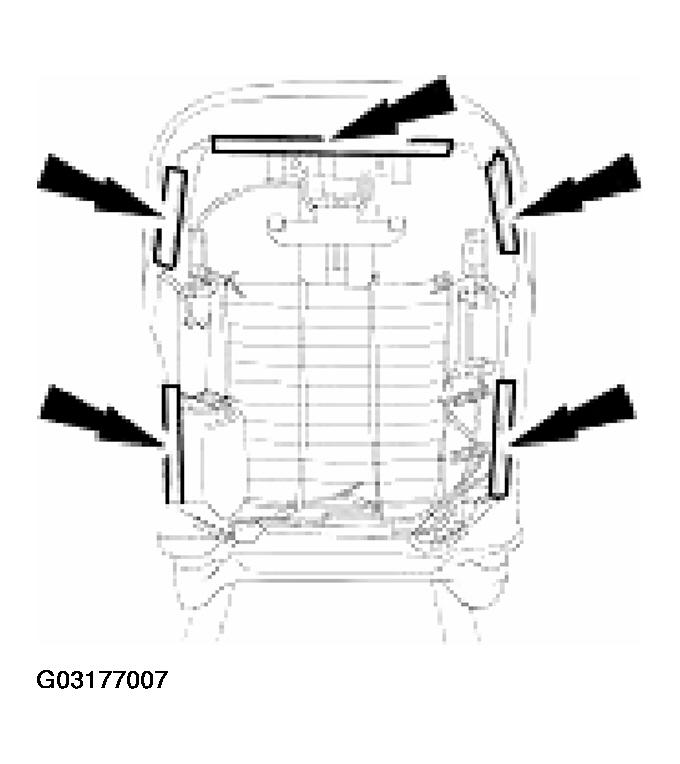

Release the five squab cover to seat frame securing strips.

Fig 1: Releasing Five Squab Cover To Seat Frame Securing Strips
Courtesy of JAGUAR CARS, INC.

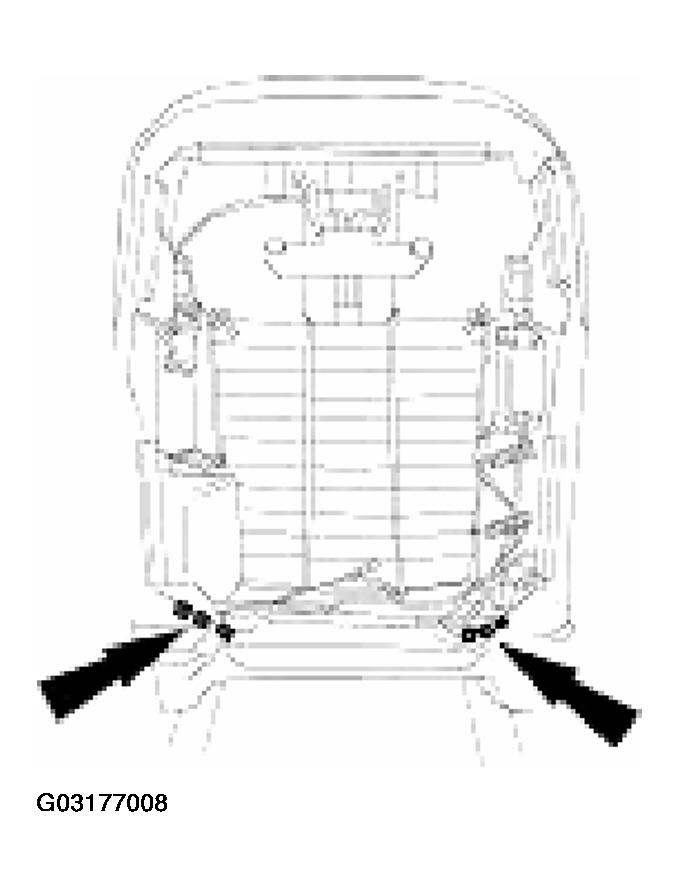

Release the squab cover to seat frame lower securing clips.

Fig 2: Releasing Squab Cover To Seat Frame Lower Securing Clips
Courtesy of JAGUAR CARS, INC.

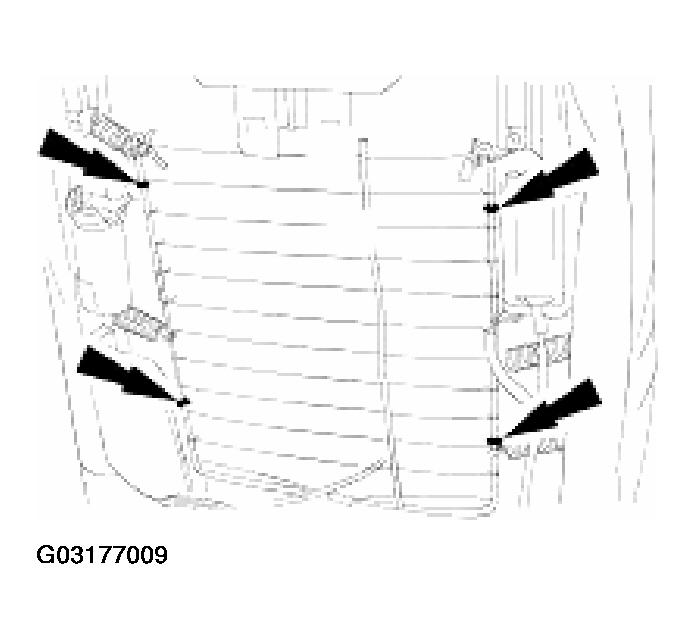

Remove the four squab pad to squab suspension hog rings.

Fig 3: Removing Squab Pad To Squab Suspension Hog Rings
Courtesy of JAGUAR CARS, INC.

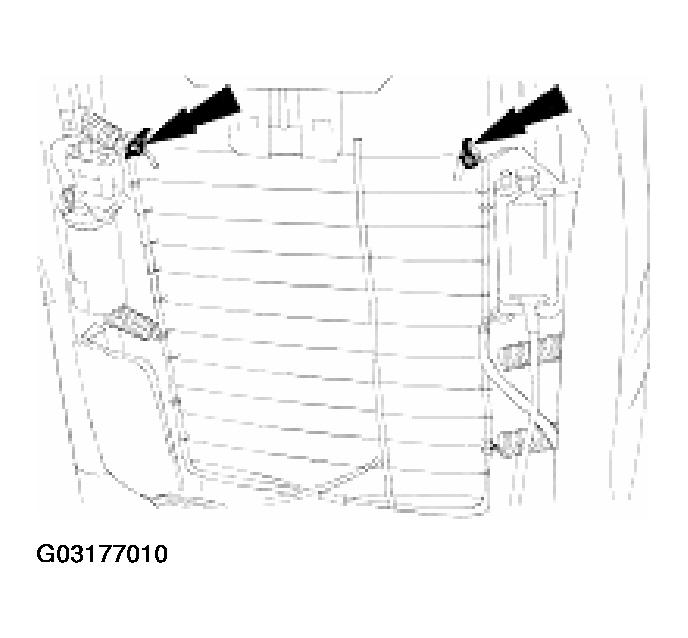

Sever the two ratchet straps securing squab pad to squab suspension.

Fig 4: Severing Two Ratchet Straps Securing Squab Pad To Squab Suspension
Courtesy of JAGUAR CARS, INC.

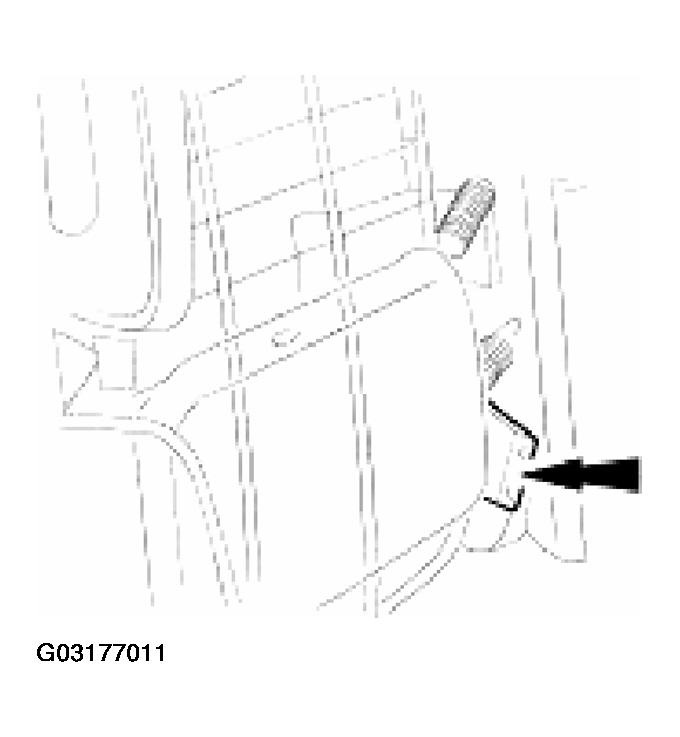

Disconnect the squab heater element harness multiplug.

Fig 5: Disconnecting Squab Heater Element Harness Multiplug
Courtesy of JAGUAR CARS, INC.
Release the lower part of squab cover and pad from seat frame.

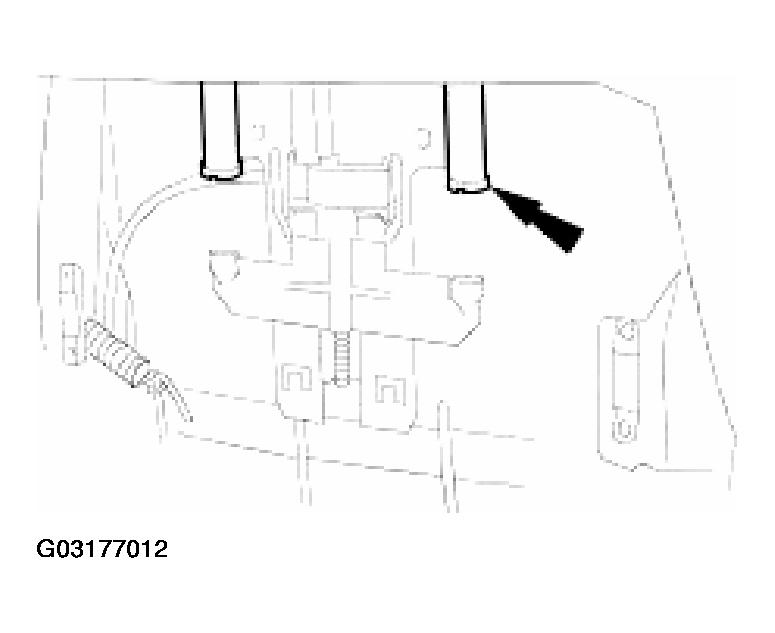

Release seat headrest guides from seat frame and remove squab cover and pad.

Fig 6: Releasing Seat Headrest Guides From Seat Frame
Courtesy of JAGUAR CARS, INC.

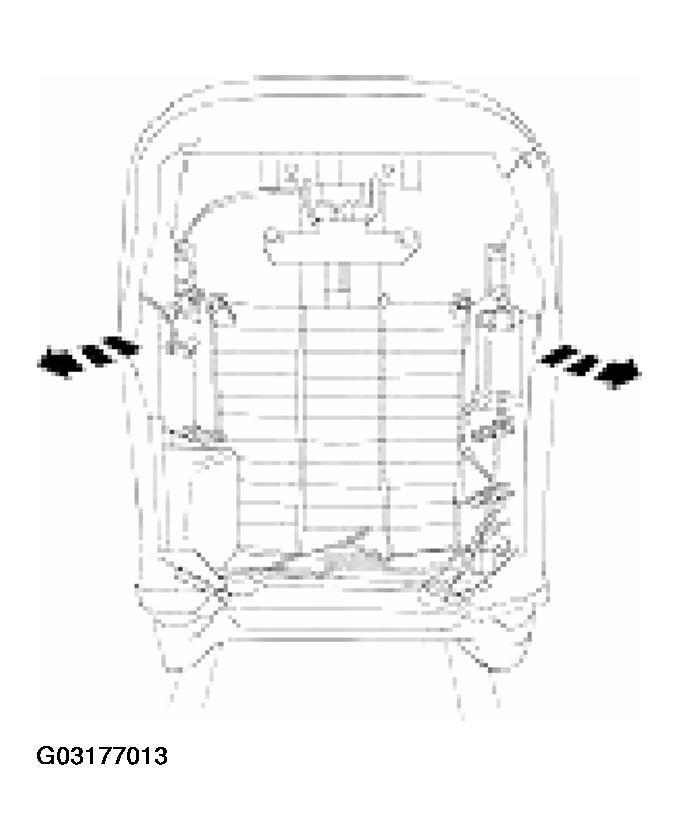

Position squab cover sides for access and remove the eighteen squab cover to pad hog rings.

Fig 7: Positioning Squab Cover To Pad Hog Rings
Courtesy of JAGUAR CARS, INC.
Remove squab pad and heater element from squab cover.
Remove heater element from squab pad.
