Interior Mirror Mounting Block: Installation

  1. Using masking tape, mark block mounting area on windshield.

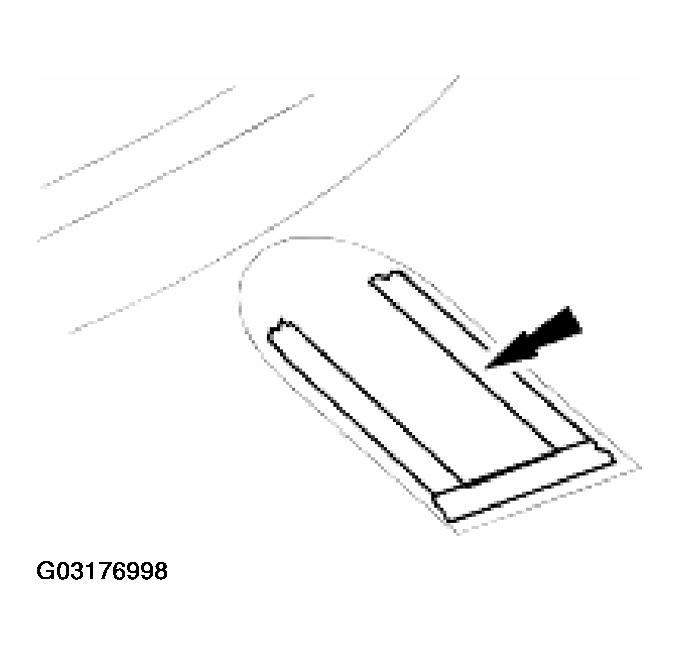

    Fig 1: Marking Block Mounting Area On Windshield
    G03176998Courtesy of JAGUAR CARS, INC.
  2. Apply Permabond F Grade 5 Initiator to mounting area of windshield.
  3. Apply a bead of Permabond F246 to bottom and each vertical side of block over 2/3 of block height.

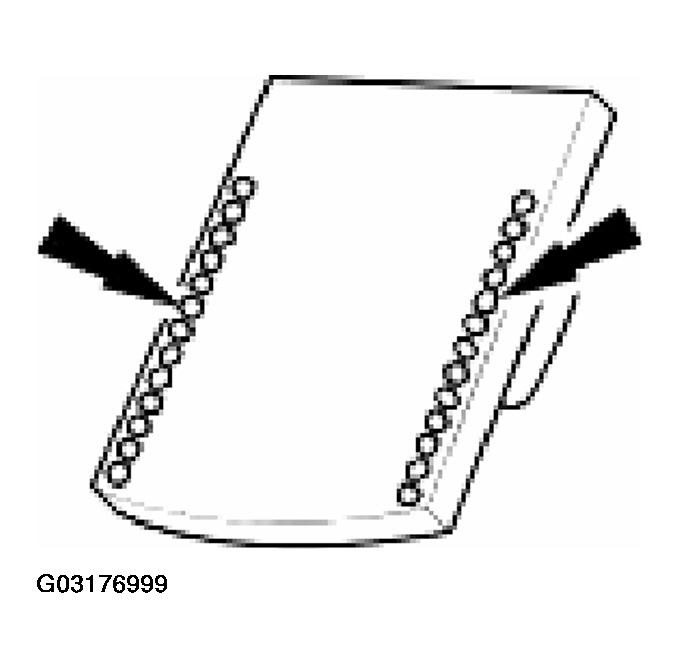

    Fig 2: Applying A Bead Of Permabond F246 To Mounting Block
    G03176999Courtesy of JAGUAR CARS, INC.
  4. Press mounting block onto marked area and hold in position for one minute.

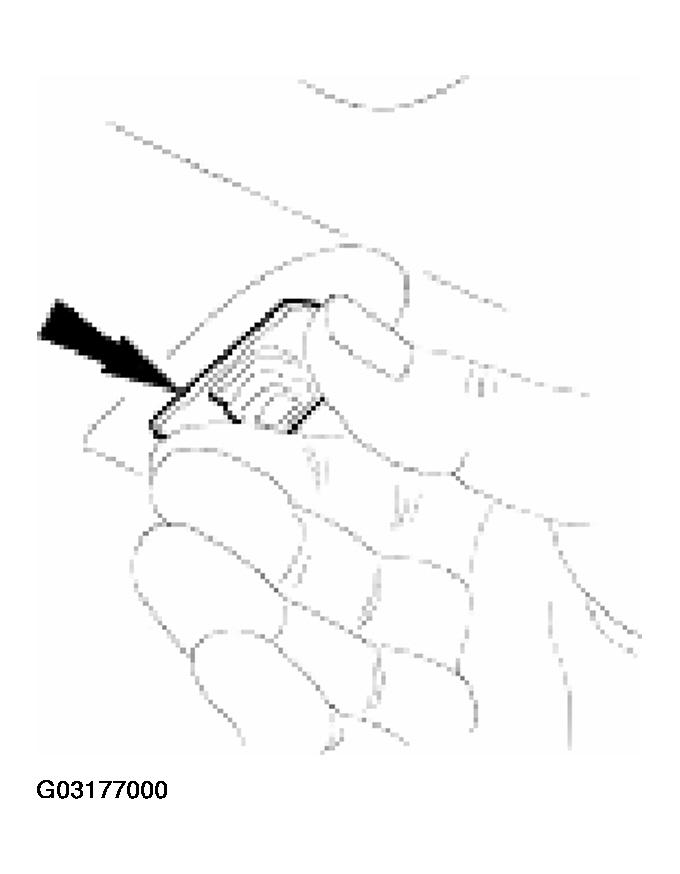

    Fig 3: Pressing Mounting Block Onto Marked Area And Holding Position
    G03177000Courtesy of JAGUAR CARS, INC.
  5. After a period of 15 minutes, remove and discard masking tape.
  6. Using a scraper, carefully remove any excess adhesive.
    7. NOTE: The following time is the MINIMUM PERIOD required for adhesive curing. Failure to allow this period will result in bonding failure, necessitating repeat of the complete procedure.
  7. After a further period of at least 6 hours, install mirror on mounting block. Refer to INTERIOR MIRROR  or AUTO-DIMMING INTERIOR MIRROR  .
  8. Install roof console. Refer to OVERHEAD CONSOLE .
  9. Install rain sensor unit. Refer to RAIN SENSOR .
  10. Remove protective cover from fascia.
  11. Connect ground cable to battery terminal and fit battery cover. Refer to BATTERY CONNECT .
