Security & Locking Control Module Connector End View
Security & Locking Control Module Connector End View

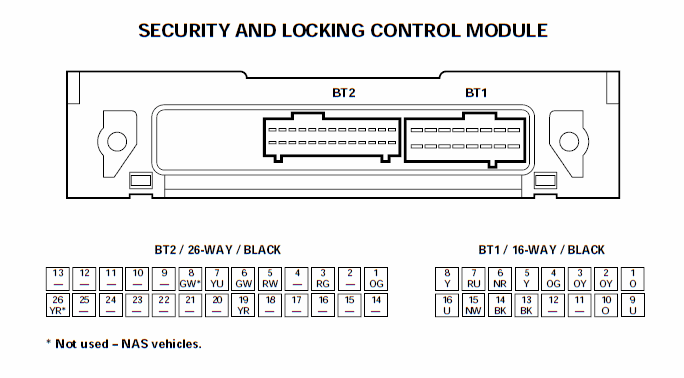

Fig 1: Security & Locking Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
