Brake Shift Interlock Actuator: Installation

  1. Installation is the reverse of the removal procedure.
  2. Fit the gearshift interlock solenoid
    1. Locate the solenoid on the latch pin.
    2. Connect the solenoid multiplug.
    3. Fit the solenoid securing nuts.

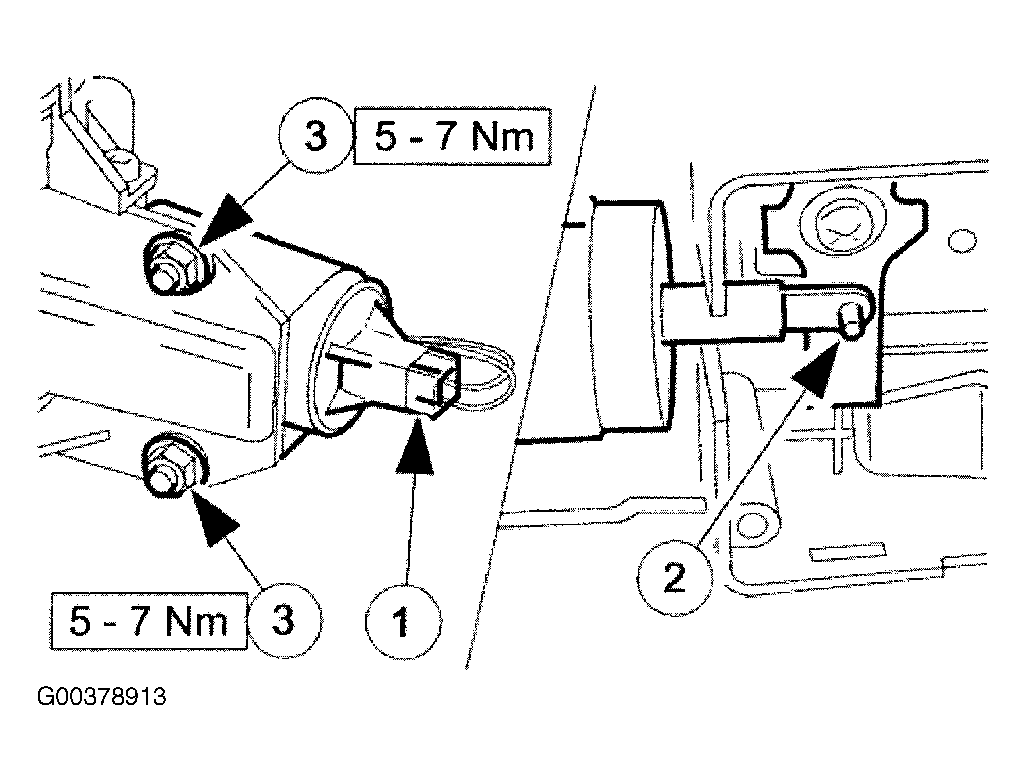

    Fig 1: Installing Gearshift Interlock Solenoid
    G00378913Courtesy of JAGUAR CARS, INC.
  3. Connect the battery and fit the battery cover.
    • Reset the radio and the clock.
