Removal and Installation: Spring: Removal

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used. See GENERAL INFORMATION for further information.

Raise front of vehicle to provide access for Special Tool 204-111.
Remove appropriate road wheel.

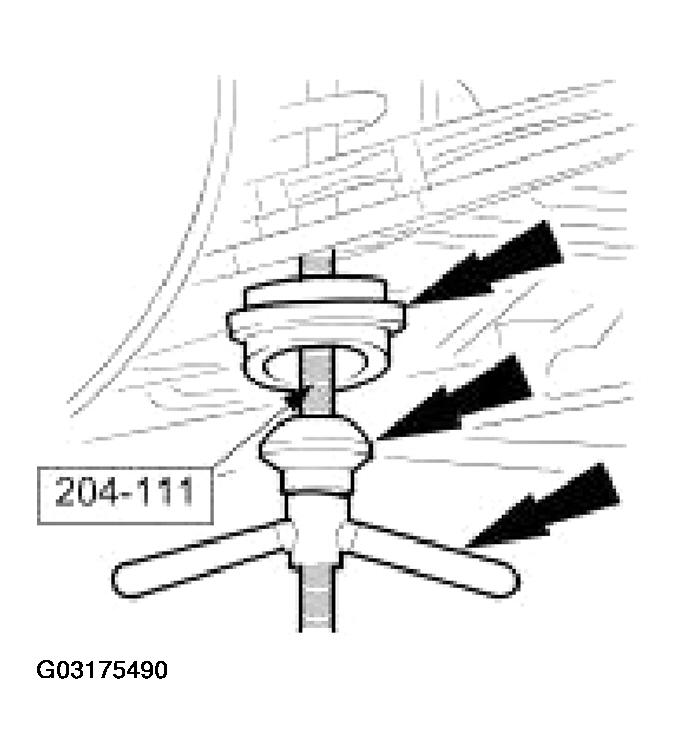

Install Special Tool 204-111 in road spring.
- Slacken tool adjuster to suit spring length.
- Install adaptor and thrust collar.
- Position stem of tool in center of spring passing dowel through slot in suspension turret.

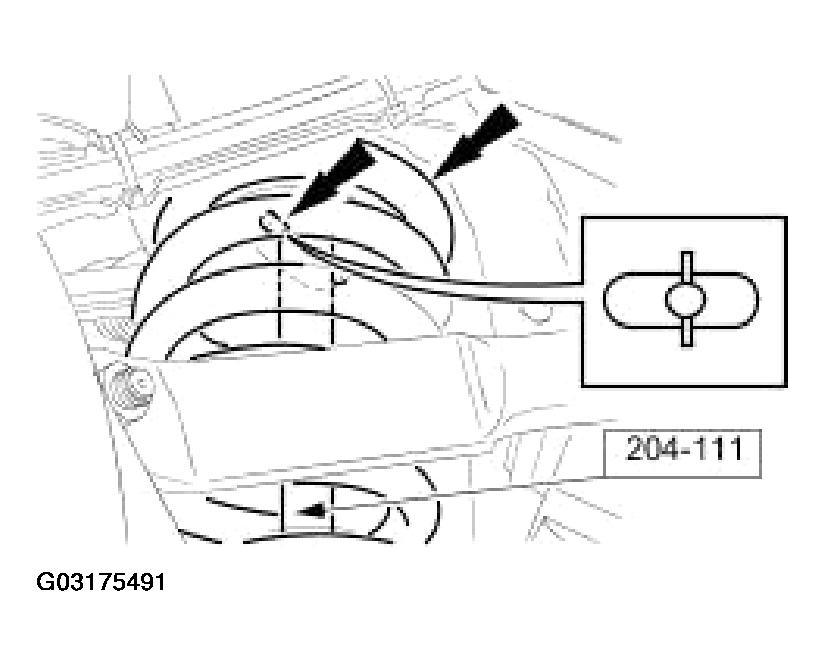

  Fig 1: Installing Special Tool 204- 111 In Road Spring
  Courtesy of JAGUAR CARS, INC.
Rotate stem of Special Tool 204-111 to position dowel across slot.

Fig 2: Rotating Stem Of Special Tool 204-111 To Position Dowel Across Slot
Courtesy of JAGUAR CARS, INC.

WARNING: WHEN TURNING TOOL ADJUSTER, ENSURE THAT TOOL STEM DOES NOT ROTATE AND DISTURB POSITION OF DOWEL IN SUSPENSION TURRET.

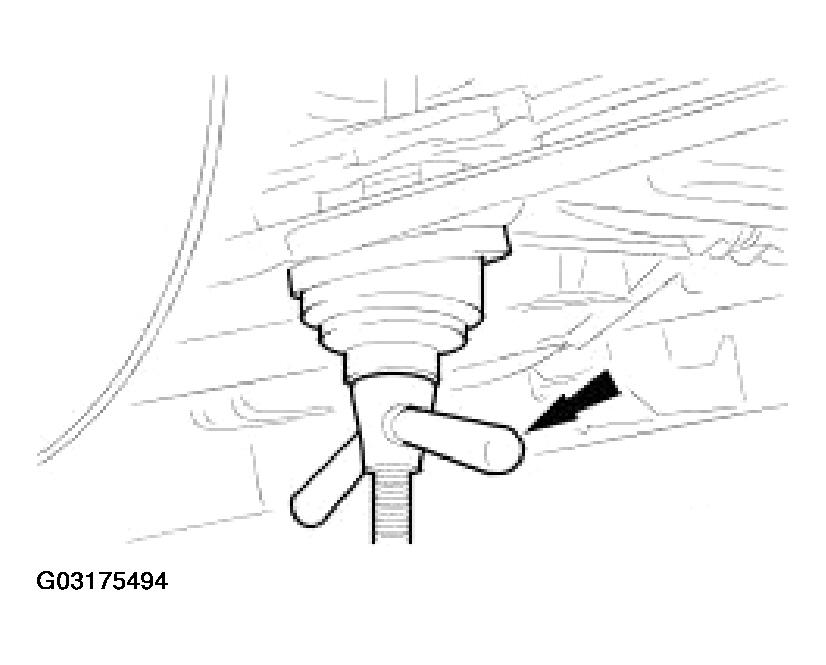

Fig 3: Rotating Adjuster Of Special Tool To Tension Spring

Courtesy of JAGUAR CARS, INC.

Rotate adjuster of Special Tool to tension spring.
Remove spring pan to lower wishbone securing bolts.

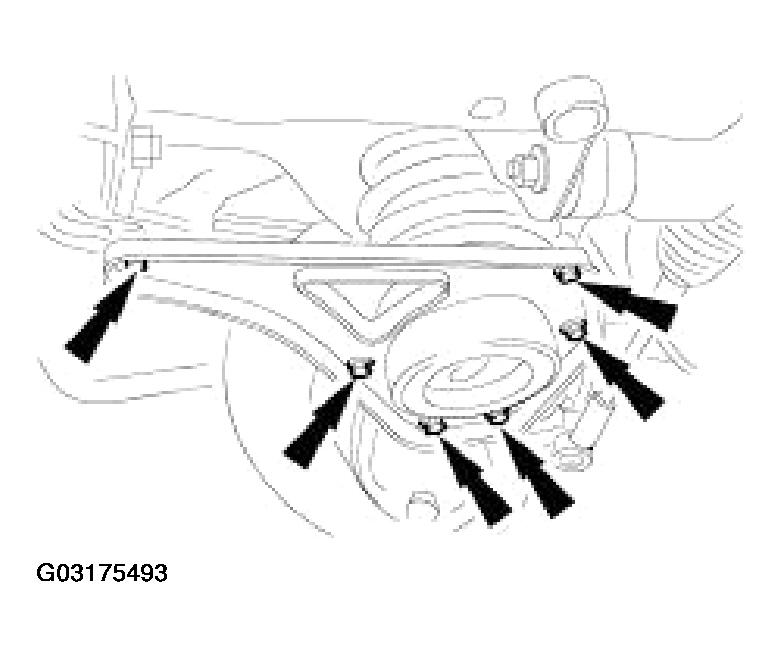

Fig 4: Removing Spring Pan To Lower Wishbone Securing Bolts
Courtesy of JAGUAR CARS, INC.

WARNING: WHEN TURNING TOOL ADJUSTER, ENSURE THAT TOOL STEM DOES NOT ROTATE AND DISTURB POSITION OF DOWEL IN SUSPENSION TURRET.

Fig 5: Rotating Adjuster Of Special Tool To Release Tension From Spring

Courtesy of JAGUAR CARS, INC.

Rotate adjuster of Special Tool to release tension from spring.
Remove spring assembly and Special Tool from suspension turret.
Remove Special Tool from spring assembly.
