Audio System

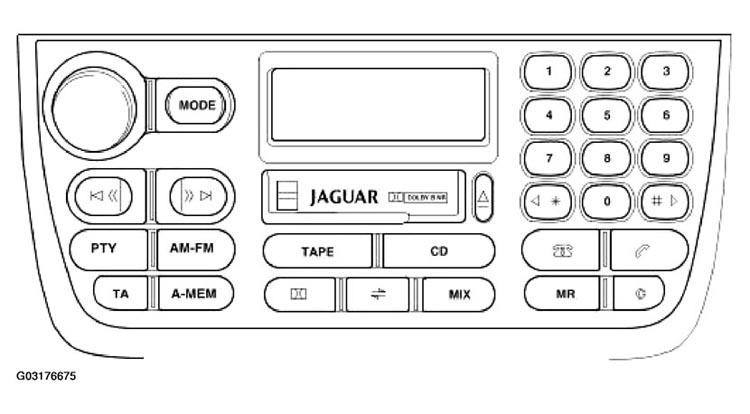

Fig 1: Identifying Audio System Control
G03176675Courtesy of JAGUAR CARS, INC.

The choice of two entertainment systems is available; base or premium.

The base system comprises a radio cassette player with integral message display and ' Phone Ready' controls for an accessory telephone; door speakers and tweeters.

The premium system has the following additional components: power amplifier, CD autochanger, sub-woofer and 'A' post tweeters fitted instead of front door tweeters.

Both systems can be operated remotely by use of switches located on the steering wheel and have an electrically operated aerial.

Telephone controls incorporated in the radio cassette unit facilitate inclusion of the GSM hands free telephone system available as optional equipment.

After diagnostic or repair operations, refer to the Sound System Handbook for setting-up procedures and operation.

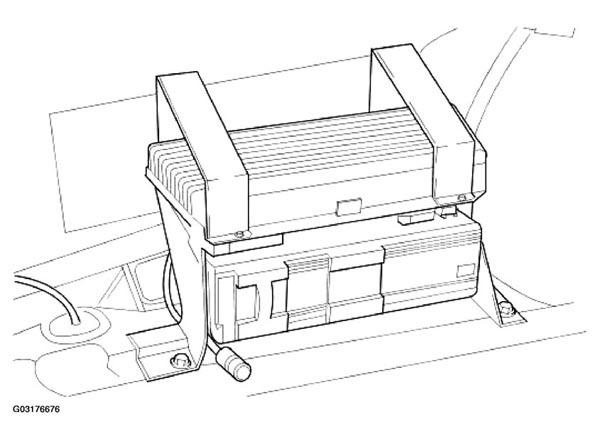

Fig 2: Identifying CD Autochanger And Amplifier
G03176676Courtesy of JAGUAR CARS, INC.

The CD Autochanger and amplifier are mounted on a bracket as a single assembly located at the left hand side of the trunk. The complete assembly must be removed before the CD Autochanger and amplifier can be separated.

When the CD option is selected, the CD unit cycles through a self-check sequence and indicates the current status on the message display. Refer to the Sound System Handbook for complete operating instructions.
