Steering Column Multifunction Switch: Installation

  1. Install and align the cancellation module and switch assemblies to the steering column mounting bracket.
    • Install and align the flasher switch assembly to the module mounting bracket (1).
    • Install and align the washer switch assembly to the module mounting bracket (2).
    • Install and align the switchgear assembly to the steering column (3).
    • Install and tighten the switch assemblies/cancellation module securing screws (4).

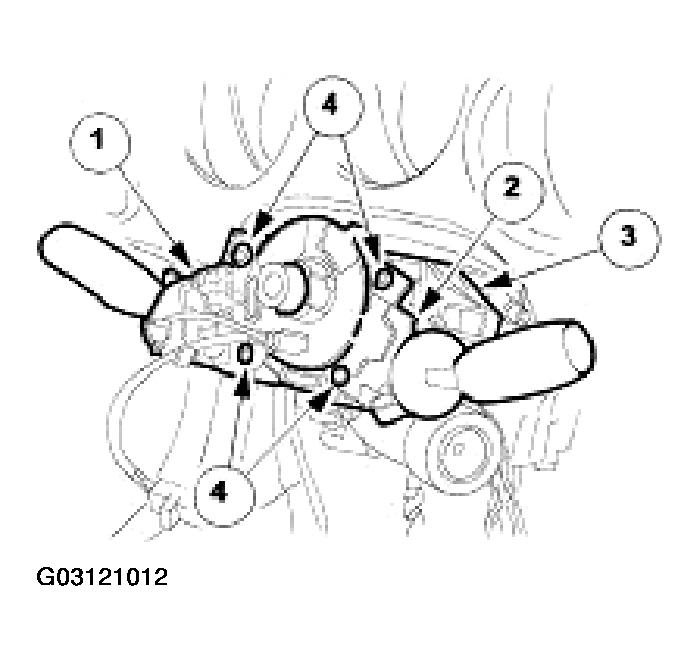

      Fig 1: Installing Cancellation Module/Switch Assemblies
      G03121012
  2. Connect the module harness multiplugs and install in the mounting bracket.
    • Connect the module harness multiplugs (1).
    • Install the multiplugs in the mounting bracket (2).
    • Connect the switch assembly multiplugs (3).
    • Install the multiplugs in the mounting bracket (4).

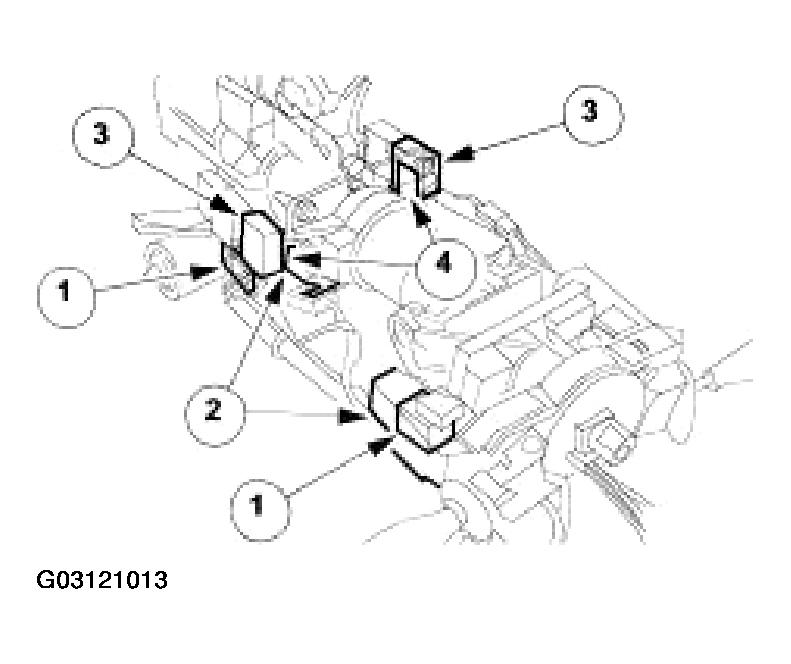

      Fig 2: Connecting And Mounting Module Harness Multiplugs
      G03121013
  3. Install the steering wheel; refer to STEERING WHEEL .
  4. Install the air bag; refer to DRIVER-SIDE AIR BAG MODULE .
  5. Install the steering column upper cowl.
  6. Install the steering column lower cowl; refer to STEERING COLUMN LOWER SHROUD .
  7. Install the underscuttle; refer to INSTRUMENT PANEL LOWER TRIM PANEL .
  8. Reconnect the battery ground cable.

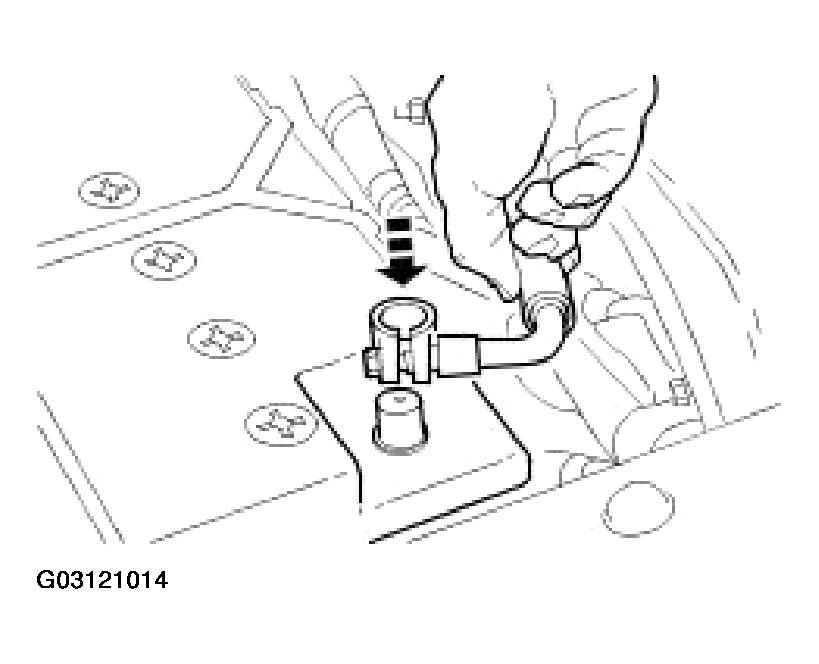

    Fig 3: Reconnecting Battery Ground Cable
    G03121014
  9. Install the battery cover.
