Steering Column Control Switch: Removal

  1. Power the driver's seat to the lowest and most rearward position.

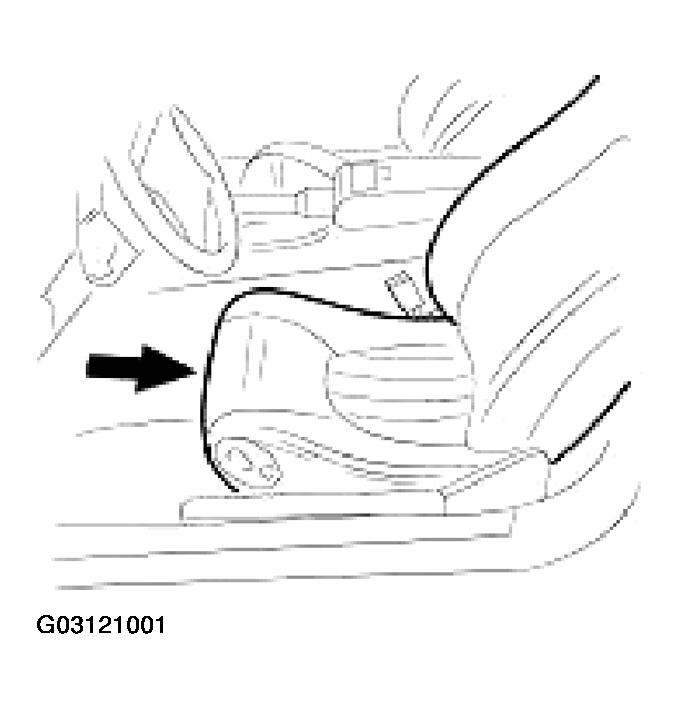

    Fig 1: Sliding Driver'S Seat To Lowest And Most Rearward Position
    G03121001
  2. Remove the steering column lower cowl; refer to STEERING COLUMN LOWER SHROUD .
  3. Remove the column adjustment switch.
    • Disconnect the rheostat multiplug (1).
    • Disconnect the column switch harness multiplug (2).
    • Remove the cowl and switch assembly (3).
    • Release the column switch retaining tangs and withdraw the switch (4).

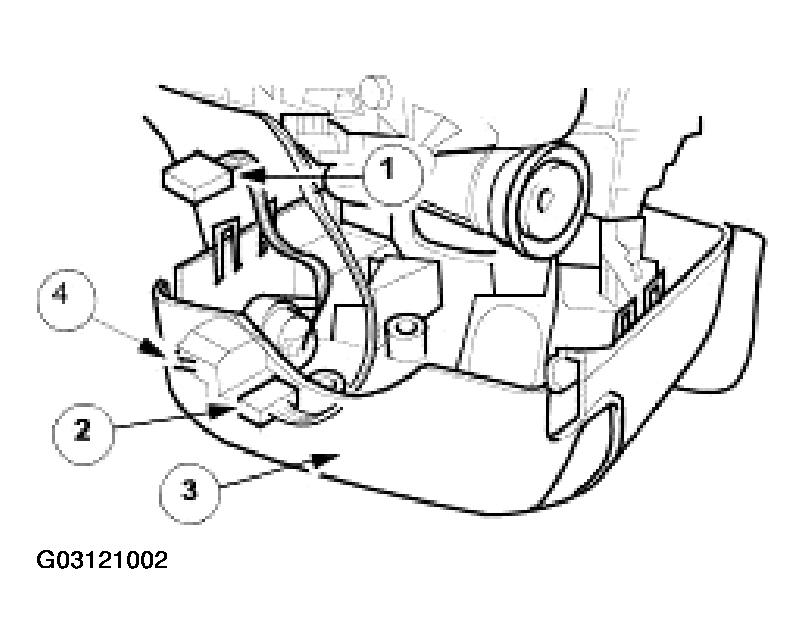

      Fig 2: Removing Column Adjustment Switch
      G03121002
