Wheel Speed Sensor Ring: Installation

  1. If necessary, install a grease deflector ring to the rotor nut. Refer to WHEEL SPEED SENSOR RING GREASE DEFLECTOR   .
  2. Install rotor nut to hub.
    • Install rotor nut (1).
    • Using special tool tighten rotor nut (2).

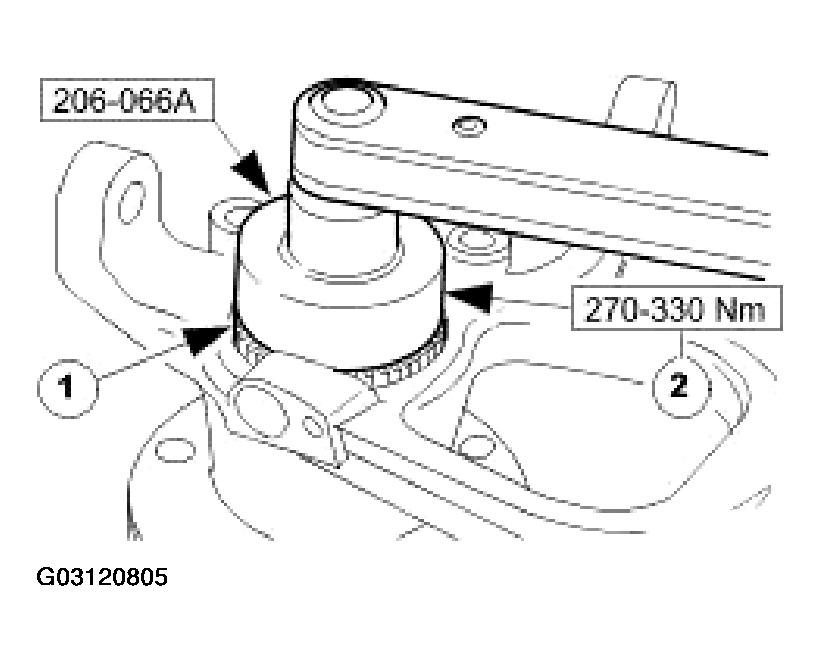

      Fig 1: Fitting Rotor Nut To Hub
      G03120805
    3. CAUTION: Do not slacken the rotor nut to engage the spring clip.
  3. Install rotor nut spring-clip.
    • Install spring clip into the hub retaining holes and, if aligned, into the castellated slots of the rotor nut.
    • If the castellated slots of the rotor nut are not aligned it will be necessary to tighten the rotor nut further until the spring clip engages the slots.

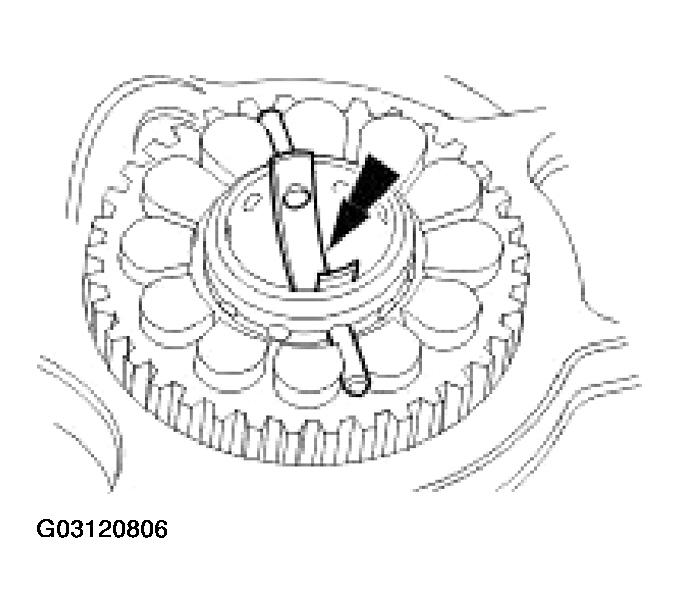

      Fig 2: Installing Rotor Nut Spring-Clip
      G03120806
  4. Remove vertical link and hub assembly from special tool.
  5. Install disc shield to vertical link.
    • Position disc shield (1).
    • Install and tighten bolts (2).

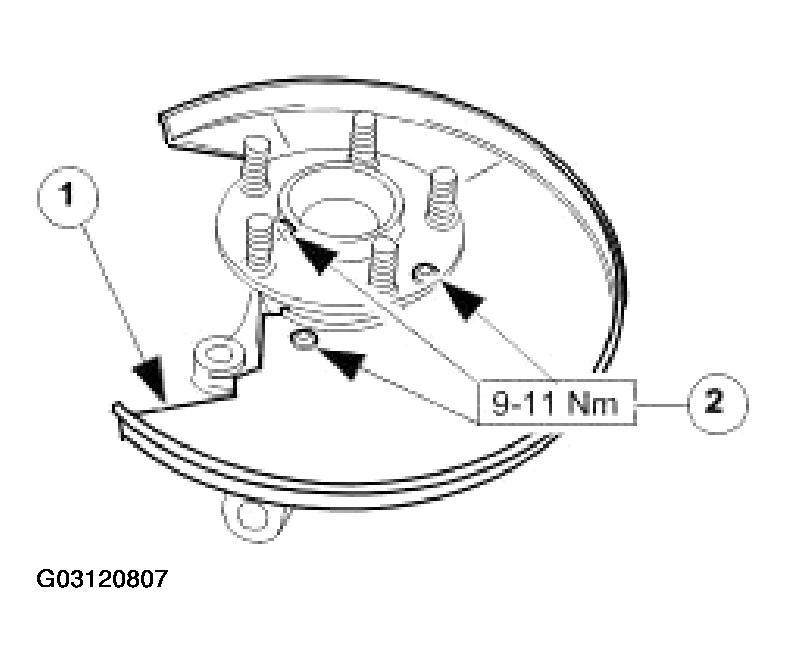

      Fig 3: Fitting Disc Shield To Vertical Link
      G03120807
  6. Install vertical link and hub assembly to vehicle. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY .
  7. Install brake disc. Refer to FRONT DISC BRAKE ROTOR .
  8. Install wheel. Refer to WHEEL AND TIRE .
  9. Remove stands and lower vehicle.
