Wheel Speed Sensor Ring Grease Deflector: Installation

  1. Install grease deflector to rotor nut.
    • Install the grease deflector ring as shown in Fig 1, with deflectors towards rotor teeth.
    • The distance at 'A' must be 0.5 mm.

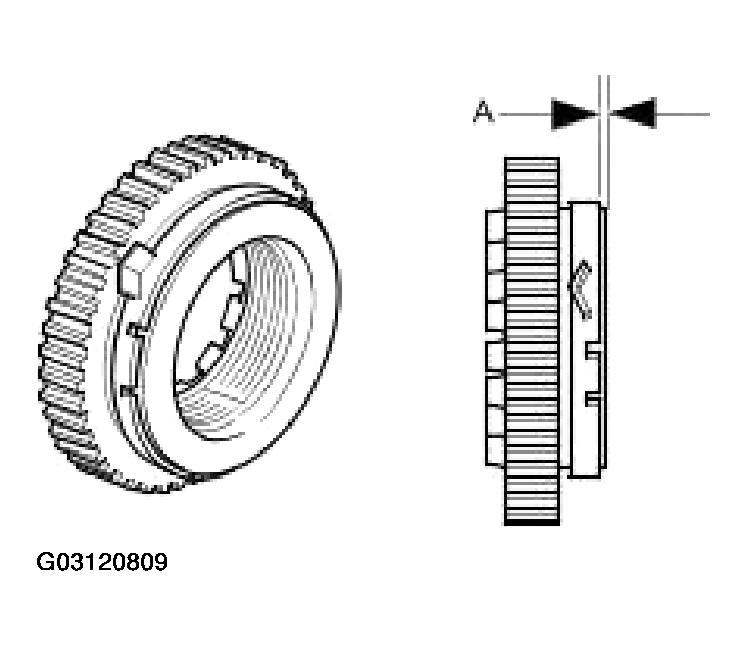

      Fig 1: Measuring Grease Deflector Clearance
      G03120809
  2. Install ABS hub rotor nut to vertical link and hub assembly. Refer to WHEEL SPEED SENSOR RING  .
  3. Install disc shield to vertical link.
    • Position disc shield (1).
    • Install and tighten bolts (2).

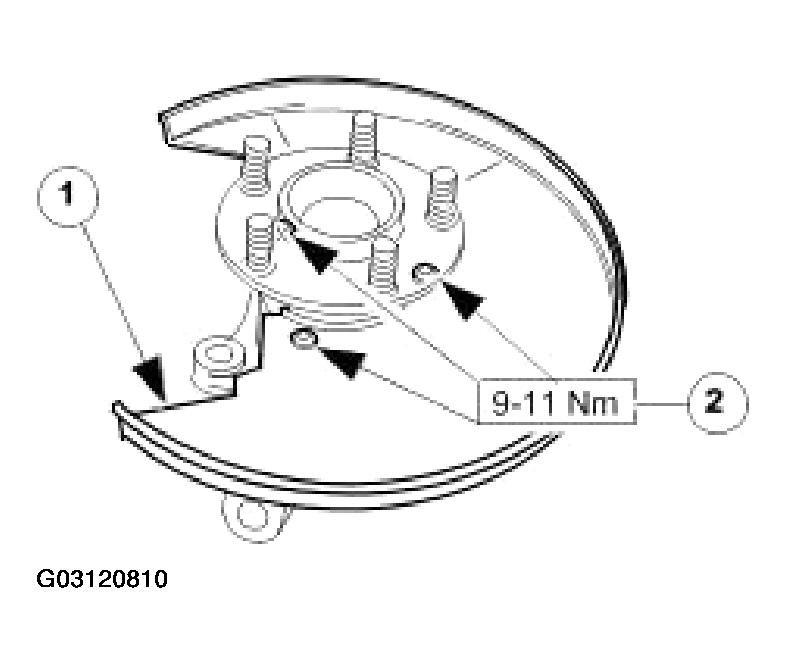

      Fig 2: Installing Disc Shield To Vertical Link
      G03120810
  4. Install vertical link and hub assembly to vehicle. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY .
  5. Install brake disc. Refer to FRONT DISC BRAKE ROTOR .
  6. Install wheel. Refer to WHEEL AND TIRE .
  7. Remove stands and lower vehicle.
