Anti-Lock Brake System (ABS) Module: Installation

Install ABS/TCCM, take care not to damage brake tubes.
- Install and tighten bolts.

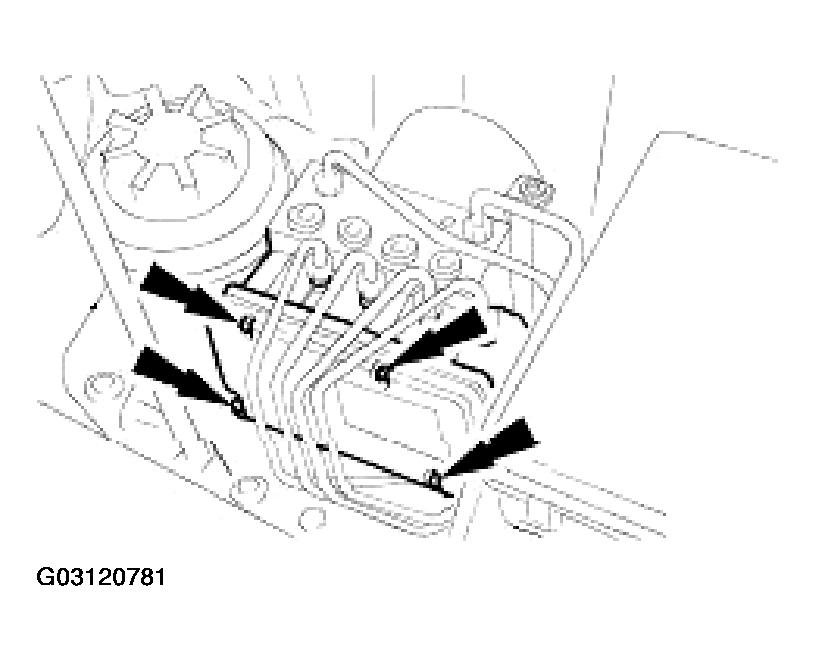

  Fig 1: Installing ABS/TCCM
Install brake tubes.
- Remove plugs from ports and brake tubes.
- Install brake tubes and tighten union nuts. Refer to SPECIFICATIONS for torque setting.

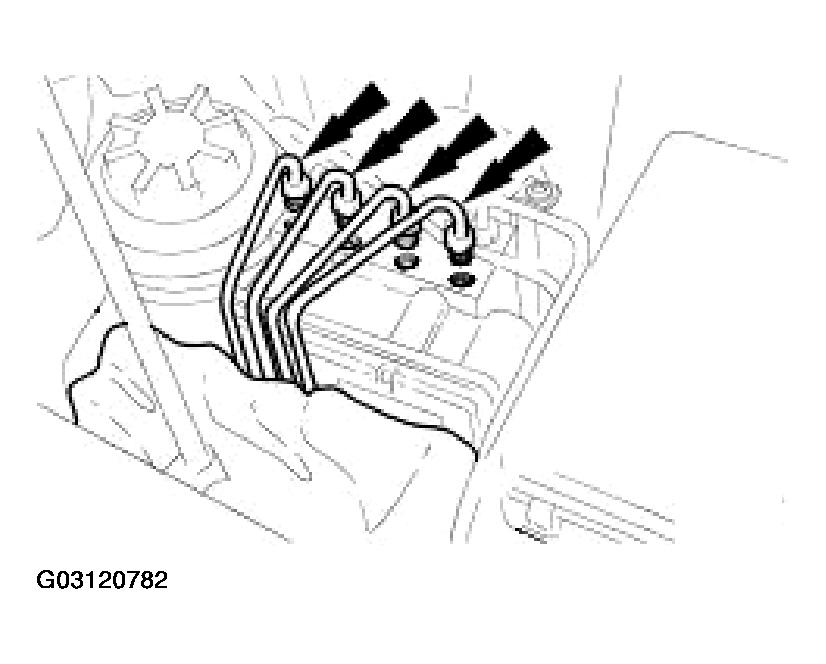

  Fig 2: Installing Brake Tubes
Connect upper electrical connector.
- Push plunger down to secure connector.

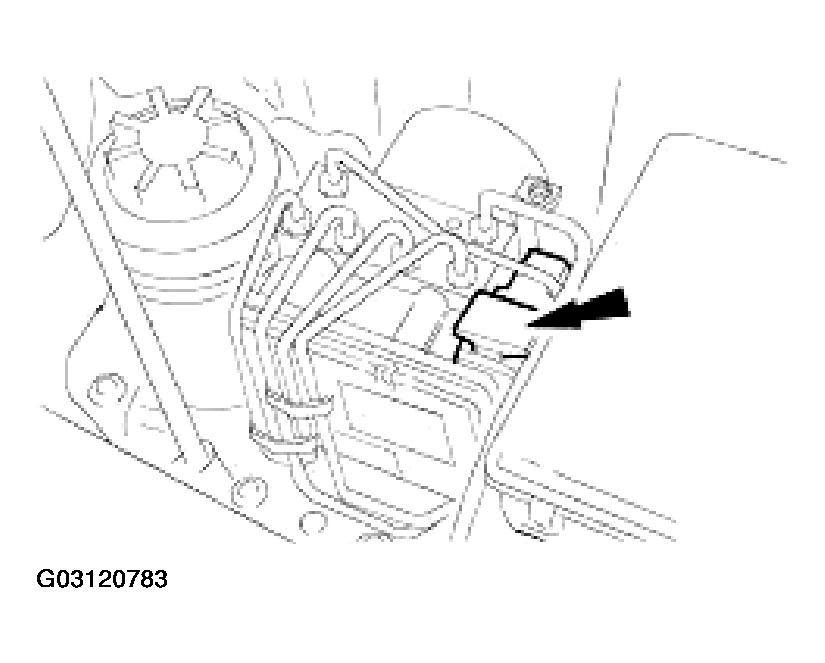

  Fig 3: Connecting Upper Electrical Connector
Install elbow to washer bottle filler neck.
- Install 'O'-ring seal.
- Install elbow.

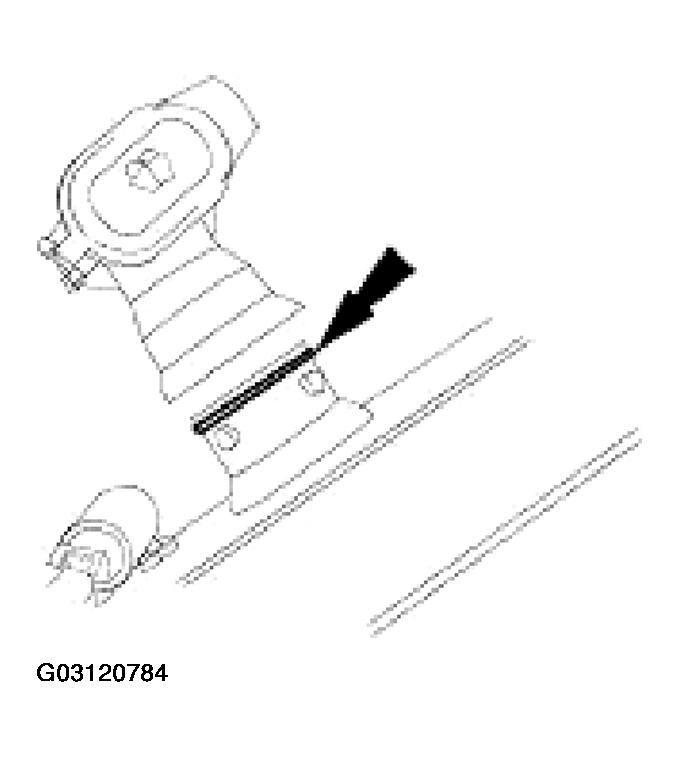

  Fig 4: Installing Elbow To Washer Bottle Filler Neck
Remove special tool from brake pedal.
Reconnect battery ground cable. Refer to BATTERY RECONNECTION PROCEDURE .
Bleed brake system. Refer to BLEEDING PROCEDURE .
