Driver Seat Module (DSM): Removal

  1. Disconnect the battery ground cable. Refer to BATTERY DISCONNECTION PROCEDURE .
  2. Detach the driver seat module (DSM) and mounting bracket.

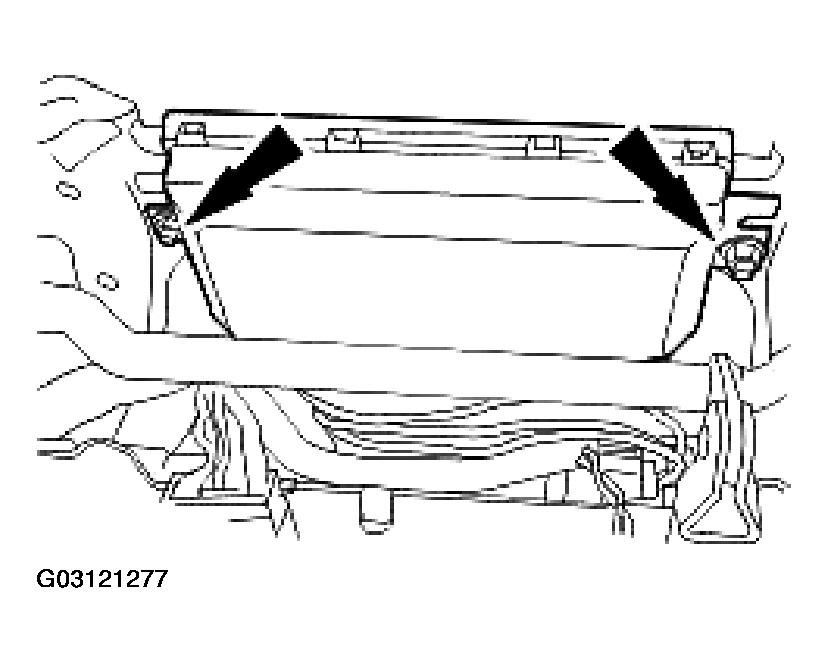

    Fig 1: Detaching Driver Seat Module (DSM) And Mounting Bracket
    G03121277
  3. Remove the DSM and mounting bracket.
    • Disconnect the electrical connectors.

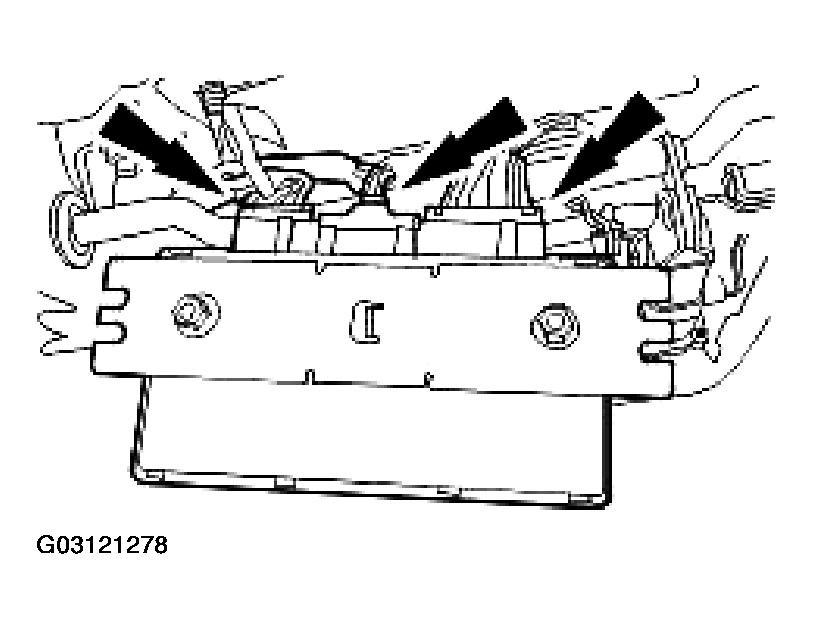

      Fig 2: Disconnecting Electrical Connectors
      G03121278
  4. Remove the DSM

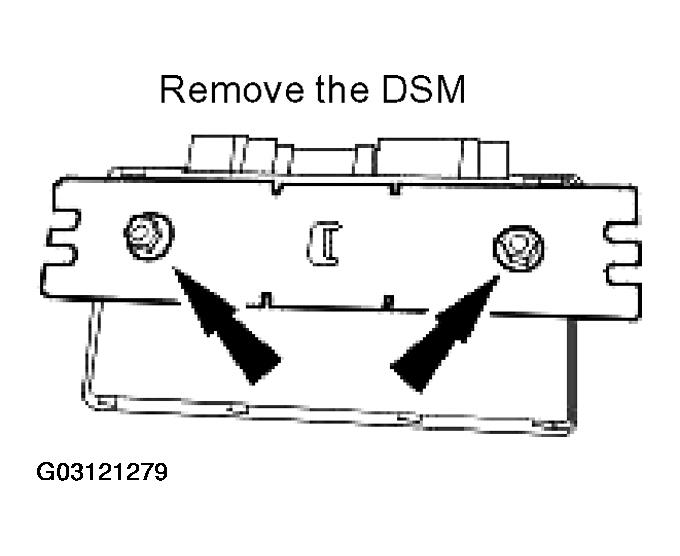

    Fig 3: Removing DSM
    G03121279
