Driver Door Module (DDM): Removal

Open the driver's door, or both doors if necessary, to allow the side windows to drop. Ensure that the doors remain open until after the battery has been disconnected.
Disconnect the battery ground cable.
- Remove the battery cover.

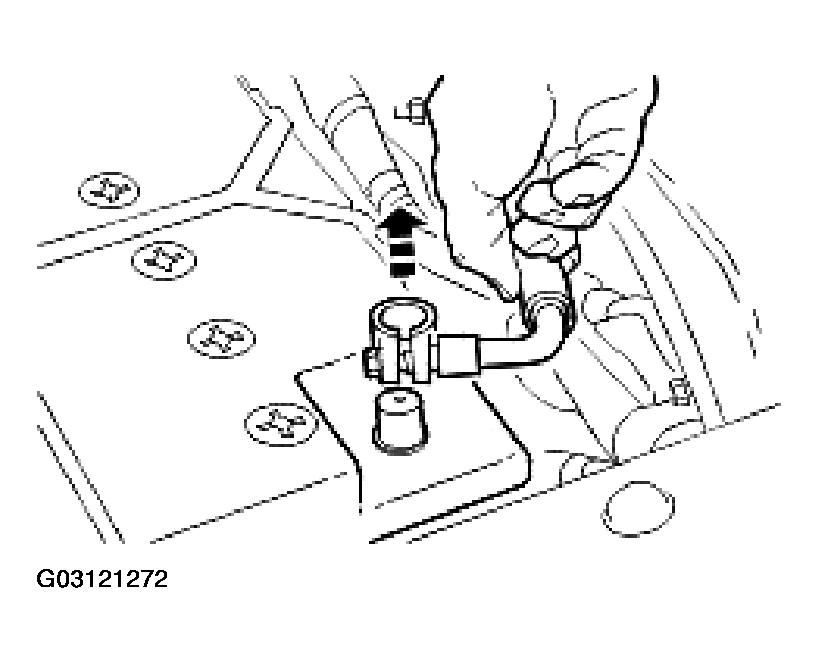

  Fig 1: Disconnecting Battery Ground Cable
Remove the trim pad from the door; refer to DOOR TRIM PANEL .
Remove the door speaker from the door.
- Remove the four bolts which secure the speaker.

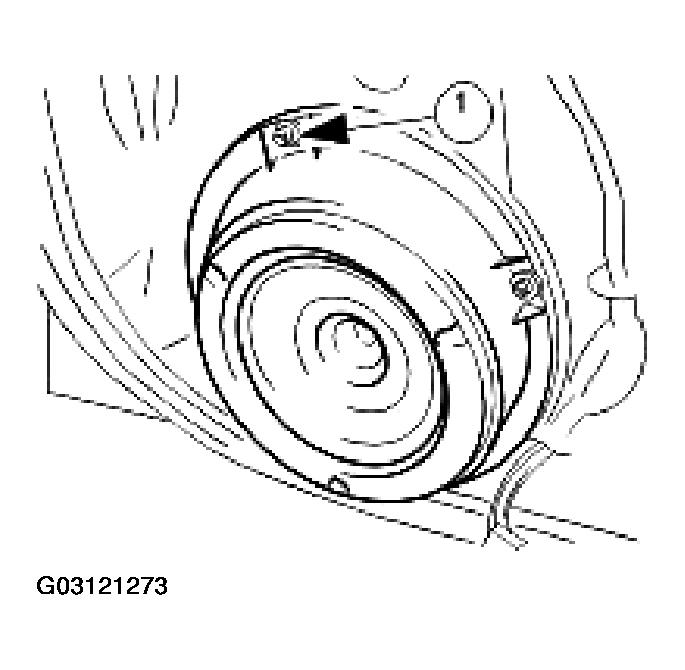

  Fig 2: Removing Door Speaker
Disconnect and remove the speaker.
- Support the speaker, disconnect the multi-plug and remove the speaker.

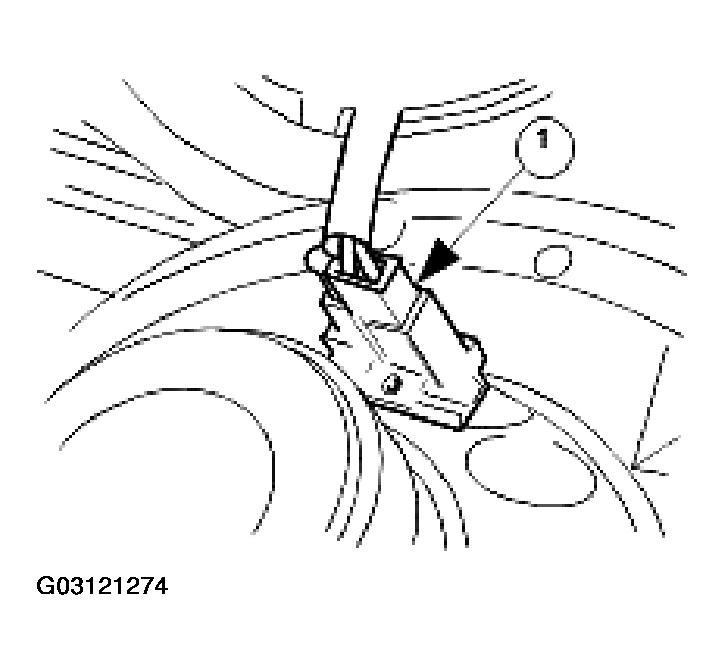

  Fig 3: Disconnecting Speaker
Disconnect the door module.
- Remove the three screws which secure the module to the door.
- Reposition the module outwards through the speaker aperture.

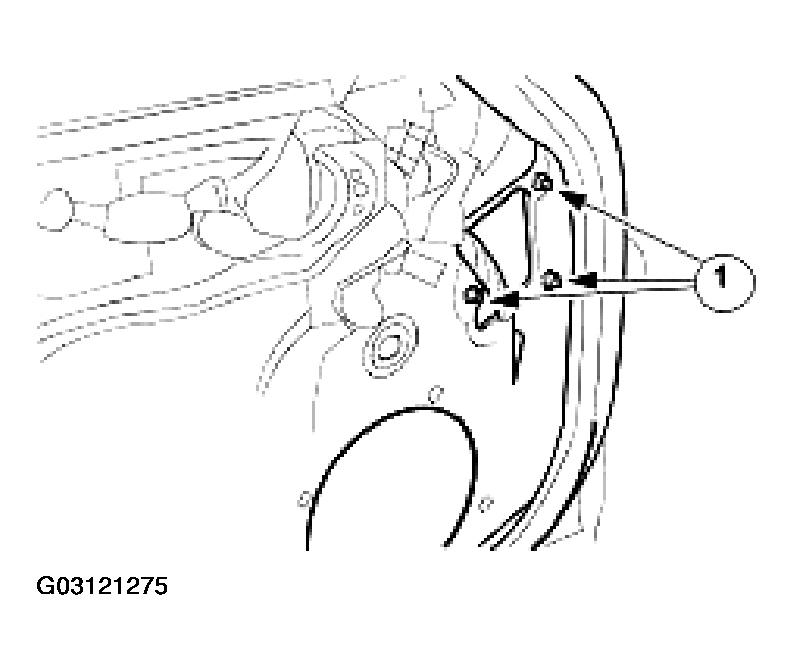

  Fig 4: Removing Screws Which Secure Module To Door
Disconnect the harness from the module.
- Disconnect the two multi-plugs (1).
- Remove the module (2).

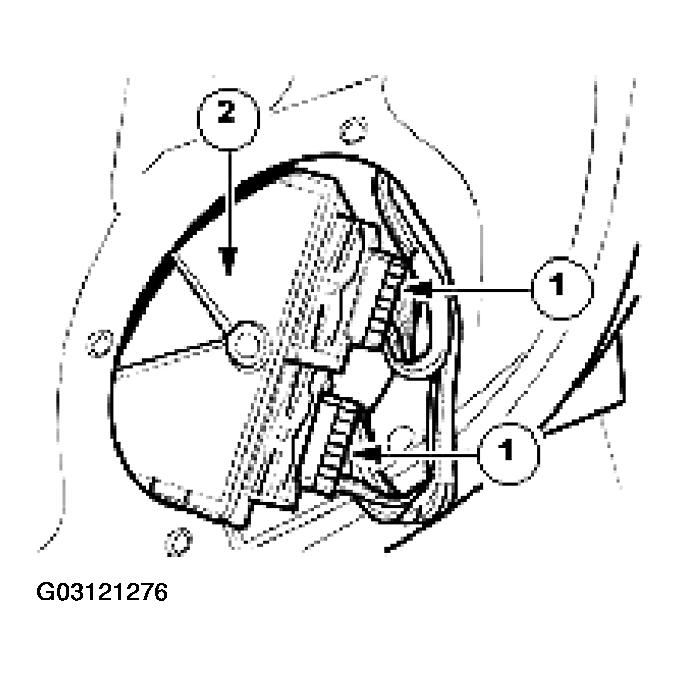

  Fig 5: Removing Module
If necessary remove the foam gasket from the module; note that a new gasket must be fitted when installing a new module.
