Interior Lighting

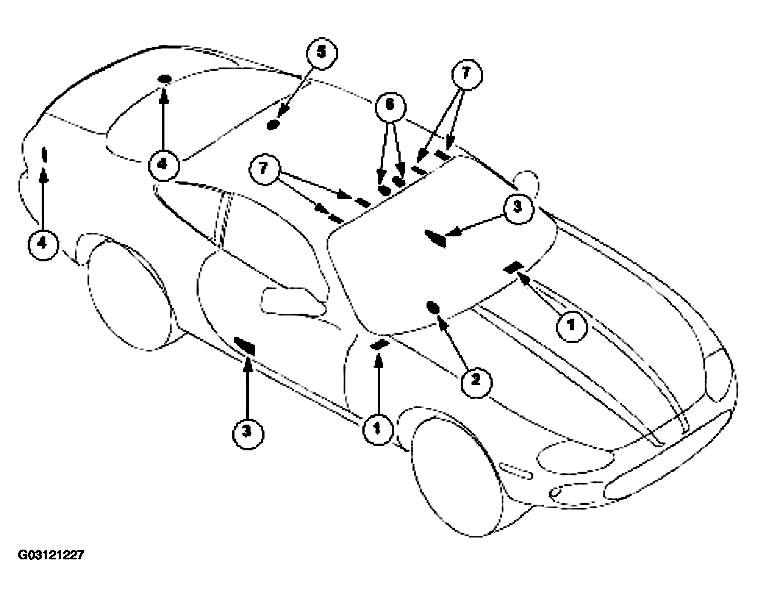

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Footwell Lamps |
| 2 | - | Glovebox Lamp |
| 3 | - | Door Guard / Puddle Lamps |
| 4 | - | Luggage Compartment Lamps |
| 5 | - | Roof Rear Lamp (Coupe Only) |
| 6 | - | Roof Console Map/Courtesy Lamps |
| 7 | - | Sun Visor Vanity Mirror Lamps |
Two footwell lamps are fitted, one at each end of the fascia lower rail. They are not fitted with manual switches and operate only when either or both doors are opened.
The glovebox lamp operates whenever the glovebox lid is opened. The lamp comprises a combined switch and bulb holder assembly, and a white lens.
A lamp is fitted to the rear lower corner of each door. Each has a double lens; red to project rearwards to warn oncoming traffic that the door is open and white to project down onto the ground. They are not fitted with manual switches and operate only when either or both doors are opened.
A lamp is fitted to each rear corner of the luggage compartment, adjacent to the rear lamp assemblies. They are operated automatically whenever the luggage compartment lid is opened; the switch is incorporated within the latch mechanism.
The roof rear lamp is fitted to the coupe only. It is not fitted with a manual switch and operates only when either or both doors are opened.
The two lamps located in the roof console, function as map reading lamps and as courtesy lamps. Individual switches control each lamp manually and the door switches control the lamps automatically to provide the courtesy lamp function
The vanity mirror lamps, two on each sun visor, operate automatically when the mirror flap is opened. The lamps will operate only when the sun visor spindle is engaged in the stowage clip.
