Transmission Range (Tr) Sensor: Removal

  1. Remove the battery cover and disconnect battery ground cable.
  2. From above, disconnect the rotary switch harness multiplug.

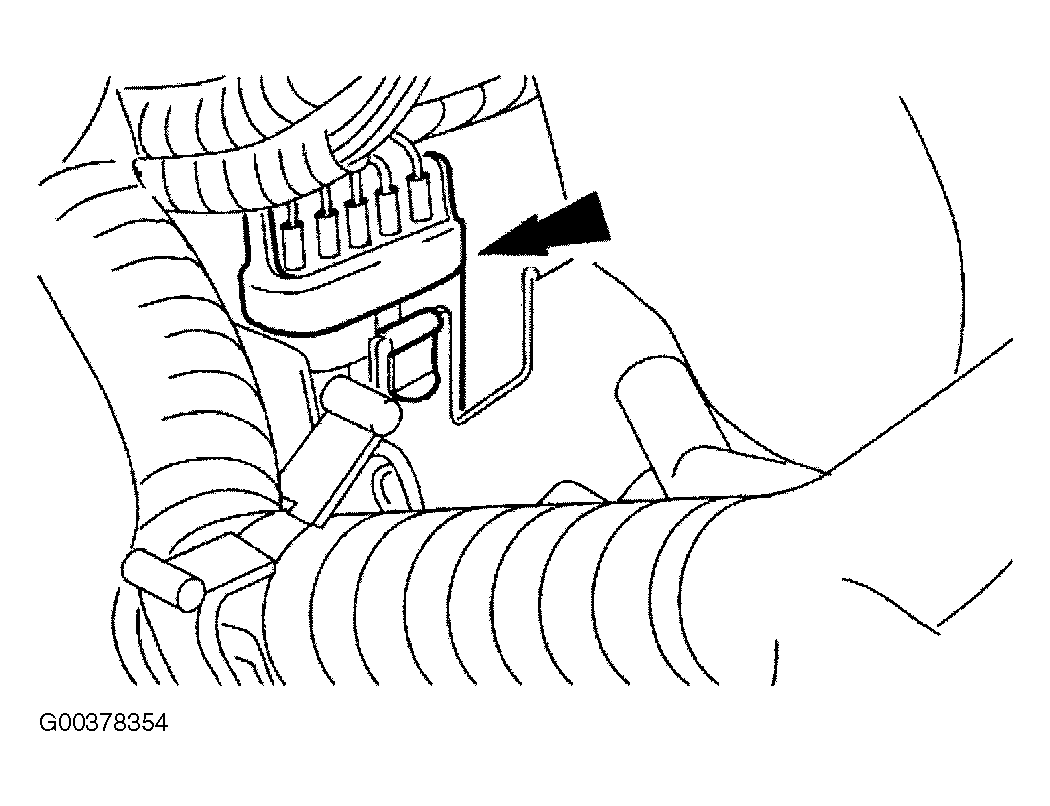

    Fig 1: Disconnecting & Connecting Rotary Switch Harness Connector
    G00378354Courtesy of JAGUAR CARS, INC.
  3. From below, release the harness from the retaining clips.
    Fig 2: Removing Transmission Rotary Switch
    G00355862Courtesy of JAGUAR CARS, INC.
