Transmission Fluid Pan: Removal

  1. Raise the vehicle on a suitable lift.
      WARNING: TRANSMISSION FLUID MAY CAUSE SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES ARE OBSERVED.
    • Carefully remove the drain plug and drain the transmission fluid. See Figure.
  2. Remove the twenty-two fixings which secure the fluid pan.
    • Remove the fluid pan and all traces of gasket material.

    See Figure.

  3. Discard the fluid pan gasket and clean the mating faces.
  4. Remove the magnets from the fluid pan.
    • Clean the magnets and refit them to the fluid pan.

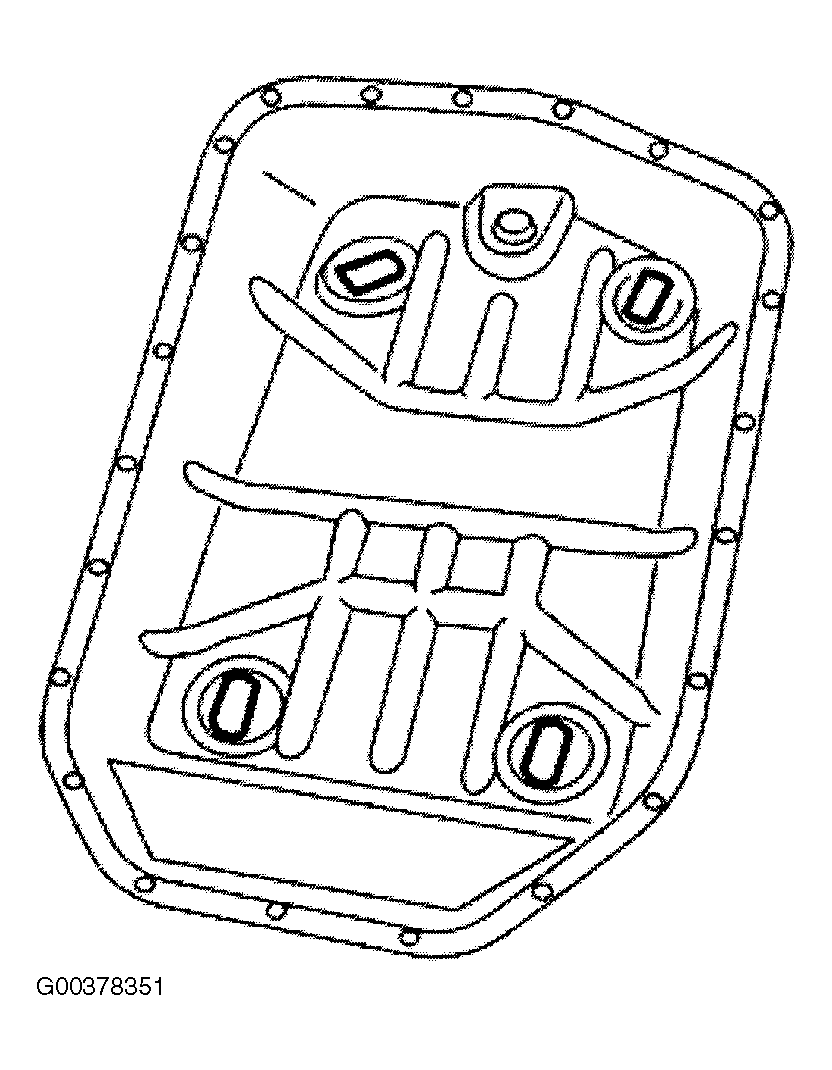

    Fig 1: Removing & Installing Fluid Pan Magnets
    G00378351Courtesy of JAGUAR CARS, INC.
