Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering System-General Information
>>
Diagnosis and Testing
>>

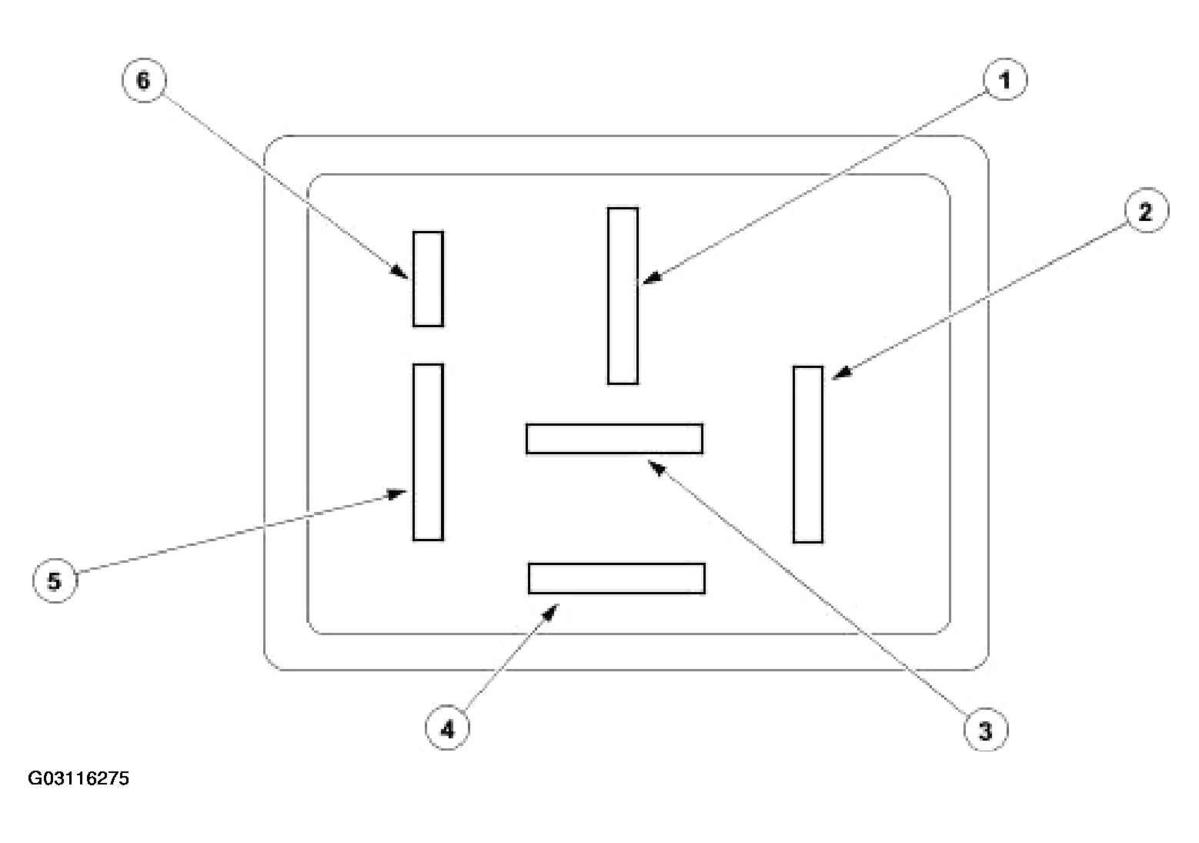

Steering Relay Harness Connector
Steering Relay Harness Connector
STEERING RELAY HARNESS CONNECTOR PINS IDENTIFICATION/DESCRIPTION
Item
Description
1
Steering transducer ground
2
Ignition feed
3
Steering transducer feed
4
Ground
5
Speed sensor signal
6
Serial interface
