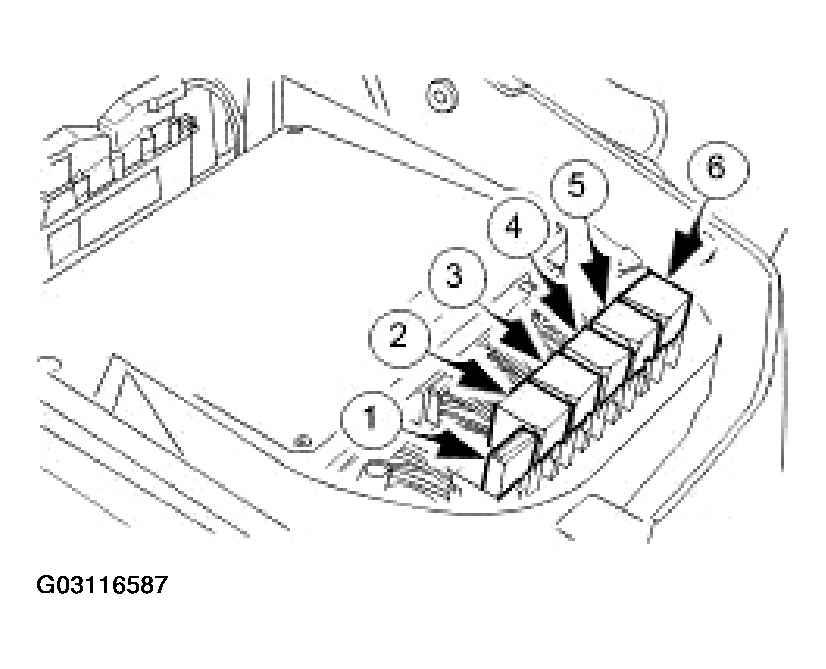

Engine and Transmission Control Module Compartment Relays
ENGINE AND TRANSMISSION CONTROL MODULE COMPARTMENT RELAYS DETAILS
|
|
| Relay No |
Color |
Circuit |
| 1 |
Blue |
SC coolant water pump |
| 2 |
Brown |
Fuel injection main |
| 3 |
Brown |
Ignition coils |
| 4 |
Brown |
Throttle motor |
| 5 |
Brown |
Starter solenoid |
| 6 |
Brown |
Air conditioning compressor clutch |
