Accelerator Pedal - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
GJ0003279Courtesy of JAGUAR CARS, INC.
  1. Remove the driver side instrument panel lower panel.

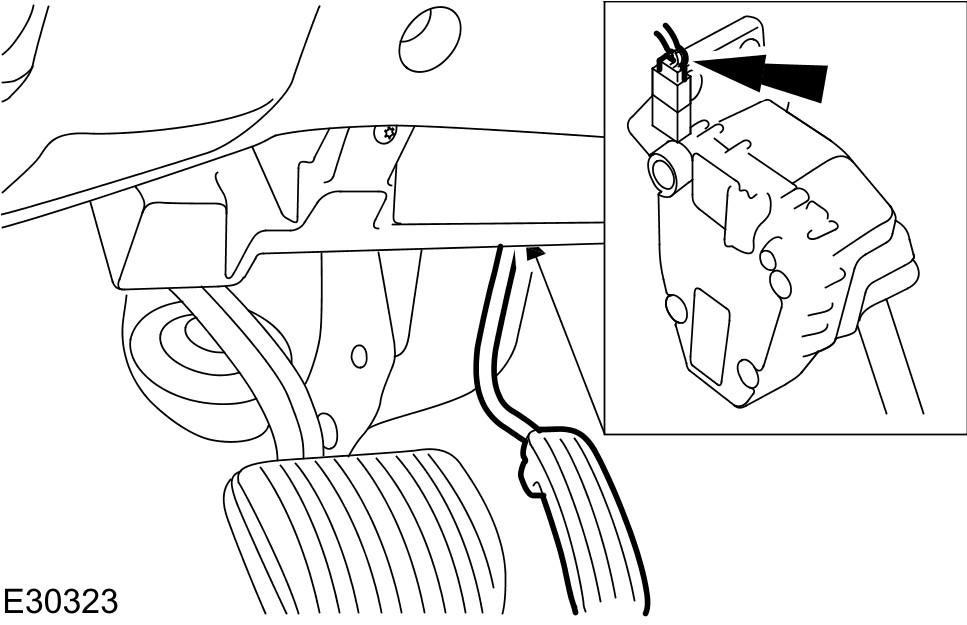

    GJ0003798Courtesy of JAGUAR CARS, INC.
  2. Disconnect the accelerator pedal electrical connector.
    GJ0003799Courtesy of JAGUAR CARS, INC.
  3. Remove the accelerator pedal.
    • Remove the accelerator pedal retaining screws.
    • Remove the accelerator pedal.
