Component Locations

COMPONENT LOCATIONS

Component	Location
A/C 4-Way Pressure Switch	On A/C Line, Lower Rear Of Radiator Assembly. See Fig 1.
Cooling Fans	On Rear Of Radiator Assembly. See Fig 2.
Engine Coolant Temperature (ECT) Sensor	In Coolant Outlet Pipe. See Fig 3.
Engine Control Module (ECM)	In Control Module Enclosure, Right Rear Of Engine Compartment. See Fig 4.
Engine Management System (EMS) Control Relay	In Engine Management Fuse Box, Left Side Of Engine Compartment. See Fig 5.
Radiator Fan Control Relay Module	Next To Left Horn On Bumper Assembly.

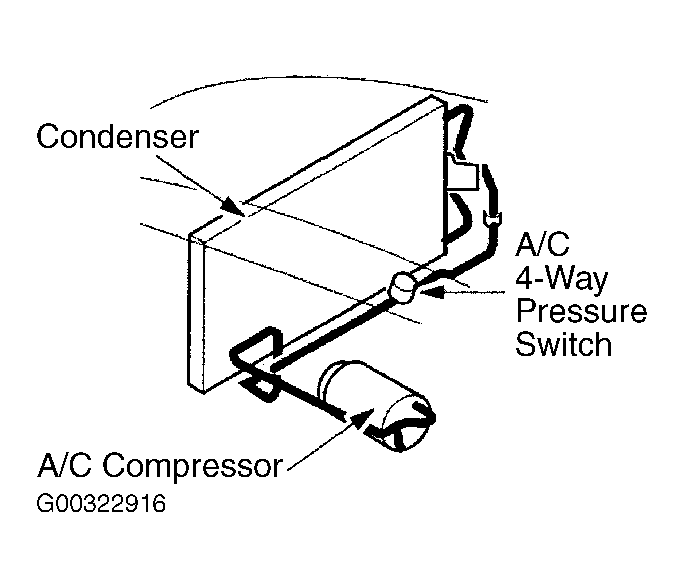

Fig 1: Locating A/C 4-Way Pressure Switch

Courtesy of JAGUAR CARS, INC.

Fig 2: Locating Radiator Fan Assembly

Courtesy of JAGUAR CARS, INC.

Fig 3: Locating Engine Coolant Temperature (ECT) Sensor

Courtesy of JAGUAR CARS, INC.

Fig 4: Locating Control Modules

Courtesy of JAGUAR CARS, INC.

Fig 5: Locating EMS Control Relay & Engine Compartment Fuse/Relay Boxes

Courtesy of JAGUAR CARS, INC.
