Module - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
  1. Disconnect the battery ground cable. Refer to Battery, Mounting and Cables .
    GJ0003210Courtesy of JAGUAR CARS, INC.
  2. Detach the luggage compartment side trim panel.
    1. Remove the luggage compartment side trim panel retaining clip.
    2. Detach the luggage compartment side trim panel.
    GJ0003216Courtesy of JAGUAR CARS, INC.
  3. Disconnect the electrical connectors.
    GJ0003217Courtesy of JAGUAR CARS, INC.
  4. Detach the module mounting bracket.
    GJ0003218Courtesy of JAGUAR CARS, INC.
  5. Remove the module mounting bracket.
    • Disconnect the electrical connectors.
    GJ0003921Courtesy of JAGUAR CARS, INC.
  6. Detach the module mounting bracket.

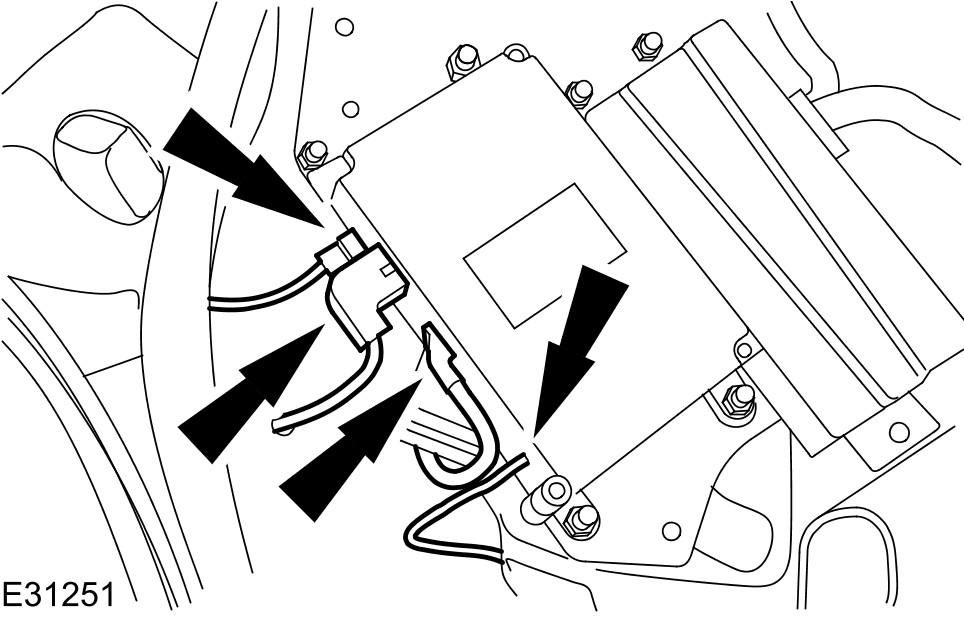

    GJ0004660Courtesy of JAGUAR CARS, INC.
  7. Disconnect the electrical and optic fibre connectors.

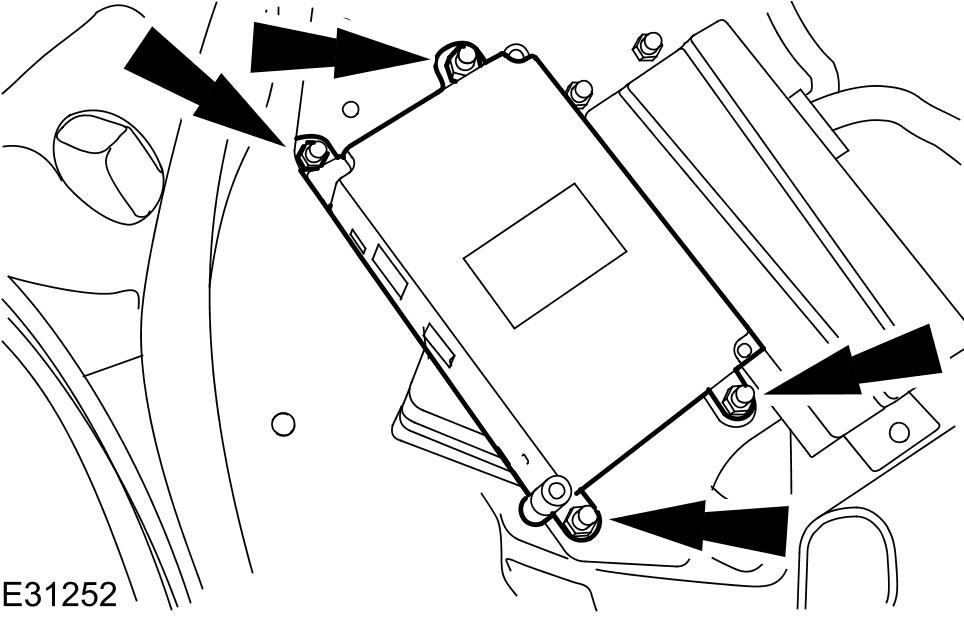

    GJ0004661Courtesy of JAGUAR CARS, INC.
  8. Remove the module.
