Bluetooth Module - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

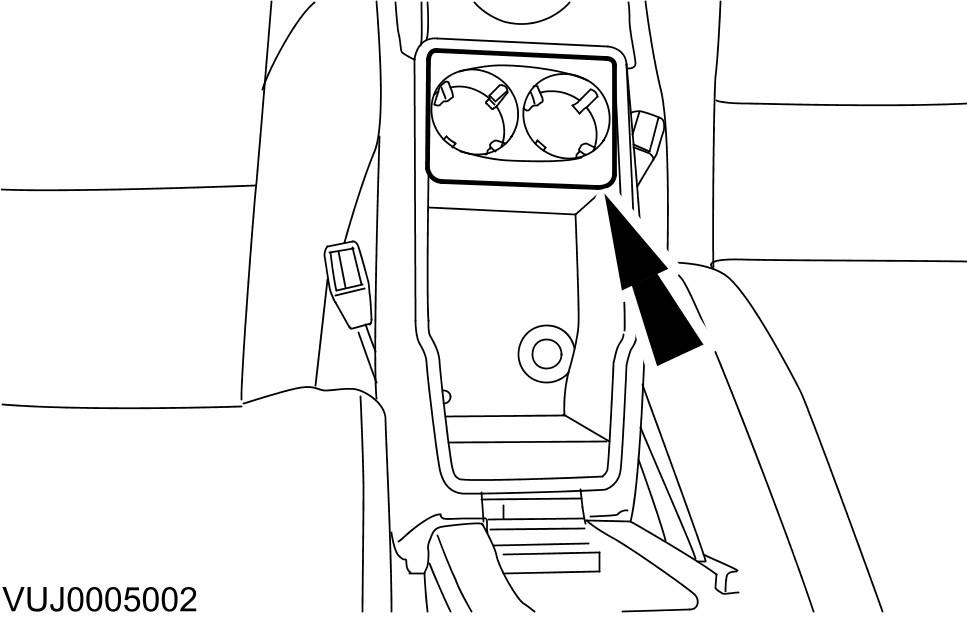

GJ0003961Courtesy of JAGUAR CARS, INC.
  1. Remove the floor console cup holder.

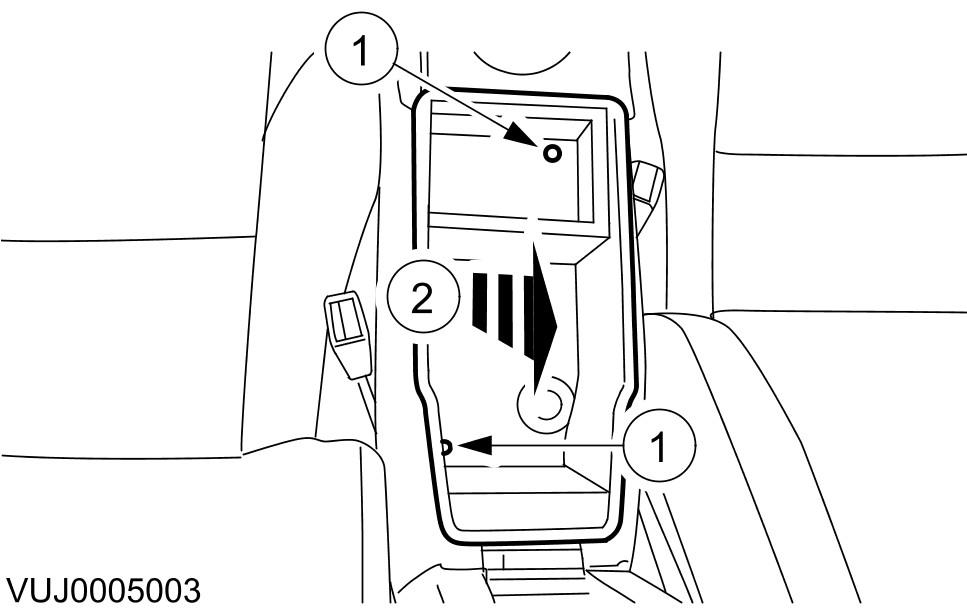

    GJ0003962Courtesy of JAGUAR CARS, INC.
    2. NOTE: Disconnect the auxiliary power point electrical connector if equipped.
  2. Remove the floor console stowage compartment.
    1. Remove the floor console stowage compartment retaining screws.
    2. Remove the floor console stowage compartment.

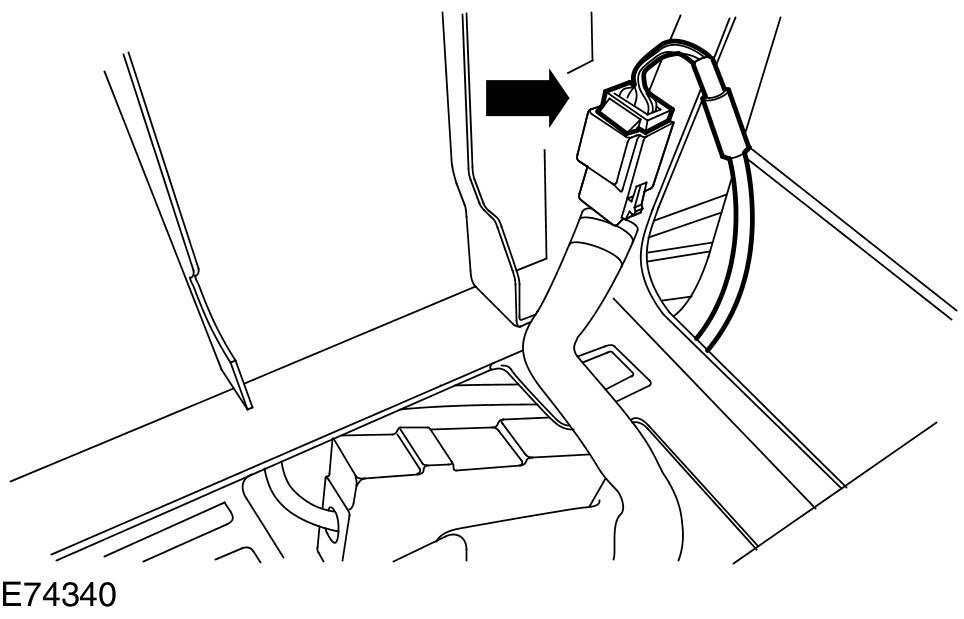

    GJ0003963Courtesy of JAGUAR CARS, INC.
  3. Disconnect the Bluetooth module electrical connector.

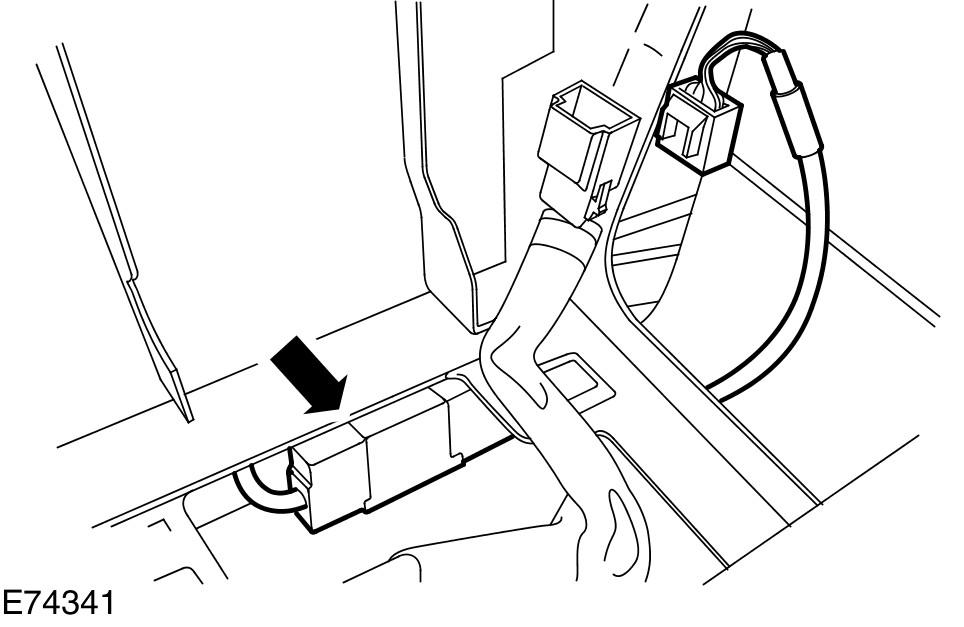

    GJ0005772Courtesy of JAGUAR CARS, INC.
  4. Remove the Bluetooth module.
