Recirculation Blend Door Actuator - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove compartment. Refer to Instrument Panel and Console .

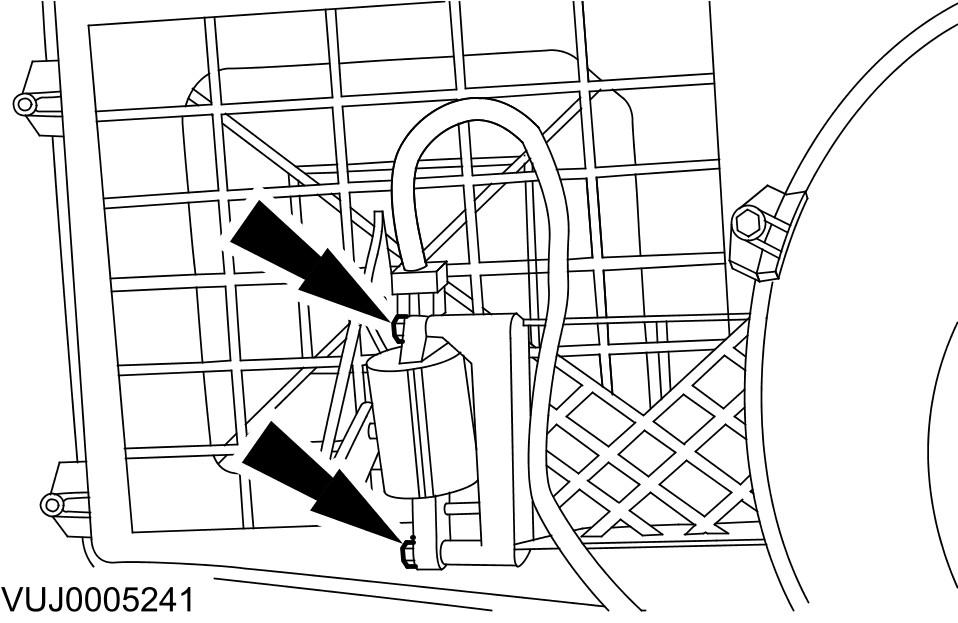

    GJ0003190Courtesy of JAGUAR CARS, INC.
  2. Remove the recirculation blend door actuator retaining bolts.

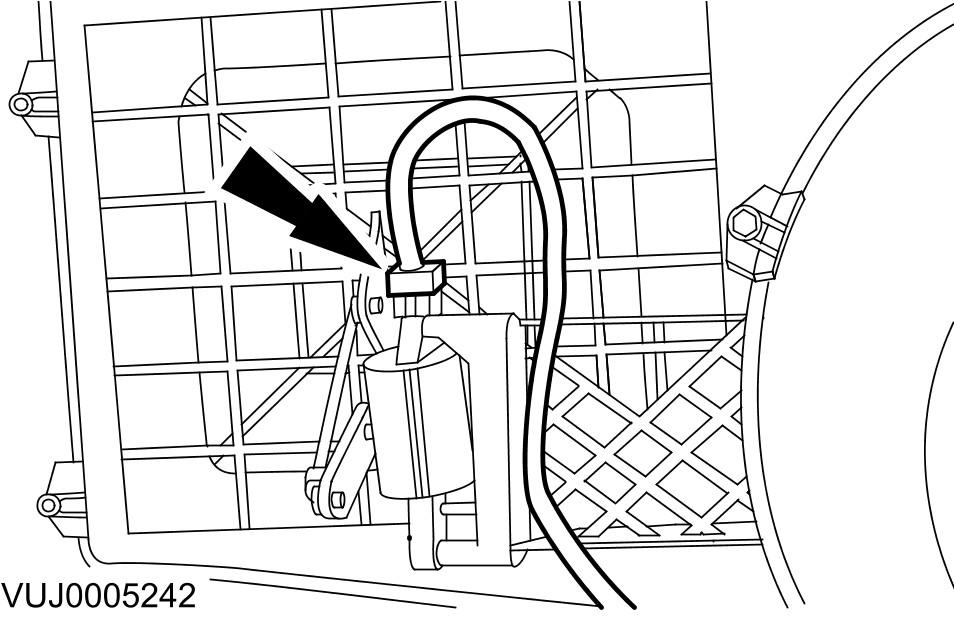

    GJ0003191Courtesy of JAGUAR CARS, INC.
  3. Disconnect the recirculation blend door actuator electrical connector.

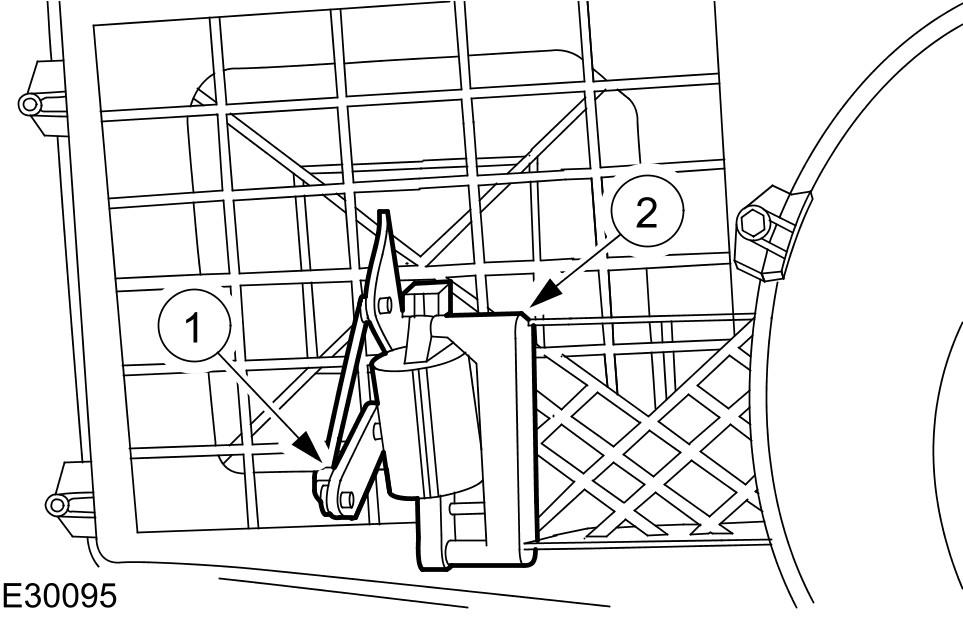

    GJ0003192Courtesy of JAGUAR CARS, INC.
  4. Remove the recirculation blend door actuator.
    1. Disconnect the control rod.
    2. Remove the recirculation blend door actuator.
